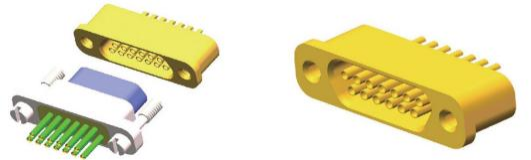

J30JM1-15ZKH2-Q1 15Pin Glass-to-Metal Hermetically Sealed Micro Rectangular Connector Socket
J30JM1-15ZKH2-Q1 15Pin Glass-to-Metal Hermetically Sealed Micro Rectangular Connector Socket
J30JM1-15ZKH2-Q1 15Pin Glass-to-Metal Hermetically Sealed Micro Rectangular Connector Socket
J30JM1-15ZKH2-Q1 15Pin Glass-to-Metal Hermetically Sealed Micro Rectangular Connector Socket
J30JM1-15ZKH2-Q1 15Pin Glass-to-Metal Hermetically Sealed Micro Rectangular Connector Socket
J30JM1-15ZKH2-Q1 15Pin Glass-to-Metal Hermetically Sealed Micro Rectangular Connector Socket
Specifications
Certification :
AS9001
Payment Terms :
L/C,T/T,Western Union
Rated current :
3A
Relative humidity :
95% at +40°C
Vibrate :
10-2000Hz 196m/s2
Mechanical life :
500 times
Insulation resistance :
≥ 5000MΩ@100VDC
Ambient temperature :
-55℃~+125℃
Media dielectric voltage :
300V
Brand Name :
Jovelix
Model Number :
J30JM1-15ZKH2-Q1
Price :
10$-500$
Supply Ability :
10000pcs per month
Place of Origin :
China
MOQ :
10pcs
Delivery Time :
2-9weeks
Packaging Details :
standard export package
Accelerated speed :
735m/s²
Contact resistance :
≤ 15mΩ
Impact :
735m/s²
Description

Glass-Sintered Gas-Sealed Rectangular Electrical Connector

J30JM1 Hermetic Series Micro-Rectangular Electrical Connectors

J30JM1-15ZKH2-Q1 15Pin Glass-to-Metal Hermetically Sealed Micro Rectangular Connector Socket

Product Features

  • The product socket is a gas-sealed socket with a glass medium material and a contact spacing of 1.27 mm; the entire socket is gold-plated.
  • Number of cores: available in nine specifications - 5, 9, 11, 13, 15, 21, 25, 31, and 37 cores.
  • The accompanying plug employs a stranded elastic pin (twisted pin), ensuring smooth insertion and removal.
  • The cross-sectional area of the wire core in the plug section is 0.1 mm² – 0.15 mm².
  • The product socket has excellent air tightness, with air leakage rate of 1.0*10⁻³ Pa.cm³/s.
  • It features small size and excellent vibration and shock resistance.
  • The main technical specifications of the product comply with the requirements of GJB2446.
  • Executive Standard: GJB2446A
