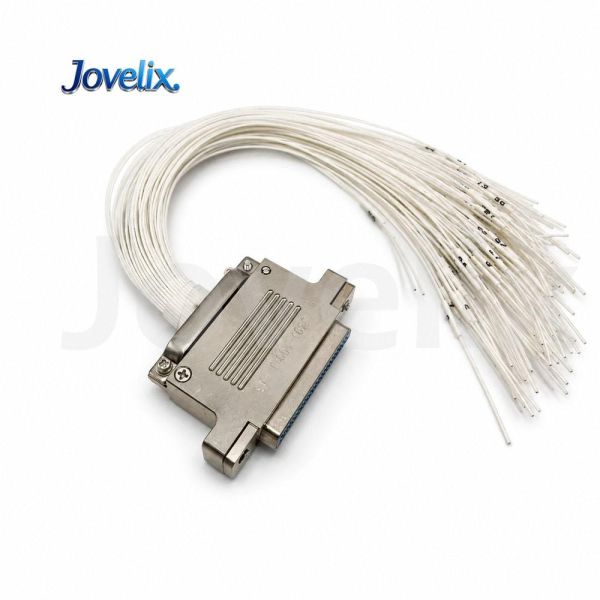

J30J-100TJL-A3 J30J Series Micro-D Rectangular Connector 100 Pin Electrical Plug Connector A3 Type
J30J-100TJL-A3 J30J Series Micro-D Rectangular Connector 100 Pin Electrical Plug Connector A3 Type
J30J-100TJL-A3 J30J Series Micro-D Rectangular Connector 100 Pin Electrical Plug Connector A3 Type
J30J-100TJL-A3 J30J Series Micro-D Rectangular Connector 100 Pin Electrical Plug Connector A3 Type
J30J-100TJL-A3 J30J Series Micro-D Rectangular Connector 100 Pin Electrical Plug Connector A3 Type
J30J-100TJL-A3 J30J Series Micro-D Rectangular Connector 100 Pin Electrical Plug Connector A3 Type
Specifications
MOQ :
10pcs
Operating temperature :
55 ℃ to +125 ℃
Brand Name :
Jovelix
Certification :
AS9001
Acceleration :
735 m/s
Contact resistance :
≤ 10mQ
Model Number :
J30J-100TJL-A3
Place of Origin :
China
Packaging Details :
standard export package
Rated current :
3 A
Insulation resistance :
≥ 5000 MΩ (normal); ≥ 100 MΩ (damp heat)
Shock :
735 m/s², 11 ms
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000pcs per month
Withstand voltage :
800 V
Recommended torques for locking screws :
Tightening torque: 0.25–0.3 N·m; Mounting torque: 0.35–0.4 N·m
Delivery Time :
2-9weeks
Price :
10$-500$
Vibration :
10–2000 Hz, acceleration 196 m/s
Mechanical life :
2000 cycles
Description
J30J Series Micro Rectangular Connector Product Description

J30J series micro rectangular connectors are high-density, miniaturized electrical connectors designed for reliable circuit interconnection in compact electronic equipment. The product is developed according to GJB2446A requirements and is comparable to the MDM type micro rectangular connector structure.

This series uses elastic stranded pin contacts, commonly known as twist pin contacts, which provide stable contact performance, reliable mating, and good electrical continuity. With a compact contact arrangement, the connector offers high contact density in a very small installation space. The transverse pitch is 1.27 mm, and the row spacing is 1.1 mm, making it suitable for equipment requiring lightweight design and space-saving connection solutions.

The connector is designed with a metal shielding shell to improve protection and signal stability. A metal rear cover can also be selected according to cable assembly and installation requirements. Multiple contact arrangements are available, including 9, 15, 21, 25, 31, 37, 51, 66, 74, 100, and 144 contacts, providing flexible choices for different circuit densities and system layouts.

J30J connectors support various interconnection methods, including cable-to-cable, cable-to-PCB, and PCB-to-PCB connections. Board-mount versions can be supplied with modified tail structures to match different PCB hole spacing requirements. In addition, various mounting accessories are available to support different installation structures and assembly methods.

The J30J series is suitable for applications requiring high density, low weight, compact size, and dependable electrical performance. It can withstand demanding working conditions such as vibration and impact, making it especially suitable for electronic systems with strict requirements for installation space, equipment weight, and connection reliability.

Considering electrical performance, contact density, structural adaptability, and cost efficiency, the J30J series provides a well-balanced solution for compact rectangular electrical connector applications.

Contact Arrangement (view from mating face of pin insulator)
J30J-100TJL-A3 J30J Series Micro-D Rectangular Connector 100 Pin Electrical Plug Connector A3 Type
J30J Series Plug and Receptacle Classification Table
Plug/Receptacle TypeBasic DesignationStructural FeaturesRemarksPage No.
Crimp TypeBasic TypePlug J30J-TJ
Receptacle J30J-ZK		Metal shell,wire crimp termination,straight cable outletLocking component types may be selected according to specific requirements
Modified TypePlug J30J-TJ-A
Receptacle J30J-ZK-A		Compared with J30J-ZK/TJ products,a straight cable clamp is added at the rear of the product, and the cable is covered with a metal protective sleeve
Plug J30J-TJ-C
Receptacle J30J-ZK-C		Compared with J30J-ZK/TJ products,the wire exits at a 90°angle
Plug J30J-TJ-C1
Receptacle J30J-ZK-C1		On the basis of the original J30J series crimp-wire products,an angled cable clamp is added, the wire bundle is covered with a metal protective sleeve,and there is one cable outlet on the same side
Plug J30J-TJ-C2
Receptacle J30J-ZK-C2		Compared with J30J-ZK-C1/TJ-C1 products,the outlet direction is opposite;all other features are the same
Plug J30J-TJ-C3
Receptacle J30J-ZK-C3		On the basis of the original J30J series crimp-wire products,an angled cable clamp is added, the wire bundle is covered with a metal protective sleeve,and there are two cable outlets on the same side
Plug J30J-TJ-C4
Receptacle J30J-ZK-C4		On the basis of the original J30J series crimp-wire products,an angled cable clamp rear cover is added,and there are cable outlets on both sides
Plug J30J-TJ-D
Receptacle J30J-ZK-D		Compared with J30J-ZK/TJ products,an anti-rotation slot is added to the square flange
Plug J30J-TJ-AD
Receptacle J30J-ZK-AD		Compared with J30J-ZK/TJ-A products,anti-slip grooves are added on the side of the shell,and an anti-rotation slot is added to the square flange
Plug J30J-TJ-Q
Receptacle J30J-ZK-Q		Compared with J30J-ZK/TJ products,the shell square flange and mounting dimensions are enlarged to the corresponding dimensions
Plug J30J-TJ-Q8
Receptacle J30J-ZK-Q8		Compared with J30J-ZK/TJ products,the shell square flange and mounting dimensions are enlarged to the corresponding dimensions
Plug J30J-TJ-AQ8
Receptacle J30J-ZK-AQ8		Compared with J30J-ZK-A/TJ-A products,the shell square flange and mounting dimensions are enlarged to the corresponding dimensions
Solder TypePlug J30J-TJS
Receptacle J30J-ZKS		Compared with J30J-ZK/TJproducts,the contact termination form is solder cup type
Straight PCB TypePlug J30J-TJN
Receptacle J30J-ZKN		The contact termination form is changed to straight PCB type,with PCB grid spacing 2.54*2.54,recommended PCB thickness (1.6-2.5 mm)
Plug J30J-TJN-J
Receptacle J30J-ZKN-J		The contact termination form is changed to straight PCB type,with PCB grid spacing 1.27*2.54,recommended PCB thickness (1.6-2.5 mm)
Plug J30J-TJN(X)
Receptacle J30J-ZKN(X)		Compared with J30J-ZKN/TJN,the pin length is increased,recommended PCB thickness(1.6-3.5 mm)

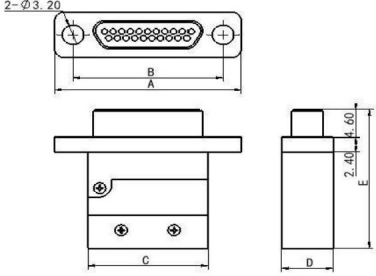

Plug:J30J-9,15,21,25,31,37,51,66,74,100,144TJ-A

J30J-100TJL-A3 J30J Series Micro-D Rectangular Connector 100 Pin Electrical Plug Connector A3 Type
Plug ModelABCDE
J30J-9TJ-A19.614.39.9823
J30J-15TJ-A23.518.213.8823
J30J-21TJ-A27.42217.6823
J30J-25TJ-A29.824.520.2823
J30J-31TJ-A33.628.324823
J30J-37TJ-A37.432.227.8823
J30J-51TJ-A36.430.8626.6923
J30J-66TJ-A42.937.333923
J30J-74TJ-A38.833.529.11125
J30J-100TJ-A54.745.736.81125
J30J-144TJ-A66.658.650.81125
