J30JM1-21ZKH2-Q1 J30JM1 Series Micro Rectangular Connector 21 Contact
J30JM1-21ZKH2-Q1 J30JM1 Series Micro Rectangular Connector 21 Contact
J30JM1-21ZKH2-Q1 J30JM1 Series Micro Rectangular Connector 21 Contact
J30JM1-21ZKH2-Q1 J30JM1 Series Micro Rectangular Connector 21 Contact
J30JM1-21ZKH2-Q1 J30JM1 Series Micro Rectangular Connector 21 Contact
J30JM1-21ZKH2-Q1 J30JM1 Series Micro Rectangular Connector 21 Contact
Specifications
Brand Name :
Jovelix
MOQ :
10pcs
Price :
10$-500$
Delivery Time :
2-9weeks
Packaging Details :
standard export package
Model Number :
J30JM1-21ZKH2-Q1
Place of Origin :
China
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000pcs per month
Media dielectric voltage :
300V
Rated current :
3A
Insulation resistance :
≥ 5000MΩ@100VDC
Ambient temperature :
-55℃~+125℃
Impact :
735m/s²
Mechanical life :
500 times
Relative humidity :
95% at +40°C
Certification :
AS9001
Contact resistance :
≤ 15mΩ
Accelerated speed :
735m/s²
Vibrate :
10-2000Hz 196m/s2
Description

Glass-Sintered Gas-Sealed Rectangular Electrical Connector

J30JM1 Hermetic Series Micro-Rectangular Electrical Connectors

J30JM1-21ZKH2-Q1 J30JM1 Series Micro Rectangular Connector 21 Contact

Product Features

This gas-sealed micro rectangular electrical connector is developed for applications requiring miniaturization, airtight sealing, reliable electrical contact, and strong resistance to vibration and shock. The socket uses a glass medium sealing structure and a fine 1.27 mm contact pitch, helping achieve stable electrical performance in compact and high-density system layouts. Full gold plating on the socket improves electrical conductivity and provides enhanced surface protection for long-term use.

The product offers 5-core, 9-core, 11-core, 13-core, 15-core, 21-core, 25-core, 31-core, and 37-core options, making it suitable for different signal connection and installation requirements. The matched plug adopts twisted-pin contact technology, which provides smooth mating and unmating performance while improving connection reliability during repeated operation.

The wire core cross-sectional area of the plug section ranges from 0.1 mm² to 0.15 mm², supporting compact cable assemblies and precision wiring applications. With excellent airtightness and an air leakage rate of 1.0 * 10⁻³ Pa·cm³/s, this connector is ideal for sealed modules, precision instruments, aerospace electronics, control systems, and other high-reliability equipment requiring compact size and dependable performance.

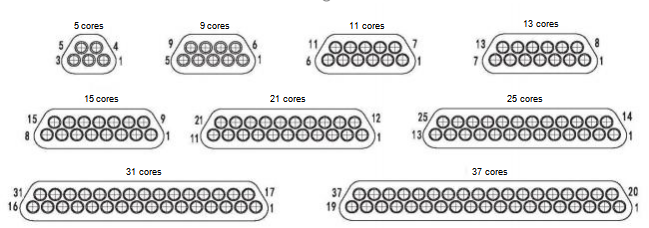

Arrangement of Contact Layout (Viewed from the mating end of socket)

J30JM1-21ZKH2-Q1 J30JM1 Series Micro Rectangular Connector 21 Contact
