J30J-21ZKL Rectangular Micro Connector 21 Pin Precision Socket Connector
J30J-21ZKL Rectangular Micro Connector 21 Pin Precision Socket Connector
J30J-21ZKL Rectangular Micro Connector 21 Pin Precision Socket Connector
J30J-21ZKL Rectangular Micro Connector 21 Pin Precision Socket Connector
J30J-21ZKL Rectangular Micro Connector 21 Pin Precision Socket Connector
J30J-21ZKL Rectangular Micro Connector 21 Pin Precision Socket Connector
Specifications
Supply Ability :
10000pcs per month
Acceleration :
735 m/s²
Shock :
735 m/s², 11 ms
Place of Origin :
China
Brand Name :
Jovelix
Mounting torque :
0.35 –0.4 N·m
Model Number :
J30J-21ZKL
MOQ :
10pcs
Certification :
AS9001
Contact resistance :
≤ 10mQ
Operating temperature :
-55℃ +125℃
Price :
10$-500$
Tightening torque :
0.25 –0.3 N·m;
Payment Terms :
L/C,T/T,Western Union
Delivery Time :
2-9weeks
Packaging Details :
standard export package
Insulation resistance :
≥ 5000 MΩ (normal); ≥ 100 MΩ (damp heat)
Vibration :
10 –2000 Hz, acceleration 196 m/s²
Mechanical life :
2000 cycles
Rated current :
3 A
Withstand voltage :
800 V
Description
J30J series
Micro Rectangular Electrical Connector
Product Introduction
  • Compliant with GJB2446A (equivalent to MIL-C-83513), corresponding to the U.S. MDM series
  • Contacts adopt elastic stranded pins (commonly called twist pins).
  • High contact density: transverse pitch 1.27 mm, row spacing 1.1 mm.
  • Metal shielding shell, optional metal rear cover.
  • 11 specifications: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100, 144 pins.
  • Board-mount types have tail modifications for PCB hole spacing.
  • Flexible mounting with various accessories for different structures.
Product Features
Functions and Applications:
  • High-density, lightweight, miniaturized for reliable interconnection: Cable to cable; Cable to PCB; PCB to PCB.
Operating Environment:
  • This product can withstand harsh environments such as strong vibrations and impacts, and is particularly suitable for application scenarios with strict requirements on installation space and equipment lightweighting.

Considering electrical performance, contact density, adaptability, cost and other factors, the J30J series is currently the best and most well_balanced rectangular electrical connector in overall performance.

Contact Arrangement (view from mating face of pin insulator)
J30J-21ZKL Rectangular Micro Connector 21 Pin Precision Socket Connector
J30J-ZK Series Products
J30J-21ZKL Rectangular Micro Connector 21 Pin Precision Socket Connector


J30J-21ZK

Receptacle

J30J-9ZK,15ZK,21ZK,25ZK,31ZK,37ZK,51ZK,66ZK,74ZK,100ZK,144ZK

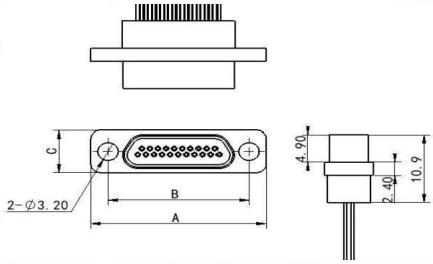

J30J-21ZKL Rectangular Micro Connector 21 Pin Precision Socket Connector

Receptacle Model A B C
J30J-9ZK 19.6 14.3 7.6
J30J-15ZK 23.5 18.2 7.6
J30J-21ZK 27.4 22 7.6
J30J-25ZK 29.8 24.5 7.6
J30J-31ZK 33.6 28.3 7.6
J30J-37ZK 37.4 32.2 7.6
J30J-51ZK 36.4 30.86 8.7
J30J-66ZK 42.9 37.3 8.7
J30J-74ZK 38.8 33.5 9.7
J30J-100ZK 54.7 45.7 9.7
J30J-144ZK 66.6 58.6 9.7
