J30J-37ZKW-J Rectangular Connector Socket 37 Core Locking Industrial Connector
J30J-37ZKW-J Rectangular Connector Socket 37 Core Locking Industrial Connector
J30J-37ZKW-J Rectangular Connector Socket 37 Core Locking Industrial Connector
J30J-37ZKW-J Rectangular Connector Socket 37 Core Locking Industrial Connector
J30J-37ZKW-J Rectangular Connector Socket 37 Core Locking Industrial Connector
J30J-37ZKW-J Rectangular Connector Socket 37 Core Locking Industrial Connector
J30J-37ZKW-J Rectangular Connector Socket 37 Core Locking Industrial Connector
J30J-37ZKW-J Rectangular Connector Socket 37 Core Locking Industrial Connector
Specifications
Delivery Time :
2-9weeks
Payment Terms :
L/C,T/T,Western Union
MOQ :
10pcs
Insulation resistance :
≥ 5000 MΩ (normal); ≥ 100 MΩ (damp heat)
Supply Ability :
10000pcs per month
Contact resistance :
≤ 10mQ
Acceleration :
735 m/s
Operating temperature :
55 ℃ to +125 ℃
Mechanical life :
2000 cycles
Price :
10$-500$
Recommended torques for locking screws :
Tightening torque: 0.25–0.3 N·m; Mounting torque: 0.35–0.4 N·m
Certification :
AS9001
Place of Origin :
China
Shock :
735 m/s², 11 ms
Packaging Details :
standard export package
Withstand voltage :
800 V
Vibration :
10–2000 Hz, acceleration 196 m/s
Brand Name :
Jovelix
Model Number :
J30J-37ZKW-J
Rated current :
3 A
Description
Product Introduction
  • Compliant with GJB2446A (equivalent to MIL-C-83513), corresponding to the U.S. MDM series
  • Contacts adopt elastic stranded pins (commonly called twist pins).
  • High contact density: transverse pitch 1.27 mm, row spacing 1.1 mm.
  • Metal shielding shell, optional metal rear cover.
  • 11 specifications: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100, 144 pins.
  • Board-mount types have tail modifications for PCB hole spacing.
  • Flexible mounting with various accessories for different structures
Product Features
Functions and Applications:
  • High-density, lightweight, miniaturized for reliable interconnection: Cable to cable; Cable to PCB; PCB to PCB.
Operating Environment:

This product can withstand harsh environments such as strong vibrations and impacts, and is particularly suitable for application scenarios with strict requirements on installation space and equipment lightweighting.

Considering electrical performance, contact density, adaptability, cost and other factors, the J30J series is currently the best and most well‑balanced rectangular electrical connector in overall performance.

Contact Arrangement (view from mating face of pin insulator)
J30J-37ZKW-J Rectangular Connector Socket 37 Core Locking Industrial Connector
J30J-37ZKW-J Rectangular Connector Socket 37 Core Locking Industrial Connector

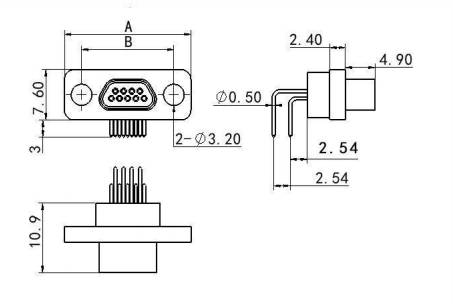

Plugs:J30J-9,15,21,25,31,37ZKW-J

J30J-37ZKW-J Rectangular Connector Socket 37 Core Locking Industrial Connector

Plug Model A B
J30J-9ZKW-J 19.6 14.3
J30J-15ZKW-J 23.5 18.2
J30J-21ZKW-J 27.4 22
J30J-25ZKW-J 29.8 24.5
J30J-31ZKW-J 33.6 28.3
J30J-37ZKW-J 37.4 32.2
