J30J-9ZKSK Rectangular Connector Socket 9 Core Industrial Connector
J30J-9ZKSK Rectangular Connector Socket 9 Core Industrial Connector
J30J-9ZKSK Rectangular Connector Socket 9 Core Industrial Connector
J30J-9ZKSK Rectangular Connector Socket 9 Core Industrial Connector
J30J-9ZKSK Rectangular Connector Socket 9 Core Industrial Connector
J30J-9ZKSK Rectangular Connector Socket 9 Core Industrial Connector
J30J-9ZKSK Rectangular Connector Socket 9 Core Industrial Connector
J30J-9ZKSK Rectangular Connector Socket 9 Core Industrial Connector
Specifications
MOQ :
10pcs
Model Number :
J30J-9ZKSK
Place of Origin :
China
Brand Name :
Jovelix
Delivery Time :
2-9weeks
Vibration :
10 –2000 Hz, acceleration 196 m/s²
Payment Terms :
L/C,T/T,Western Union
Withstand voltage :
800 V
Supply Ability :
10000pcs per month
Mechanical life :
2000 cycles
Price :
10$-500$
Contact resistance :
≤ 10mQ
Acceleration :
735 m/s²
Shock :
735 m/s², 11 ms
Packaging Details :
standard export package
Operating temperature :
55 ℃ to + 125 ℃
Insulation resistance :
≥ 5000 MΩ (normal); ≥ 100 MΩ (damp heat)
Tightening torque :
0.25 –0.3 N·m
Mounting torque :
0.35 –0.4 N·m
Certification :
AS9001
Rated current :
3 A
Description
J30J series
Micro Rectangular Electrical Connector
Product Introduction
  • Compliant with GJB2446A (equivalent to MIL-C-83513), corresponding to the U.S. MDM series
  • Contacts adopt elastic stranded pins (commonly called twist pins).
  • High contact density: transverse pitch 1.27 mm, row spacing 1.1 mm.
  • Metal shielding shell, optional metal rear cover.
  • 11 specifications: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100, 144 pins.
  • Board-mount types have tail modifications for PCB hole spacing.
  • Flexible mounting with various accessories for different structures.
Product Features
Functions and Applications:
  • High-density, lightweight, miniaturized for reliable interconnection: Cable to cable; Cable to PCB; PCB to PCB.
Operating Environment:
  • This product can withstand harsh environments such as strong vibrations and impacts, and is particularly suitable for application scenarios with strict requirements on installation space and equipment lightweighting.

Considering electrical performance, contact density, adaptability, cost and other factors, the J30J series is currently the best and most well-balanced rectangular electrical connector in overall performance.

J30J-9ZKSK Rectangular Connector Socket 9 Core Industrial Connector

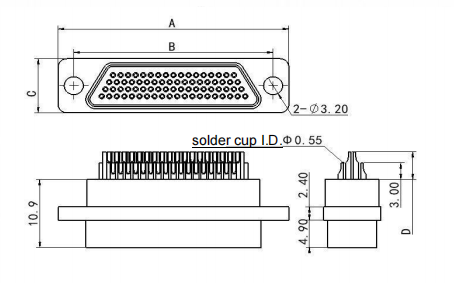

Receptacle

J30J-9,15,21,25,31,37,51,66,74,100,144ZKS

J30J-9ZKSK Rectangular Connector Socket 9 Core Industrial Connector

Receptacle Model

A

B

C

D

J30J-9ZKS

19.6

14.3

7.6

/

J30J-15ZKS

23.5

18.2

7.6

/

J30J-21ZKS

27.4

22

7.6

/

J30J-25ZKS

29.8

24.5

7.6

J30J-31ZKS

33.6

28.3

7.6

/

J30J-37ZKS

37.4

32.2

7.6

J30J-51ZKS

36.4

30.86

8.7

5

J30J-66ZKS

42.9

37.3

8.7

5

J30J-74ZKS

38.8

33.5

9.7

5

J30J-100ZKS

54.7

45.7

9.7

5

J30J-144ZKS

66.6

58.6

9.7

5
