J30J-9TJSP Connectors Rectangular Plug 9 Pin Industrial Connector
J30J-9TJSP Connectors Rectangular Plug 9 Pin Industrial Connector
J30J-9TJSP Connectors Rectangular Plug 9 Pin Industrial Connector
J30J-9TJSP Connectors Rectangular Plug 9 Pin Industrial Connector
J30J-9TJSP Connectors Rectangular Plug 9 Pin Industrial Connector
J30J-9TJSP Connectors Rectangular Plug 9 Pin Industrial Connector
J30J-9TJSP Connectors Rectangular Plug 9 Pin Industrial Connector
J30J-9TJSP Connectors Rectangular Plug 9 Pin Industrial Connector
Specifications
MOQ :
10pcs
Mounting torque :
0.35 –0.4 N·m
Place of Origin :
China
Contact resistance :
≤ 10mQ
Mechanical life :
2000 cycles
Tightening torque :
0.25 –0.3 N·m
Shock :
735 m/s², 11 ms
Acceleration :
735 m/s²
Withstand voltage :
800 V
Model Number :
J30J-9TJSP
Packaging Details :
standard export package
Vibration :
10 –2000 Hz, acceleration 196 m/s²
Supply Ability :
10000pcs per month
Delivery Time :
2-9weeks
Insulation resistance :
≥ 5000 MΩ (normal); ≥ 100 MΩ (damp heat)
Rated current :
3 A
Brand Name :
Jovelix
Payment Terms :
L/C,T/T,Western Union
Price :
10$-500$
Certification :
AS9001
Operating temperature :
55 ℃ to + 125 ℃
Description
J30J series
Micro Rectangular Electrical Connector
Product Introduction
  • Compliant with GJB2446A (equivalent to MIL-C-83513), corresponding to the U.S. MDM series
  • Contacts adopt elastic stranded pins (commonly called twist pins).
  • High contact density: transverse pitch 1.27 mm, row spacing 1.1 mm.
  • Metal shielding shell, optional metal rear cover.

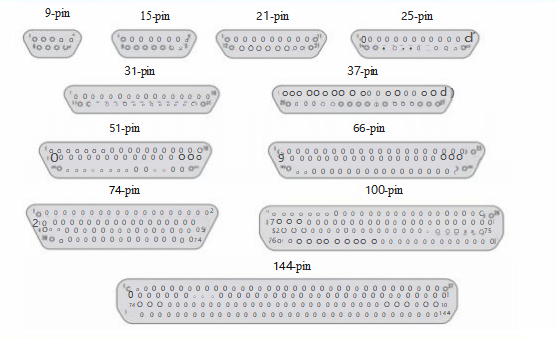

  • 11 specifications: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100, 144 pins.
  • Board-mount types have tail modifications for PCB hole spacing.
  • Flexible mounting with various accessories for different structures.
Product Features
Functions and Applications:
  • High-density, lightweight, miniaturized for reliable interconnection: Cable to cable; Cable to PCB; PCB to PCB.
Operating Environment:
  • This product can withstand harsh environments such as strong vibrations and impacts, and is particularly suitable for application scenarios with strict requirements on installation space and equipment lightweighting.

Considering electrical performance, contact density, adaptability, cost and other factors, the J30J series is currently the best and most well-balanced rectangular electrical connector in overall performance.

J30J-9TJSP Connectors Rectangular Plug 9 Pin Industrial Connector

J30J-TJS Series Products Plug

J30J-9,15,21,25,31,37,51,66,74,100,144TJS

J30J-9TJSP Connectors Rectangular Plug 9 Pin Industrial Connector

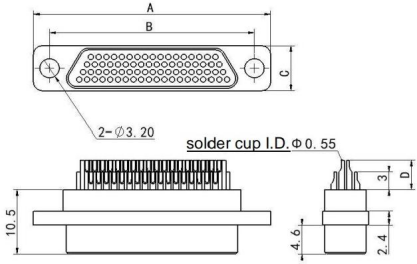

Plug Model

A

B

C

D

J30J-9TJS

19.6

14.3

7.6

/

J30J-15TJS

23.5

18.2

7.6

/

J30J-21TJS

27.4

22

7.6

/

J30J-25TJS

29.8

24.5

7.6

/

J30J-31TJS

33.6

28.3

7.6

/

J30J-37TJS

37.4

32.2

7.6

/

J30J-51TJS

36.4

30.86

8.7

5

J30J-66TJS

42.9

37.3

8.7

5

J30J-74TJS

38.8

33.5

9.7

5

J30J-100TJS

54.7

45.7

9.7

5

J30J-144TJS

66.6

58.6

9.7

5
