J30V2-15ZKW 15 Pin Micro Rectangular Female Socket Connector
J30V2-15ZKW 15 Pin Micro Rectangular Female Socket Connector
J30V2-15ZKW 15 Pin Micro Rectangular Female Socket Connector
J30V2-15ZKW 15 Pin Micro Rectangular Female Socket Connector
J30V2-15ZKW 15 Pin Micro Rectangular Female Socket Connector
J30V2-15ZKW 15 Pin Micro Rectangular Female Socket Connector
Specifications
Arandomvibration :
powerspectral densityof 0.4G/Hz,totalaccelerationrootmeansquarevalueof23.1G
Place of Origin :
China
MOQ :
10pcs
Supply Ability :
10000pcs per month
Delivery Time :
2-9weeks
Mechanical lifespan :
2000 cycles
Medium withstand voltage :
800V
Brand Name :
Jovelix
Model Number :
J30V2-15ZKW
Price :
10$-500$
Payment Terms :
L/C,T/T,Western Union
Packaging Details :
standard export package
Rated current :
3A
Certification :
AS9001
Insulation resistance :
25000 MQ
Operatingtemperature :
-55 Cto +125°C
Impac :
735 m/s² for 11 ms
Contactresistance :
≤10 mΩ
One vibration :
10-2000 HzAcceleration: 196 m/s ²
Description
J30V2 Series Micro Rectangular Electrical Connector
Brief Introduction to features
  • Number of pins: Seven specifications available-9,15,21,25,31,37, and 51 pins.
  • A stranded elastic pin (commonly known as a twisted pin) was used, with a spacing of 1.27 mm and minimal external dimensions.
  • The base materialis made of PPS, exhibiting excellent environmental resistance.
  • The cross-secional area of the conductor pin is 0.1 mm²to 0.15 mm²
  • The locking components of this product series are designed for fixed pairing.

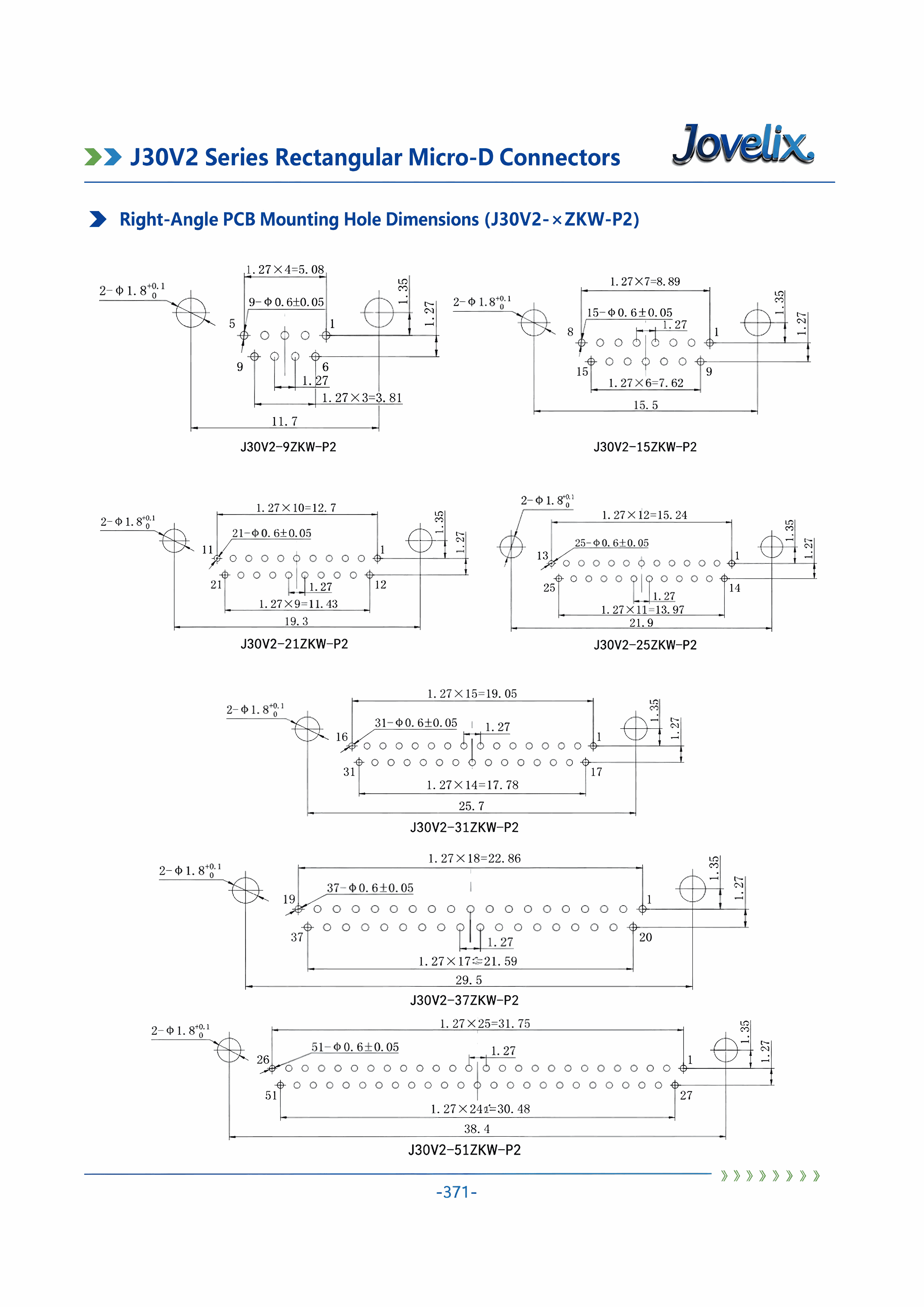

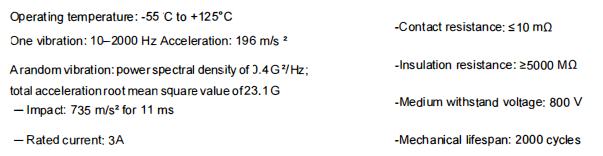

Main Technical Characteristics
J30V2-15ZKW 15 Pin Micro Rectangular Female Socket Connector

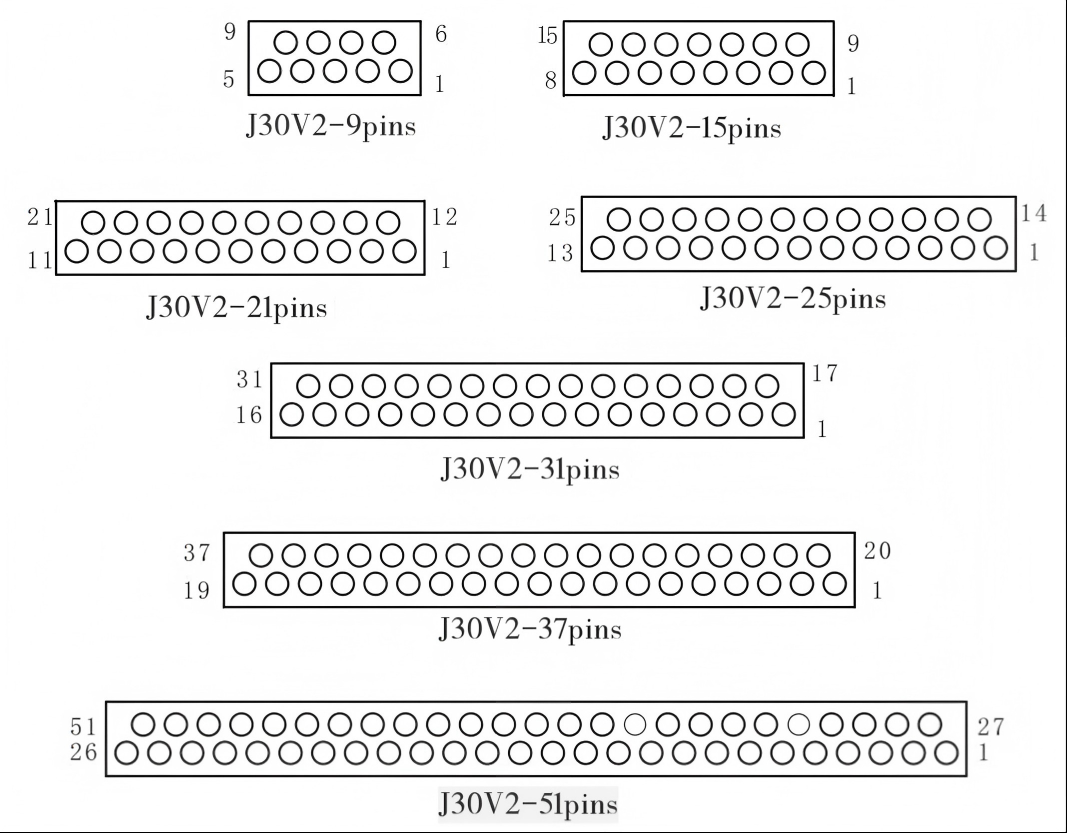

Phylogenetic Tree Arrangement
J30V2-15ZKW 15 Pin Micro Rectangular Female Socket Connector
J30V2-15ZKW 15 Pin Micro Rectangular Female Socket Connector
