J30J-51ZKP-A3 High Density Micro Rectangular Connector 51 Socket Contacts Receptacle
J30J-51ZKP-A3 High Density Micro Rectangular Connector 51 Socket Contacts Receptacle
J30J-51ZKP-A3 High Density Micro Rectangular Connector 51 Socket Contacts Receptacle
J30J-51ZKP-A3 High Density Micro Rectangular Connector 51 Socket Contacts Receptacle
J30J-51ZKP-A3 High Density Micro Rectangular Connector 51 Socket Contacts Receptacle
J30J-51ZKP-A3 High Density Micro Rectangular Connector 51 Socket Contacts Receptacle
Specifications
Contact resistance :
≤ 10mQ
Insulation resistance :
≥ 5000 MΩ (normal); ≥ 100 MΩ (damp heat)
Price :
10$-500$
Model Number :
J30J-51ZKP-A3
Packaging Details :
standard export package
Rated current :
3 A
Shock :
735 m/s², 11 ms
MOQ :
10pcs
Delivery Time :
2-9weeks
Place of Origin :
China
Recommended torques for locking screws :
Tightening torque: 0.25–0.3 N·m; Mounting torque: 0.35–0.4 N·m
Acceleration :
735 m/s
Supply Ability :
10000pcs per month
Withstand voltage :
800 V
Certification :
AS9001
Brand Name :
Jovelix
Payment Terms :
L/C,T/T,Western Union
Mechanical life :
2000 cycles
Vibration :
10–2000 Hz, acceleration 196 m/s
Operating temperature :
55 ℃ to +125 ℃
Description

The J30J series micro rectangular electrical connectors are engineered for compact electronic systems that require reliable multi-circuit interconnection within a small mounting space. The series is compliant with GJB2446A, equivalent to MIL-C-83513, and corresponds to the MDM-style micro rectangular connector platform.
This connector series uses elastic stranded pin contacts, commonly known as twist pins, to provide stable electrical contact, reliable insertion performance, and improved adaptability under vibration and shock conditions. The compact contact arrangement features a 1.27 mm transverse pitch and 1.1 mm row spacing, allowing high-density wiring while keeping the connector size small and lightweight.
The metal shielding shell improves mechanical protection and signal shielding performance. For cable termination or additional structural protection, a metal rear cover can be selected. The series includes 9, 15, 21, 25, 31, 37, 51, 66, 74, 100, and 144 contact configurations, covering a wide range of circuit connection requirements.
J30J connectors can be used for cable-to-cable, cable-to-PCB, and PCB-to-PCB interconnection. Board-mount versions can be supplied with adjusted tail designs to match different PCB hole layouts. With high contact density, compact size, lightweight structure, flexible mounting accessories, and strong resistance to vibration and impact, the J30J series is suitable for precision electronic equipment where space saving and dependable connection are essential.

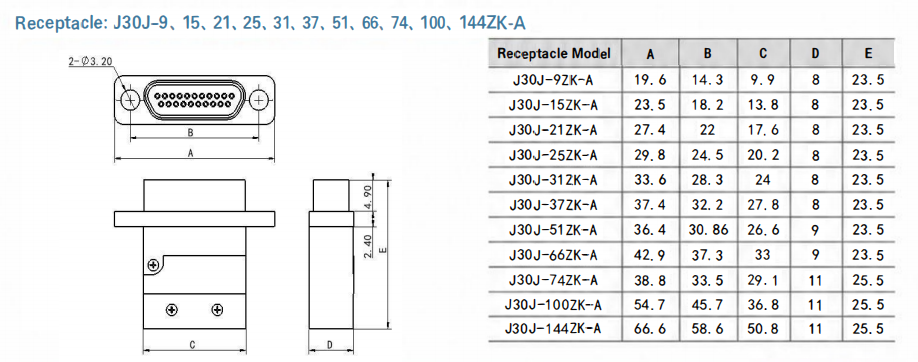

Contact Arrangement (view from mating face of pin insulator)
