J30J Series Micro Rectangular Electrical Connector

The J30J Series Micro Rectangular Electrical Connector is a high-density, lightweight, and miniaturized interconnect solution designed in accordance with GJB2446A, equivalent to MIL-C-83513, and corresponding to the U.S. MDM series. This series is developed for reliable electrical connection in compact electronic systems where installation space, weight reduction, and connection stability are critical.

The connector adopts elastic stranded pin contacts, commonly known as twist pins, providing stable contact performance and reliable electrical continuity under demanding operating conditions. With a transverse contact pitch of 1.27 mm and row spacing of 1.1 mm, the J30J Series achieves high contact density while maintaining a compact rectangular structure.

The series is available in 11 pin configurations, including 9, 15, 21, 25, 31, 37, 51, 66, 74, 100, and 144 pins, offering flexible choices for different circuit design requirements. Metal shielding shells are used to improve electromagnetic protection, and optional metal rear covers are available for enhanced structural protection and cable management.

For board-mount applications, the tail structure can be modified according to PCB hole spacing requirements. With various mounting accessories and flexible installation options, the J30J Series supports cable-to-cable, cable-to-PCB, and PCB-to-PCB interconnection. It is especially suitable for applications requiring high reliability, miniaturization, lightweight design, and stable performance under vibration and impact.

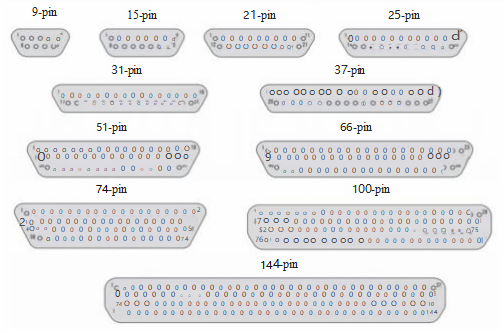

Contact Arrangement (view from mating face of pin insulator)
J30J-21TJNP5 Micro Rectangular Connectors 21 Pin Precision Plug Connector
J30J-21TJNP5 Micro Rectangular Connectors 21 Pin Precision Plug Connector

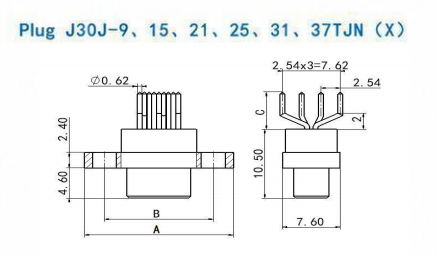

Plug Model

A

B

J30J-9TJN

19.6

14.3

J30J-15TJN

23.5

18.2

J30J-21TJN

27.4

22

J30J-25TJN

29.8

24.5

J30J-31TJN

33.6

28.3

J30J-37TJN

37.4

32.2

J30J-51TJN

36.4

30.86

J30J-66TJN

42.9

37.3
