J30-9TJWP1-J Series High Density Shielded Crimp Type Electrical Connectors
J30-9TJWP1-J Series High Density Shielded Crimp Type Electrical Connectors
J30-9TJWP1-J Series High Density Shielded Crimp Type Electrical Connectors
J30-9TJWP1-J Series High Density Shielded Crimp Type Electrical Connectors
J30-9TJWP1-J Series High Density Shielded Crimp Type Electrical Connectors
J30-9TJWP1-J Series High Density Shielded Crimp Type Electrical Connectors
Specifications
Place of Origin :
China
MOQ :
10pcs
Certification :
AS9001
Supply Ability :
10000pcs per month
Packaging Details :
standard export package
Model Number :
J30-9TJWP1-J
Withstand voltage :
800 V at room temperature
Shock :
acceleration 735 m/s², 11 ms
Delivery Time :
2-9weeks
Operating temperature :
-55℃ to +125℃
Mechanical life :
500 cycles
Payment Terms :
L/C,T/T,Western Union
Brand Name :
Jovelix
Price :
10$-500$
Relative humidity :
up to 95% at 40℃
Insulation resistance :
≥ 5000 MΩ at room temperature
Contact resistance :
≤ 10 mΩ
Vibration :
frequency 10–2000 Hz, acceleration 196 m/s²
Rated operating current :
3 A
Description
J30 Series Micro-Rectangular Electrical Connector
Product Introduction
  • Complies with GJB2446
  • Male contacts adopt elastic stranded pins (twist-pin contacts)
  • High-density contacts with a pitch of 1.27 mm
  • The product uses a plastic housing, equivalent to the U.S. MD series
  • Seven specifications available, ranging from 9 pins to 51 pins
  • Modified rear ends are available for printed circuit board (PCB) applications
Product Information
Product Application:

The product features high density, lightweight design, and miniaturization, enabling reliable interconnections between internal system cables, between cables and printed circuits boards (PCBs), and between PCBs themselves within the electrical circuit system.

Operating Environment:

The product can withstand harsh environments such as strong vibration and shock, and is especially suitable for applications with special requirements for space and equipment lightweighting.

Product Classification

The contact-to-wire connection method of the product is crimp type.

J30 Series Straight PCB Plug and Receptacle:

Classified into three types according to PCB grid spacing (column spacing * row spacing):

  • Type N: 2.54*1.6
  • Type N1: 2.54*2.54
  • Type N-J: 1.27*2.54

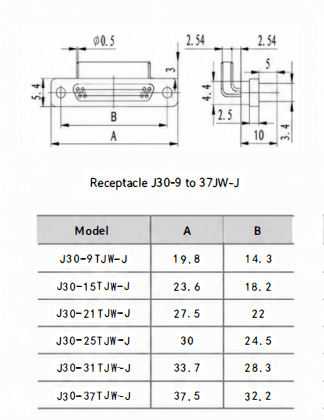

J30 Series Right-Angle PCB Plugs and Receptacles:

Classified into two types according to PCB grid spacing (column spacing * row spacing):

  • Type W: 2.54*2.54
  • Type W-J: 1.27*2.54
Main Technical Features
Operating temperature -55℃ to +125℃
Relative humidity up to 95% at 40℃
Rated operating current 3 A
Contact resistance ≤ 10 mΩ
Insulation resistance ≥ 5000 MΩ at room temperature
Withstand voltage 800 V at room temperature
Vibration frequency 10–2000 Hz, acceleration 196 m/s²
Shock

acceleration 735 m/s², 11 ms
Mechanical life 500 cycles
