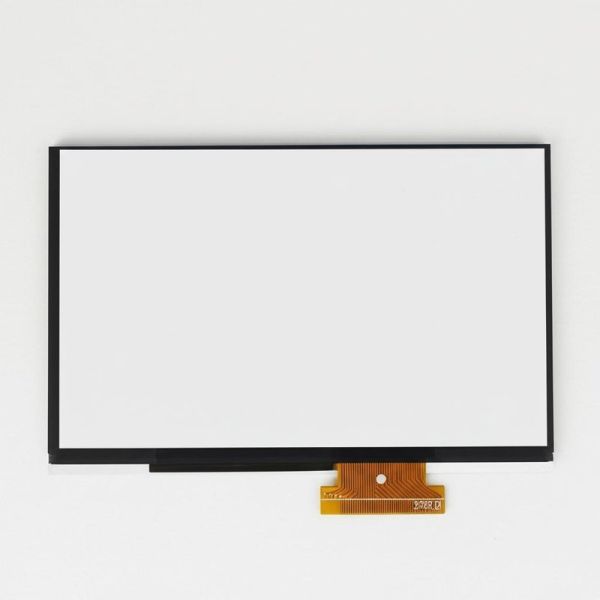

7.0 Inch TN WS TFT Industrial LCD Screen 1024x600 3.45mm Thickness Multiple Brightness
7.0 Inch TN WS TFT Industrial LCD Screen 1024x600 3.45mm Thickness Multiple Brightness
7.0 Inch TN WS TFT Industrial LCD Screen 1024x600 3.45mm Thickness Multiple Brightness
7.0 Inch TN WS TFT Industrial LCD Screen 1024x600 3.45mm Thickness Multiple Brightness
7.0 Inch TN WS TFT Industrial LCD Screen 1024x600 3.45mm Thickness Multiple Brightness
7.0 Inch TN WS TFT Industrial LCD Screen 1024x600 3.45mm Thickness Multiple Brightness
Specifications
Brand Name :
Jingtai
Model Number :
JT-7.0TNWS
Place of Origin :
Shenzhen/China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Delivery Time :
1-5 weeks
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
1-20
Key Words :
7.0 Inch TN WS
Resolution :
1024*600
Viewing Angle :
60/70/80/80
Luminance :
250cd/m²(Typ) 500cd/m²(Typ) 800cd/m²(Typ) 1000cd/m²(Typ)
Interface Definition :
MIPI
Touch Screen :
CTP
CTP Interface :
12C/USB
CTP Structure :
GFF/GG
Description
7.0 Inch TN WS TFT LCD Screen Middle Size
Product Overview

This 7.0-inch TN WS TFT LCD screen is designed for industrial control applications, offering reliable performance with a 1024×600 pixel resolution and multiple brightness options.

Technical Specifications
Feature Specification
Application Industrial Control
Number of pixels 1024×600 pixels
Active Area 154.21×82.92mm
Module Outline 164.9×100.3×3.45mm
Aspect Ratio 16:9
Display Mode Normally White
Viewing Angle (CR>10) 60/70/80/80 (Typ)
Contrast Ratio 500MIN, 600 (Typ)
NTSC 50% (Typ)
LCM Brightness 250cd/m² (Typ), 500cd/m² (Typ), 800cd/m² (Typ), 1000cd/m² (Typ)
Interface MIPI
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃
Key Features
• High-resolution 1024×600 pixel display for clear visuals
• Multiple brightness options from 250cd/m² to 1000cd/m²
• Wide operating temperature range (-20~+70℃) for industrial environments
• Compact design with 3.45mm thickness
• MIPI interface for efficient data transfer

7-Inch TFT LCD Display 1024×600 Resolution

Model No.: JT-7.0TNWS

The JT-7.0TNWS is a 7-inch TN transmissive color active matrix TFT LCD module featuring an integrated resistive touch panel with a resolution of 1024×600 dots. With its high brightness (up to 1000 nits), this LCD can be used in many various environments, especially in outdoors. The module's overall dimensions are 164.9 mm (W) × 100 mm (H) × 3.45 mm (D), with an active display area measuring 154.21 mm (W) × 85.92 mm (H).

Equipped with a MIPI interface, this TFT monitor incorporates an anti-glare display surface that effectively minimizes light reflection while maintaining optimal image clarity.

Key Specifications:

Contrast Ratio: 500:1 (typical)

Brightness: 250 nits (typical)

Supply Voltage: 3.0 V to 3.6 V (typical 3.3 V)

Operating Temperature: -20 °C to +70 °C

Storage Temperature: -30 °C to +80 °C

7.0 inch TN WS TFT 1024*600 LCD Display Product Drawing
