High-performance 6.95-inch IPS TFT LCD display designed for industrial control applications, featuring wide viewing angles and excellent contrast ratio.

About this item: JT-6.95IPSWSIPS

This 6.95-inch IPS TFT LCD display from JINGTAI Technology Ltd. features a high resolution of 600×1024, delivering clear and detailed image quality. The display incorporates an MIPI interface for fast data transmission and includes a capacitive touch panel (CTP), offering responsive touch performance and multi-touch support.

Key Features:

1. High Resolution: 600×1024 pixel resolution ensures sharp rendering of images and text.

2. IPS Technology: Provides wide viewing angles and accurate color reproduction, suitable for viewing from different positions.

3. MIPI Interface: Supports high-speed data transfer, ideal for applications requiring rapid data processing.

4. Capacitive Touch Screen: Delivers sensitive touch response and supports multi-touch functionality.

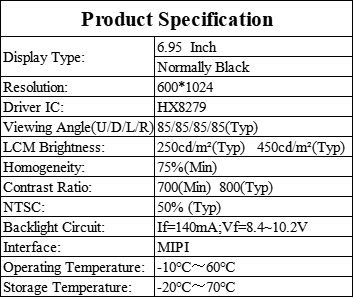

Technical Specifications:

Display Size: 6.95 inches

Resolution: 600×1024 pixels

Brightness: 250 nits

Contrast Ratio: 700 min, 800(Typ)

Viewing Angle: Wide viewing angle ensures a consistent visual experience from different perspectives.

Interface: MIPI interface, supporting high-speed data transmission.

Touch Screen: Capacitive touch screen with multi-touch support.

Application Scenarios:

Industrial Control: High resolution and capacitive touch enable precise operation and control.

Medical Equipment: Clear image display and high contrast ratio suit medical monitoring devices.

Intelligent Transportation: Suitable for in-vehicle display systems, providing clear navigation and information presentation.

POS

PDA

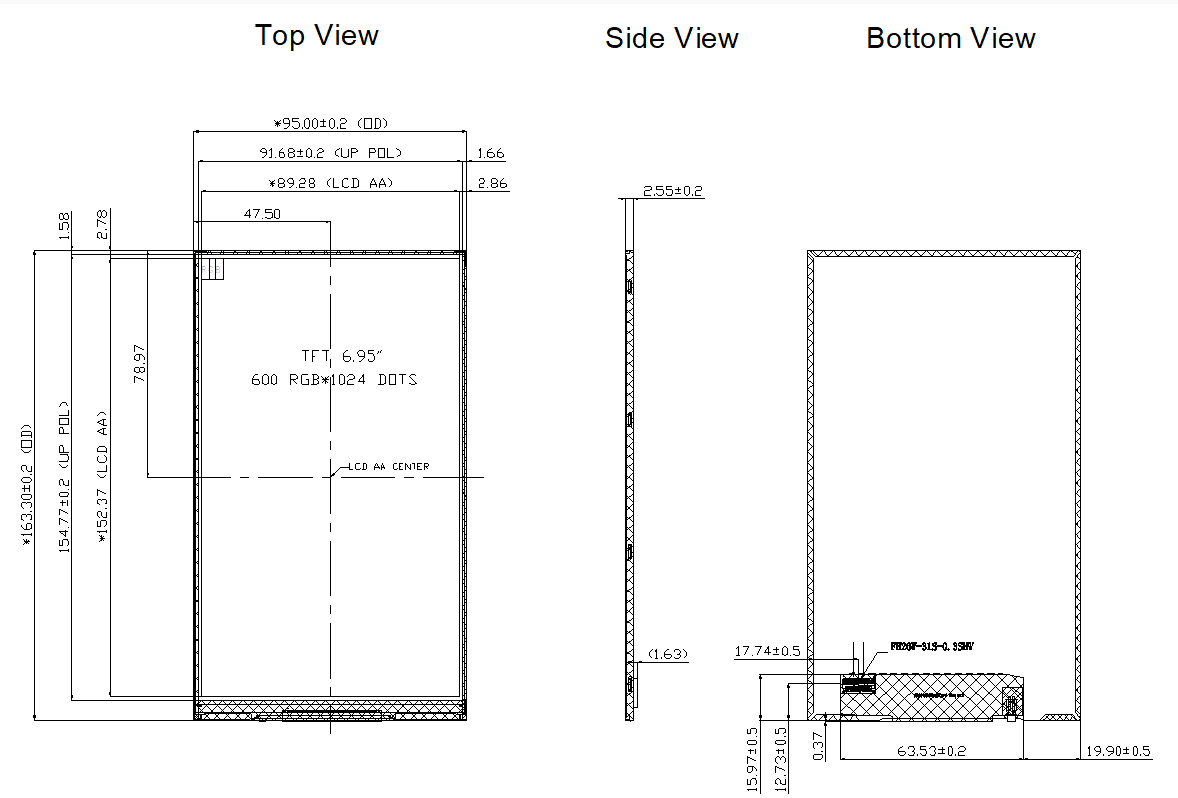

6.95 inch TFT 600*1024 LCD Display Product Drawing

Customization Services:

Brightness Adjustment: Backlight brightness can be customized according to customer requirements.

Interface Customization: Multiple interface options are available to meet different device needs.

Size Customization: Custom sizes can be provided to fit specific application requirements.

This 6.95-inch IPS TFT LCD display, with its 250-nits brightness, excellent display performance, and flexible interface options, is an ideal solution for a wide range of applications.
