800x480 Resolution TN WV TFT LCD Touch Screen 7.0 Inch Industrial Grade RGB Interface
800x480 Resolution TN WV TFT LCD Touch Screen 7.0 Inch Industrial Grade RGB Interface
800x480 Resolution TN WV TFT LCD Touch Screen 7.0 Inch Industrial Grade RGB Interface
800x480 Resolution TN WV TFT LCD Touch Screen 7.0 Inch Industrial Grade RGB Interface
800x480 Resolution TN WV TFT LCD Touch Screen 7.0 Inch Industrial Grade RGB Interface
800x480 Resolution TN WV TFT LCD Touch Screen 7.0 Inch Industrial Grade RGB Interface
Specifications
Brand Name :
Jingtai
Model Number :
JT-7.0TNWV
Place of Origin :
Shenzhen/China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/P,D/A
Delivery Time :
1-5 weeks
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
1-20
Key Words :
7.0 Inch TN WV
Resolution :
800*480
Viewing Angle :
60/70/70/70
Luminance :
250cd/m²(Typ) 500cd/m²(Typ) 800cd/m²(Typ) 1000cd/m²(Typ)
Interface Definition :
RGB
Touch Screen :
CTP
CTP Interface :
12C/USB
CTP Structure :
GFF/GG
Description
7.0 Inch TN WV TFT LCD Display Middle Size
Product Overview

This industrial-grade 7.0-inch TFT LCD display features a WVGA resolution with wide viewing angles and multiple brightness options, designed for reliable performance in industrial control applications.

Key Specifications
Specification Value
Application Industrial Control
Number of pixels 800×480 pixels
Active Area 154.06×82.92mm
Module Outline 164.8×99.8×5.7mm
Aspect Ratio 16:9
Display Mode Normally White
Viewing Angle (CR>10) 60/70/70/70 (Typ)
Contrast Ratio 500MIN, 800 (Typ)
NTSC 51% (Typ)
LCM Brightness 250cd/m² (Typ)
500cd/m² (Typ)
800cd/m² (Typ)
1000cd/m² (Typ)
Interface RGB
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃

7-Inch TFT LCD Display TN 800×480 Resolution

Model No.: JT-7.0TNWV

The JT-7.0TNWV is a 7-inch TN transmissive color active matrix TFT LCD module, integrated with a resistive touch panel and a resolution of 800 × 480 dots. The overall module dimensions measure 164.8 mm (width) × 99.8 mm (height) × 5.7 mm (depth), with an active display area of 154.08 mm (width) × 85.92 mm (height).

This TFT monitor supports a RGB interface and features an anti-glare display surface, which minimizes light reflection and ensures better image clarity.

Key specifications include a contrast ratio of 500:1 (typical) and a brightness of 250 nits (typical) (or higher, up to 1000 nits). The LCM operates from a supply voltage ranging from 3.0 V to 3.6 V, with a typical value of 3.3 V. The module is designed for operation at temperatures from -20 °C to +70 °C, and can be stored in temperatures ranging from -30 °C to +80 °C.

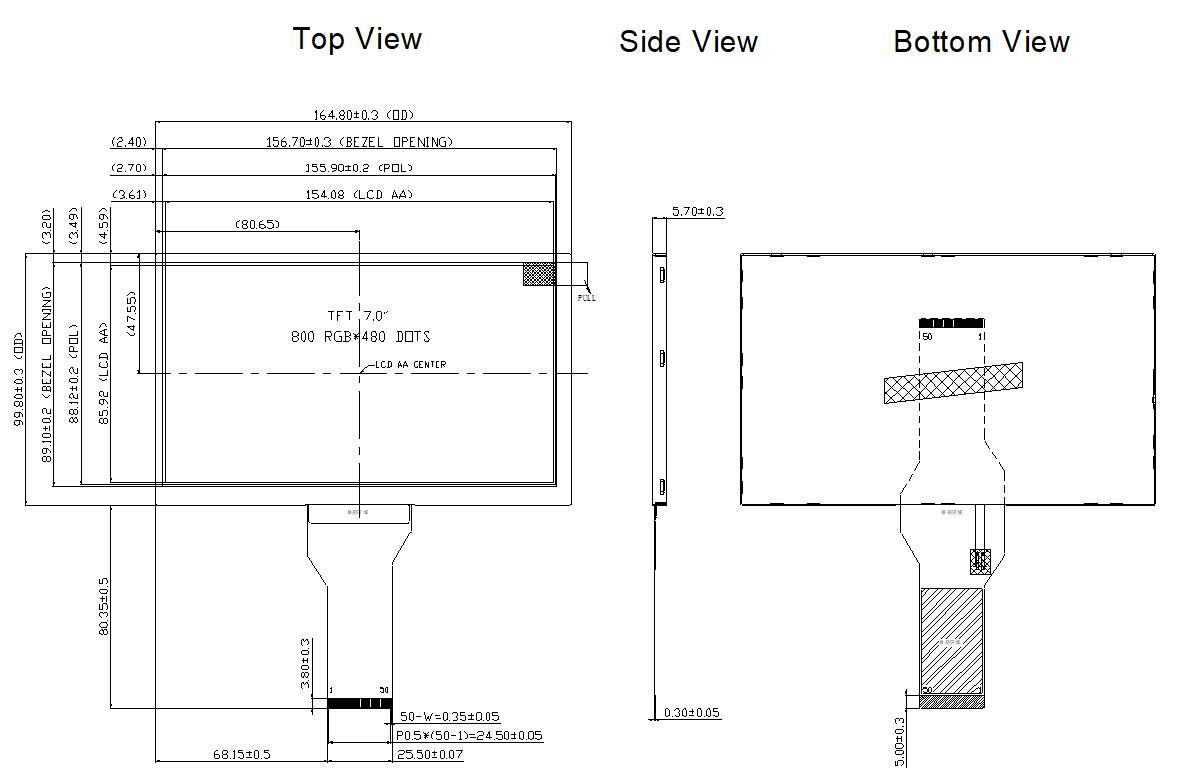

7.0 inch TN WV TFT 800*480 LCD Display Product Drawing

800x480 Resolution TN WV TFT LCD Touch Screen 7.0 Inch Industrial Grade RGB Interface

800x480 Resolution TN WV TFT LCD Touch Screen 7.0 Inch Industrial Grade RGB Interface

800x480 Resolution TN WV TFT LCD Touch Screen 7.0 Inch Industrial Grade RGB Interface
