Customized 10.1 Inch HD Industrial LCD Display IPS LCD Screen 800x1280 Pixels
Customized 10.1 Inch HD Industrial LCD Display IPS LCD Screen 800x1280 Pixels
Customized 10.1 Inch HD Industrial LCD Display IPS LCD Screen 800x1280 Pixels
Customized 10.1 Inch HD Industrial LCD Display IPS LCD Screen 800x1280 Pixels
Specifications
Brand Name :
Jingtai
Model Number :
JT-10.1IPSHD
Place of Origin :
Shenzhen/China
MOQ :
5pcs
Payment Terms :
T/T,L/C,Western Union,MoneyGram,D/A,D/P
Delivery Time :
1-5 weeks
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
1-20
Key Words :
10.1 Inch HD IPS
Resolution :
800*1280
Display Mode :
IPS Full Viewing Angle
Luminance :
300cd/m²(Typ) 600cd/m²(Typ)
Interface Definition :
MIPI
Touch Screen :
CTP
CTP Interface :
12C/USB
CTP Structure :
GFF/GG
Description
10.1 Inch HD IPS LCD Display Screen Middle Size
Product Overview

High-quality 10.1-inch HD IPS LCD display designed for industrial control applications, featuring excellent viewing angles and high contrast ratio.

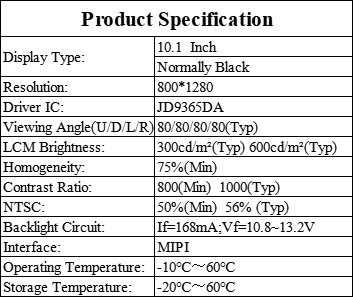

Technical Specifications
Feature Specification
Application Industrial Control
Number of pixels 800*1280 pixels
Active Area 216.58*135.36mm
Module Outline 228.66*143.06*2.7mm
Aspect Ratio 16:10
Display Mode Normally Black
Viewing Angle (CR>10) 80/80/80/80 (Typ)
Contrast Ratio 800MIN, 1000 (Typ)
NTSC 56% (Typ)
LCM Brightness 300cd/m² (Typ) 600cd/m² (Typ)
Interface MIPI
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃
Key Features
  • HD IPS Technology: Delivers superior image quality with wide viewing angles
  • Industrial-Grade: Designed for reliable performance in demanding environments
  • High Brightness: Available in 300cd/m² and 600cd/m² options
  • Wide Temperature Range: Suitable for operation in extreme conditions

Portrait 10.1-Inch HD TFT LCD Display | 800×1280 Resolution | Capacitive Touch Panel

Model: JT-10.1IPSHD

Product Overview

The JT-10.1IPSHD is a 10.1-inch industrial-grade TFT LCD display featuring IPS technology for full viewing angles and a high resolution of 800×1280 pixels. This module supports a MIPI interface and operates at a supply voltage (Vdd) of 2.3V to 3.6V, with a maximum operating voltage of 3.9V. With a luminance of 300 cd/m² and integrated capacitive touch panel, it is widely used in industrial instruments, medical devices, GPS systems, POS terminals, scanners, home automation, security systems, and various other applications.

Technical Features

Operating Temperature: -20℃ to +70℃

Storage Temperature: -30℃ to +80℃

Outline Dimensions: 228.66 mm (H) × 143.06 mm (V) × 2.7 mm (T)

Viewable Area: 216.58 mm (H) × 135.36 mm (V)

Interface: MIPI

Viewing Direction: IPS all-angle viewing

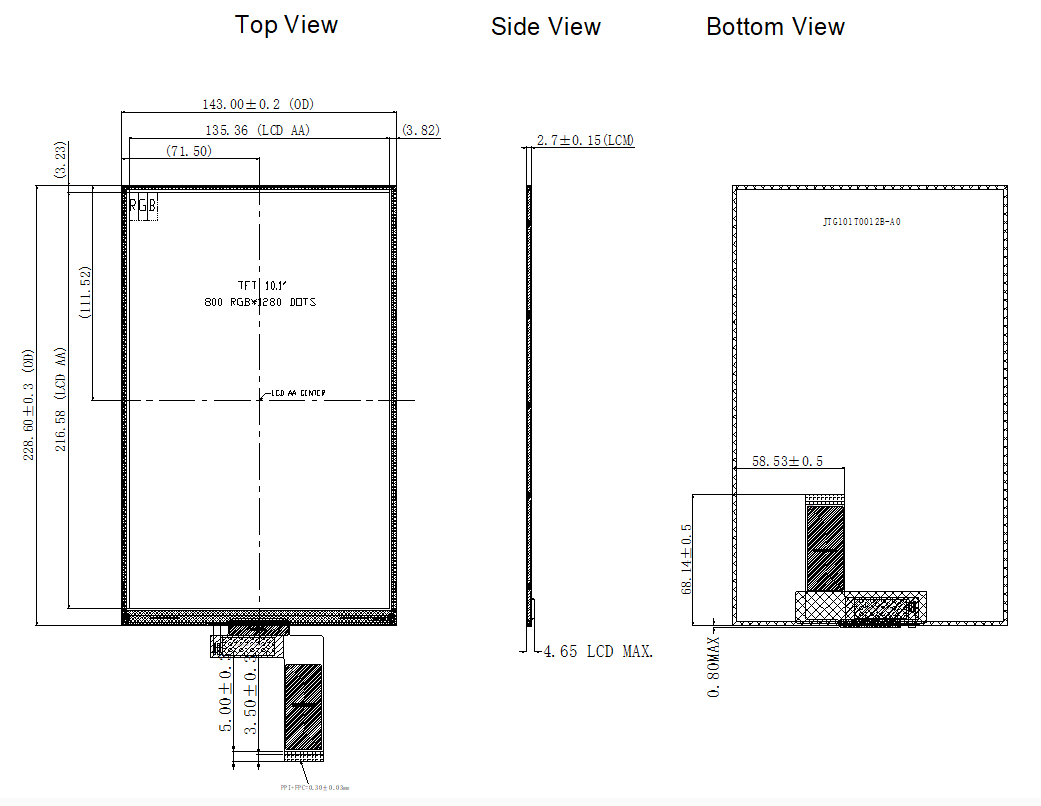

10.1 HD IPS TFT 800*1280 LCD Display Product Drawing

Customized 10.1 Inch HD Industrial LCD Display IPS LCD Screen 800x1280 Pixels

Customized 10.1 Inch HD Industrial LCD Display IPS LCD Screen 800x1280 Pixels

Customized 10.1 Inch HD Industrial LCD Display IPS LCD Screen 800x1280 Pixels
