10.1 Inch TN WS TFT Industrial LCD Display 1024x600 MIPI Interface CTP Touch Screen
10.1 Inch TN WS TFT Industrial LCD Display 1024x600 MIPI Interface CTP Touch Screen
10.1 Inch TN WS TFT Industrial LCD Display 1024x600 MIPI Interface CTP Touch Screen
10.1 Inch TN WS TFT Industrial LCD Display 1024x600 MIPI Interface CTP Touch Screen
10.1 Inch TN WS TFT Industrial LCD Display 1024x600 MIPI Interface CTP Touch Screen
10.1 Inch TN WS TFT Industrial LCD Display 1024x600 MIPI Interface CTP Touch Screen
Specifications
Brand Name :
Jingtai
Model Number :
JT-10.1TNWS
Place of Origin :
Shenzhen/China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Delivery Time :
1-5 weeks
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
1-20
Key Words :
10.1 Inch TN WS
Resolution :
1024*600
Viewing Angle :
60/70/80/80
Luminance :
250cd/m²(Typ) 500cd/m²(Typ) 800cd/m²(Typ) 1000cd/m²(Typ)
Interface Definition :
MIPI
Touch Screen :
CTP
CTP Interface :
12C/USB
CTP Structure :
GFF/GG
Description
10.1 Inch TN WS TFT LCD Display Middle Size
Product Description

High-performance TFT LCD display designed for industrial control applications, featuring excellent visibility and durability.

Technical Specifications
Application Industrial Control
Number of pixels 1024×600 pixels
Active Area 222.72×125.28mm
Module Outline 235×143×5.1mm
Aspect Ratio 16:9
Display Mode Normally White
Viewing Angle (CR>10) 60/70/80/80 (Typ)
Contrast Ratio 500MIN, 600 (Typ)
NTSC 50% (Typ)
LCM Brightness 250cd/m² (Typ) 500cd/m² (Typ) 800cd/m² (Typ) 1000cd/m² (Typ)
Interface MIPI
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃

10.1-Inch TFT LCD Display | TN 6 O’Clock Viewing Direction | 800×600 Resolution

Model: JT-10.1TNWS

Product Overview

The JT-10.1TNWS is a 10.1-inch industrial-grade TFT LCD display with TN technology and a 6:00 o’clock viewing direction. Featuring a resolution of 1024×600 pixels and supporting a MIPI interface, this module operates at a power supply voltage (Vdd) of 3.0V–3.6V (typical 3.3V). It incorporates a capacitive touch panel with optional I²C or USB interfaces, and delivers a luminance of 250 cd/m² (or higher, up to 1000 cd/m²). Designed for reliability and performance, it is widely used in industrial, medical, POS, HMI, home automation, and security applications.

Key Features & Specifications

Display Type: 10.1-inch amorphous silicon TFT (active matrix)

Viewing Direction: TN, 6:00 o’clock

Resolution: 1024×600 pixels

Interface: MIPI

Touch Panel: Capacitive touchscreen (CTP) with customizable cover glass

Touch Interface: I²C or USB (optional)

Luminance: 250 cd/m², 500 cd/m², 800 cd/m², 1000 cd/m²

Contrast Ratio: 500:1 (minimum), 600:1 (typical)

Operating Temperature: -20 ℃ to +70 ℃

Power Supply: 3.0V–3.6V (typical 3.3V)

Environmental Compliance: RoHS & Halogen-free

Additional Features: Low driving voltage, low power consumption

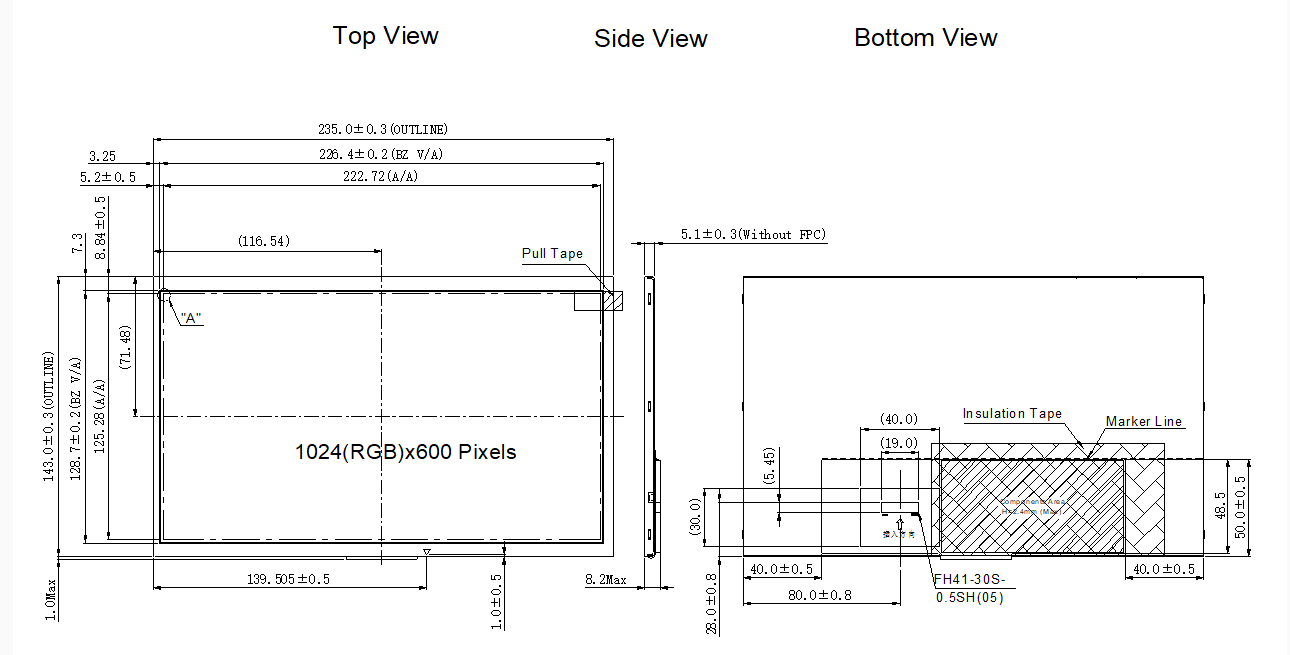

10.1 inch TN WS TFT 1024*600 LCD Display Product Drawing

10.1 Inch TN WS TFT Industrial LCD Display 1024x600 MIPI Interface CTP Touch Screen

10.1 Inch TN WS TFT Industrial LCD Display 1024x600 MIPI Interface CTP Touch Screen

10.1 Inch TN WS TFT Industrial LCD Display 1024x600 MIPI Interface CTP Touch Screen
