Custom Logo 12.1 Inch Industrial IPS TFT LCD Display 500cd/M2 Wide Viewing Angle
Custom Logo 12.1 Inch Industrial IPS TFT LCD Display 500cd/M2 Wide Viewing Angle
Custom Logo 12.1 Inch Industrial IPS TFT LCD Display 500cd/M2 Wide Viewing Angle
Custom Logo 12.1 Inch Industrial IPS TFT LCD Display 500cd/M2 Wide Viewing Angle
Custom Logo 12.1 Inch Industrial IPS TFT LCD Display 500cd/M2 Wide Viewing Angle
Custom Logo 12.1 Inch Industrial IPS TFT LCD Display 500cd/M2 Wide Viewing Angle
Specifications
Brand Name :
Jingtai
Model Number :
JT-12.1IPS
Place of Origin :
Shenzhen/China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,MoneyGram,L/C,D/A,D/P
Delivery Time :
1-5 weeks
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
1-20
Key Words :
12.1 Inch IPS TFT
Resolution :
1280*800
Display Mode :
IPS Full Viewing Angle
Luminance :
500cd/m²(Typ) 1000cd/m²(Typ)
Interface Definition :
LVDS
Touch Screen :
CTP
CTP Interface :
12C/USB
CTP Structure :
GG
Description
12.1 Inch IPS TFT LCD Display Screen 1280 Middle Size
Product Overview

High-performance 12.1-inch IPS TFT LCD display designed for industrial control applications, featuring excellent viewing angles and high brightness options.

Technical Specifications
Feature Specification
Application Industrial Control
Number of pixels 1280×800 pixels
Active Area 261.12×163.2mm
Module Outline 275.12×179.2×6.76mm
Aspect Ratio 8:5
Display Mode Normally Black
Viewing Angle (CR>10) 85/85/85/85 (Typ)
Contrast Ratio 1200 (Typ)
NTSC 72% (Typ)
LCM Brightness 500cd/m² (Typ), 1000cd/m² (Typ)
Interface LVDS
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃
Key Features
• IPS Technology for superior viewing angles
• High Brightness options (500cd/m² or 1000cd/m²)
• Wide Temperature Range for industrial environments
• LVDS Interface for reliable signal transmission

Landscape 12.1-Inch High-Brightness TFT LCD Display | 1280×800 Resolution | 1000 nits

Product Overview

Elevate your visual experience with this 12.1-inch High-Brightness IPS TFT LCD Display. Engineered for superior clarity and performance, it delivers 1000 nits of brightness for vibrant visibility even in high-ambient light conditions. The 1280×800 pixel resolution ensures sharp, detailed imagery, making it an ideal solution for industrial controls, medical equipment, outdoor signage, and automotive applications.

Key Features

1. High Brightness: 1000 nits for excellent readability in direct sunlight or brightly lit environments

2. IPS Technology: Wide viewing angles and consistent color reproduction from any perspective

3. High Resolution: 1280×800 pixels for crisp, detailed image quality

4. LVDS Interface: High-speed data transmission with broad system compatibility

5. Application Versatility: Suitable for industrial, medical, automotive, and commercial use

6. Touch Options: Capacitive touch screen

Specifications

Screen Size: 12.1 inches

Brightness: 1000 nits

Resolution: 1280×800 pixels

Interface: LVDS

Touchscreen: Capacitive (optional)

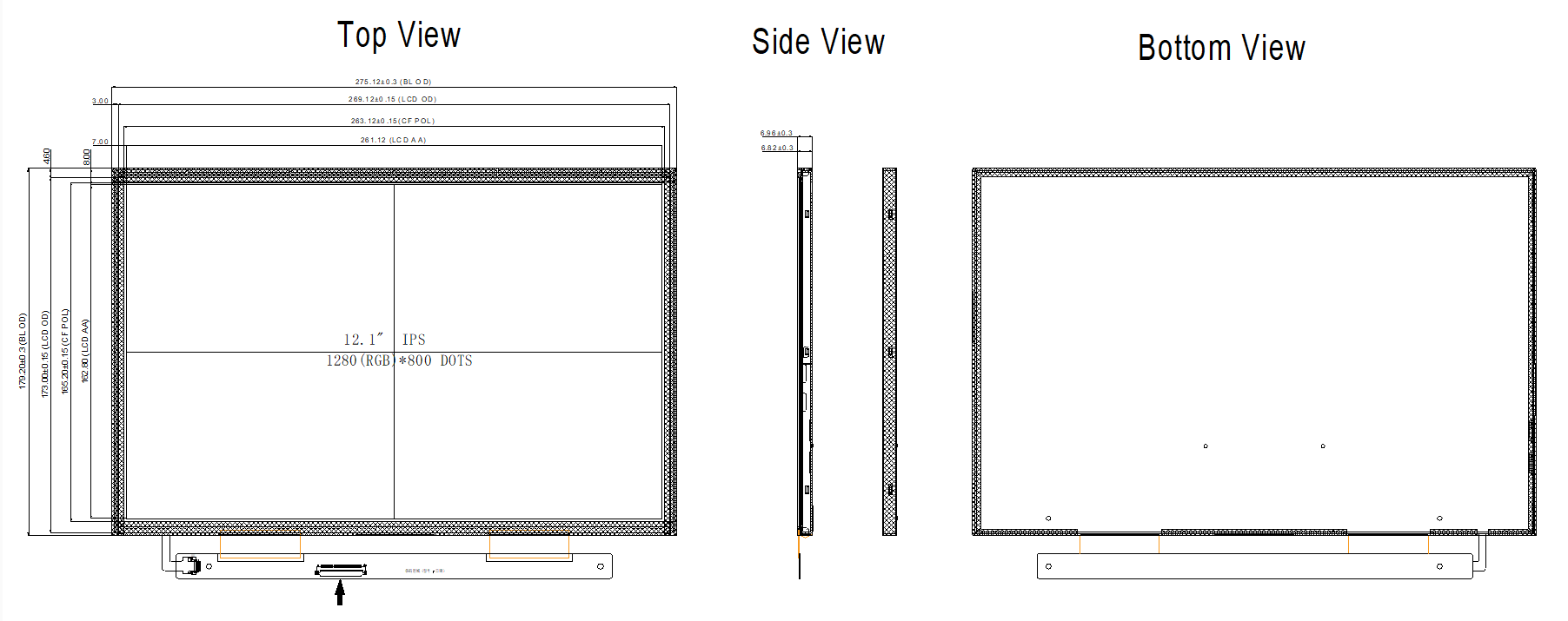

12.1 inch IPS 1280*800 TFT LCD Display Product Drawing

Custom Logo 12.1 Inch Industrial IPS TFT LCD Display 500cd/M2 Wide Viewing Angle

Custom Logo 12.1 Inch Industrial IPS TFT LCD Display 500cd/M2 Wide Viewing Angle

Custom Logo 12.1 Inch Industrial IPS TFT LCD Display 500cd/M2 Wide Viewing Angle

Custom Logo 12.1 Inch Industrial IPS TFT LCD Display 500cd/M2 Wide Viewing Angle

Conclusion

Upgrade your equipment with this High-Brightness 12.1-inch IPS TFT LCD Display for superior visibility and reliable performance. Whether integrating into advanced diagnostic systems or enhancing product displays, this screen meets demanding requirements for quality and durability in professional environments.
