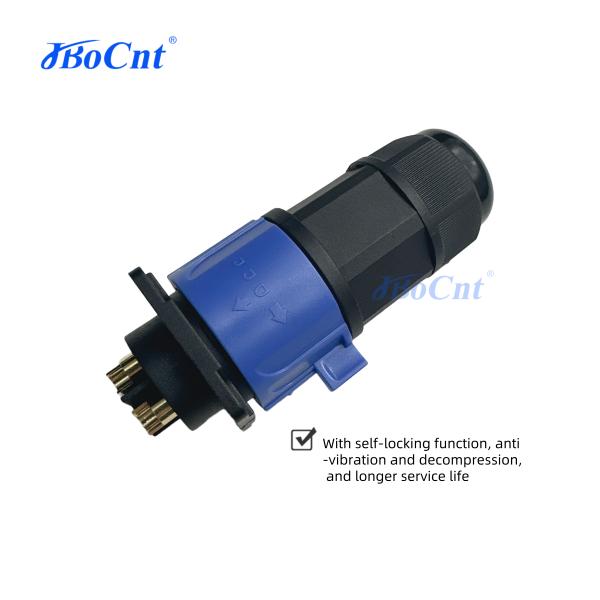

Jbocnt Group 2+4 Connector Waterproof Bicycle Battery Discharge 6 Pin For Electric Bike Push Lock Large Electric Vehicle Charger Connector

Product advantages

Product Core Advantages

Dual-channel Integrated Design
Adopting a 2+4-pin composite structure, it supports both power transmission (2-pin, 15A) and signal control (4-pin), achieving integrated transmission of power and data, significantly improving system integration.

High Safety Protection

Meets IP67 waterproof and dustproof standards, effectively resisting harsh environmental corrosion.

Built-in High Voltage Interlock (HVIL) ensures safe operation during hot plugging and unplugging.

Gold-plated brass design significantly improves conductivity and minimizes power loss.

Engineering Optimization

Snap-on push-pull mechanism enables one-handed plugging and unplugging, increasing assembly efficiency by 30%.

Multi-key error prevention design (14 mechanical coding combinations) eliminates the risk of incorrect insertion.

Passes USCAR-2 vibration test standards, with a mechanical shock resistance of 10G@2000Hz.

Typical Application Scenarios

New Energy Vehicle Low-Voltage System

Suitable for low-voltage signal exchange between the on-board charger (OBC) and the battery management system (BMS), meeting 15A auxiliary power transmission requirements.

Smart Charging Devices
Serving as the communication interface between the charging station and the vehicle, the 4-pin signal channel supports charging protocol handshakes and status monitoring.

Industrial Control Equipment
Provides power supply (2-pin) and I/O signal transmission (4-pin) for sensor modules in automated production lines, enabling integrated wiring.

Dimensional drawings (if the image is too small, please refresh the page again)

Mother seat

Male plug

OUR CUSTOMERS

FAQ

‌

1. Q: Can you help with design?

A: Yes, we are an ODM/OEM company specializing in the production and sale of connectors, wire harnesses, and cables since 2006.

2. Q: When do you start designing?

A: We'll first draw a simple plan for preliminary discussion. Once the quote and order are finalized, we'll start developing the drawings and reconfirm the design with the customer.

3. Q: What if the customer discovers a quality issue?

A: Our quality and engineering teams will proactively respond to quality issues within 2 hours. We are committed to building long-term relationships with our customers, and providing superior service is our core value.

4. Q: Do you have standard products to shorten our customers' prototyping and mold manufacturing cycles?

A: Yes, we have developed over 3,000 molds, some of which are available directly to customers. Furthermore, we have been specializing in the wire harness field for over 19 years and offer over 5,000 product variations.
