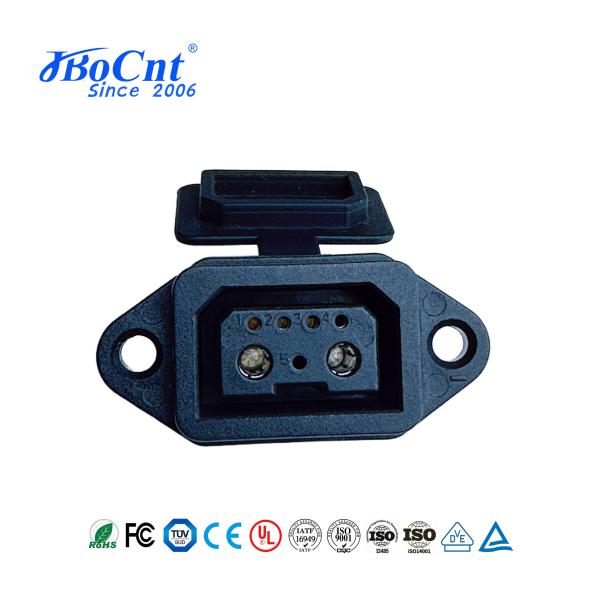

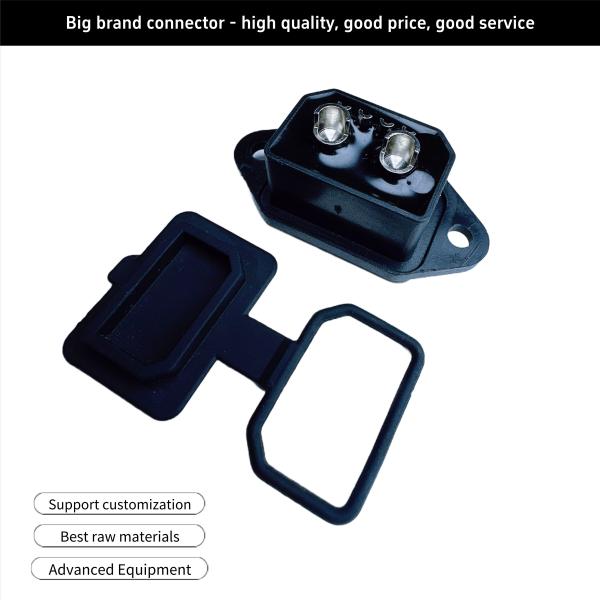

Charging Socket 2+4P EV Lithium Battery Terminal Connector For Charging / Discharging
Charging Socket 2+4P EV Lithium Battery Terminal Connector For Charging / Discharging
Charging Socket 2+4P EV Lithium Battery Terminal Connector For Charging / Discharging
Charging Socket 2+4P EV Lithium Battery Terminal Connector For Charging / Discharging
Specifications
Place of Origin :
Shenzhen, China
Brand Name :
Jbocnt
Model Number :
2+4P EV lithium battery terminal connector
MOQ :
100 sets
Price :
Negotiable
Certification :
CE、TUV、UL、RoHS
Packaging Details :
High quality export packaging
Delivery Time :
Sample: 1-3 days; Small order: 3-10 days; Bulk order: 10-18 days
Payment Terms :
,T/T,Western Union,D/P,D/A,L/C,MoneyGram
Supply Ability :
10000/day
Name :
Lithium Battery Terminal Connector
Hardware materials :
Brass/Gold Plated
Housing Material :
PA66
Mechanical life :
5000 times
Product weight :
13.94g
Rated current/ instantaneous current :
30A/60A
Operating temperature :
-20℃～120℃
Wiring range :
10AWG
Recommended welding standards :
480℃/4S
Description


Jbocnt Group Charging Socket 2+4P EV Lithium Battery Terminal Connector Suitable For Lithium Battery Charging And Discharging


The design of this connector has multiple advantages


1. High-quality conductor material, low resistance, high conductivity, and reduced energy loss.
2. Adopting optimized structure, enhanced heat dissipation, and service life increased by 1.5 times compared with industry products.
3. Adapt to vibration, temperature changes and humid environments.


Applications: Electric vehicle battery charging connectors, quick-change batteries for charging cabinets, etc.

2+4 connector, "+" represents the positive terminal for battery charging and discharging, and "-" represents the negative terminal for battery charging and discharging.

Material and Surface Treatment:

A. Plastic body: PA66, UL 94-V0 fire rating
B. Terminals: Copper alloy, nickel-plated.
C. Crown spring: Beryllium copper with silver plating.


Product Introduction

This product is specially designed for electric two-wheelers. It adopts a new structural design, has low impedance, excellent conductivity, and efficient connection without signal interruption. It is suitable for lithium battery systems in harsh environments such as electric vehicles and industrial and commercial electric equipment, ensuring stable charging and discharging and BMS management under complex working conditions.

Charging Socket 2+4P EV Lithium Battery Terminal Connector For Charging / Discharging

Product Features

l Multifunctional integration - synchronous transmission of power and data (temperature/voltage/communication)
l Superior performance - made of high-quality raw materials, 5000 plug-in and pull-out life
l Military-grade contact material + flame-retardant shell, zero short-circuit risk
l Exclusive patented design, stable and uninterrupted signal and power transmission

l A popular product, adopted by world-renowned electric motorcycle manufacturers


Application areas:
lithium battery systems in harsh environments such as electric vehicles, outdoor energy storage cabinets, and electric equipment.

Charging Socket 2+4P EV Lithium Battery Terminal Connector For Charging / Discharging


What is the size?


Charging Socket 2+4P EV Lithium Battery Terminal Connector For Charging / Discharging Charging Socket 2+4P EV Lithium Battery Terminal Connector For Charging / Discharging Charging Socket 2+4P EV Lithium Battery Terminal Connector For Charging / Discharging



Our customers


Charging Socket 2+4P EV Lithium Battery Terminal Connector For Charging / Discharging


FAQ


Q: How can I purchase your product?
A: You will need to:
* Confirm the rated current and number of contacts
* Confirm the assembly style
* Confirm the cable gauge
* Confirm the cable length and shipping method

Q: How can I contact you?
A: Please email us. We have been in this industry for over 19 years, so we can identify your issue and resolve it quickly. If you have any questions, please feel free to let us know.
