Jbocnt Group High Current 60A Lockable Electric Vehicle Charging Plug 2+6P EV Lithium Battery Power Connector

The design of this connector has multiple advantages

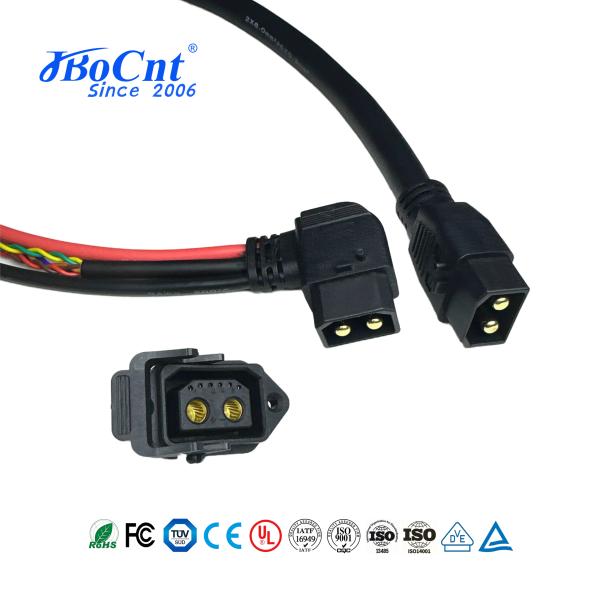

▶Two male connector models

▶Straight and 90-degree elbow

The advantages of this 2+6 connector can be analyzed from the perspectives of connection reliability, protection performance, installation and maintenance, environmental adaptability, and cost-effectiveness:

>1. Safe and Reliable Connection

● Contact Reliability: The terminals are gold-plated (the terminals are gold in the image). Gold plating effectively prevents terminal oxidation, ensures long-term stable conductivity, reduces contact resistance, and minimizes signal attenuation and heat loss.
● Locking and Anti-Mistrelay: The plug and receptacle are designed with locking structures (such as the plug's latch and the receptacle's slot). A mechanical "bite-lock" lock is achieved during insertion and removal to prevent loosening or falling out. The matching number and position of the terminals effectively prevents device failures caused by "inserting into the wrong jack."

>2. Enhanced Protection
● Sealed and Dustproof: The connector housing and terminals are sealed using sealing rings and waterproof adhesive, meeting IP65/IP67 protection levels (dust and splash resistance), making them suitable for humid and dusty industrial and automotive environments. ● Corrosion and Weather Resistance: The housing is made of weather-resistant plastic (such as PA, PBT, and other engineering plastics) to withstand corrosive environments like acid, alkali, and salt spray, extending its service life.
>3. Convenient Installation and Maintenance
● Quick Assembly and Disassembly: The plug-in design simplifies the connection process between devices, eliminating the need for screws, soldering, and other complex operations. Disconnect-Repair-Reconnect is quick, significantly reducing maintenance time and costs.

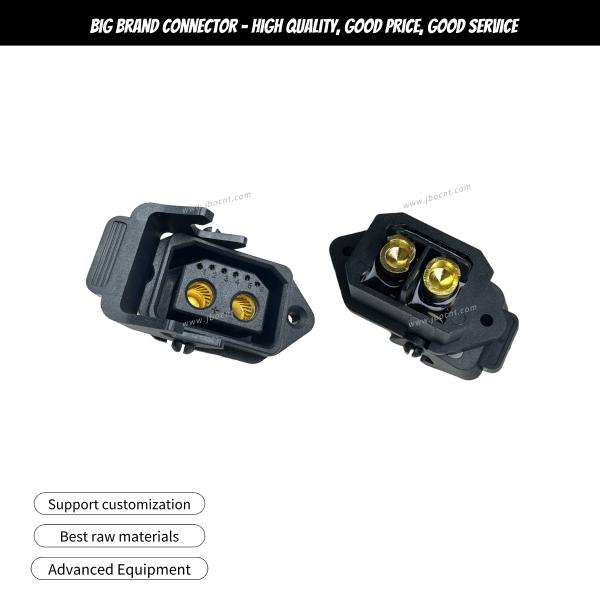

● Installation Compatibility: The socket is designed with mounting holes and clips, allowing for flexible adaptation to device panels, brackets, and other structures, adapting to various installation scenarios.
>4. Adaptability to Extreme Environments
● Wide Operating Temperature Range: The plastic housing and terminal plating are specially treated to ensure stable operation in temperatures ranging from -40°C to 105°C, or even higher, meeting the requirements of both extremely cold and high-temperature operating conditions (such as in vehicles and outdoor power equipment).
● Vibration and Shock Resistance: The connector's compact structure and the terminal-housing fastening process (such as integrated injection molding and clip reinforcement) can withstand high-frequency vibration and mechanical shock, ensuring connection stability. >5. Cost and Efficiency Optimization
● Standardization and Interchangeability: Adhering to industry standards (such as IEC/UL certifications), the connector is compatible with similar connectors, reducing spare part costs. It also enables cross-device interoperability, reducing supply chain complexity.
● Space Optimization: The compact design (shown in the image) efficiently utilizes internal space and adapts to compact equipment layouts.

These advantages make it widely used in electric vehicles, industrial automation, in-vehicle electronics, new energy equipment, consumer electronics, and other fields, making it a preferred solution for connectivity requirements requiring high reliability, high protection, and high efficiency.

Dimensional drawings (if the image is too small, please refresh the page again)

Our customers

FAQ

Q: What should I provide for a custom order?
A:
1. Contact us.
2. Please send us your specifications (including connector part number and cable size, AWG, length, and color).
3. We will produce samples for the buyer to check quality and test.
4. Sign the purchase order.
5. Payment and production.
6. Shipment.
