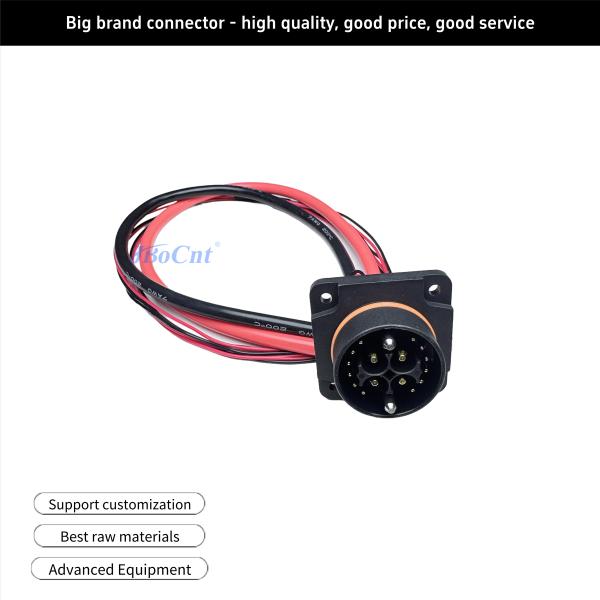

Description of 4+8 pin stackable connector

▶This 4+8 pin connector is used for stacked energy storage boxes, or for quick replacement between base station batteries and electric vehicle batteries in battery replacement mode; it provides high current transmission between devices and has the function of transmitting signals; it adopts a new patented design, which is conducive to heat dissipation, stable connection without interruption, and improves equipment operation efficiency. It is easy to install and maintain later; large currents can be connected in parallel to increase power and reduce costs; it belongs to a new generation of connectors and is suitable for use on many household energy storage products.

Structure and design

＞Adopting 4+12 pin stacking structure, it supports multi-channel power transmission and signal control, meeting the high-density connection requirements of balcony energy storage system
＞Integrated ‌superimposed charging base‌ design, compatible with fast plug-in and unplug of new energy equipment, convenient for flexible deployment of balcony photovoltaic

＞energy storage scene
Brass contact + gold plating process, reduces contact resistance, improves conductive stability, suitable for 80A high current scene
＞Performance parameters
Rated current: 80A (higher load after stacking) Suitable for lithium battery pack energy storage system
Protection level: Some models support IP67 protection, adapting to the high humidity and dust challenges of balcony outdoor environment

Product advantages

Applications of 4+8 pin stackable connector

What is the size?

OUR CUSTOMERS

FAQ

1. Q: Are you a factory or a trading company?

A: We are a connector manufacturer with 19 years of experience. We also have global certifications such as ISO9001, CE, UL, and support on-site factory inspections.
2. Q: How to buy your products?
A: You need to do the following:
√ Confirm the rated current and number of contacts
√ Confirm the assembly method
√ Confirm the cable gauge
√ Confirm the cable length and material.

3. Q: How to get samples?

A: I am honored to provide you with samples, and the shipping cost is at your own expense. You can provide your courier number and detailed address so that we can send the samples to you immediately.

4. Q: How many materials do you provide?
A: There are many kinds of materials for connectors and cables. We usually use PVC/nylon materials to produce connectors and PVC/rubber/silicone materials to produce cables. Of course, we can also choose materials according to your requirements.

5. Q: How is the quality control of your factory?
A: Quality is the top priority. Jbocnt people always attach great importance to quality control and are consistent. Our factory has obtained many global certifications.
