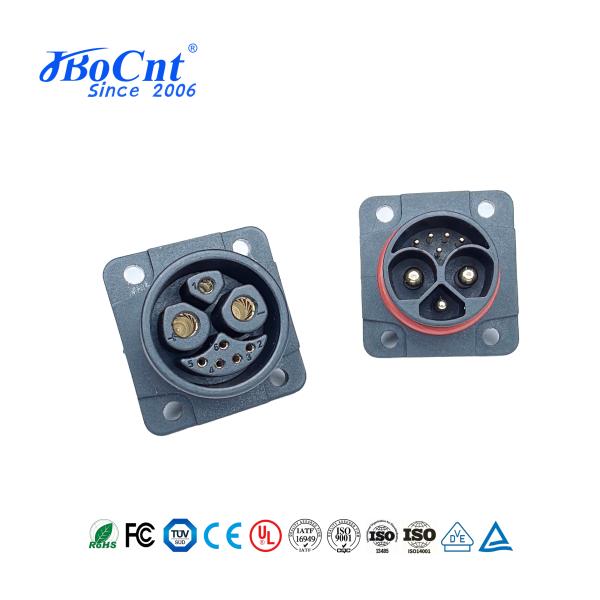

Jbocnt Factory 2+1+5 Pin Plug And Socket Signal Pin Power Electric Scooter Waterproof Connector Electric Bike Motor Wire

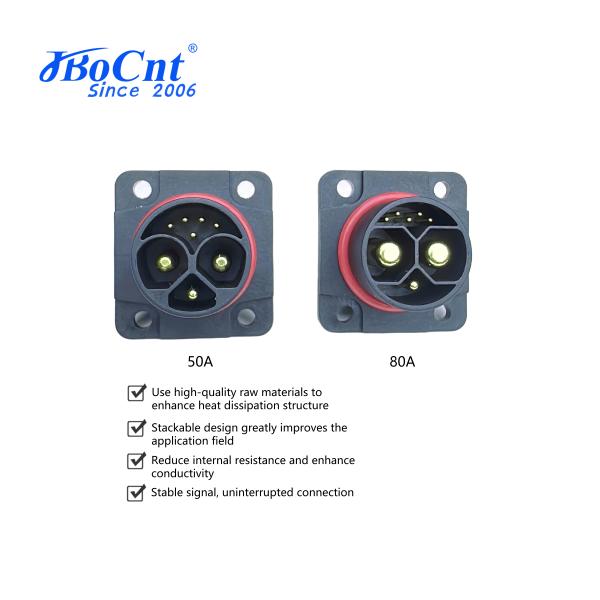

The design of this connector has multiple advantages

Two male connector styles – straight and angled;

Two female connector styles – diamond and round.

M25 Push-in Lock 2Pin Power 1Pin Ground 5Pin Data Waterproof Electronic Connector Male Plug Female Panel Connector

Description of Waterproof EV-Connector

Push locking waterproof connector IP67 is the main feacture of Jnicon M23 model. Its take only a few seconds to connect the male female connector, thanks to its advanced structure . it is widely used in many application. If your products is E-Scooter, this model connector would help you a perfect and most advanced connection.

This product is designed for scenarios with high protection requirements. It integrates power and signal transmission functions. It is suitable for connection requirements in harsh environments such as electric vehicles, chargers, industrial and commercial electric equipment, underwater operation equipment, and portable energy storage boxes. It meets the IP68 waterproof standard and ensures stable connection under complex working conditions.

Main characteristics Of Male Plug Female Panel Connector

• Sealed against dust and fluid (IP67)
• power connector waterproof
• Vibration resistance,impact resistance,stretching resistance
• socket with cover
• Cable assembly support
• Customized cable size and length

Features: 2Pin Power 1Pin Grounding 5Pin Data

• 2 power supply, 5IN signal 1pin grounding
• IP67 rating
• Voltage rating: 300V
• Cable Range: 3~11mm
• UL, TUV, CB, CCC, CE, RoHS approved
• Mating cycle: 3000 times

Application areas:

It is suitable for connection requirements in harsh environments such as electric vehicles, chargers, industrial and commercial electric equipment, underwater operation equipment, and agricultural plant lighting systems.

What is the size?

Our customers

FAQ

Q: How can I purchase your product?
A: You will need to:
* Confirm the rated current and number of contacts
* Confirm the assembly style
* Confirm the cable gauge
* Confirm the cable length and shipping method

Q: How can I contact you?
A: Please email us. We have been in this industry for over 19 years, so we can identify your issue and resolve it quickly. If you have any questions, please feel free to let us know.

‌1. Q: Are you a factory or a trading company? ‌
A: We are a connector manufacturer with 19 years of experience. We also hold ISO9001, CE, UL and other global certifications and support on-site factory inspections.

‌2. Q: What is the minimum order quantity (MOQ)? ‌
A: The MOQ of standard products is 500 pieces. Customized products need to be evaluated based on the process. Some products support 100 trial orders.

‌3. Q: Can free samples be provided? ‌
A: 1-2 free samples can be provided, but the customer needs to bear the international shipping costs; when there are many sample categories, the sample fee can be fully refunded after placing an order.

‌4. Q: What are the payment methods? ‌
A: Support T/T (30% advance payment + 70% see the copy of the bill of lading), LC, Paypal (small orders), specific details can be negotiated.

‌5. Q: How long is the delivery cycle? ‌
Answer: 15-20 days for conventional products, 25-30 days for customized products (including sample confirmation time), and an additional 10% fee is required for expedited orders.

‌6. Q: What should I do if there are quality problems? ‌
Answer: We provide a 12-month warranty. You can apply for return or reissue with the test report within 7 days after receiving the goods. Please consult the engineer for specific questions
