Specifications
Memory Type :
DDR4 3200MT/s SODIMM
Size :
186 * 140 * 66 mm
Display Ports :
HDMI, VGA
Display Chip :
Integrated Intel HD Graphics
Certification :
CE,CCC,FCC Class A,RoHS
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000 Set
Delivery Time :
7-10 work days
Packaging Details :
Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.
USB Ports :
2* USB2.0
Front I/O :
4*COM, 2* USB2.0, 1*Intel 2.5G Lan, 18 bits GPIO Phoenix, 1*Power switch
Work Temperature :
0℃ - +50℃ (Commercial HDD), -20℃ to -60℃ (Industrial SSD)
Network Ports :
2*Intel I211-AT 10/100/1000M Ethernet LAN
Rear I/O :
2*COM (RS232/485 optional), 2*USB2.0, 2*USB3.0, 2*Intel 2.5G Lan, 1*HDMI, 1*DP, 1*Audio with Mic and Speaker
Power Supply :
DC 12V input (DC 9-36V Optional)
Storage Slots :
1*M.2 slot (SATA protocol), 1*2.5” SSD/HDD
Work Humidity :
5% -95% non-condensing
Expansion Slot :
1*M.2 M-key slot 2280, SATA protocol; 1*M.2 B-key slot 3042/3052 (for 4G/5G module) with SIM slot; 1*MINI PCIE slot (for WIFI&BT)
Brand Name :
MTHGH
Model Number :
IBOX-1226
Place of Origin :
China
BIOS :
AMI UEFI BIOS
Max Memory :
32 GB
Processor Model :
J6412
Weight :
1.5 kg
Processor Core :
Quad Core
Description
IBOX-1226 J6412 Industrial Fanless Mini PC With 32GB Ram And 12V DC Input
Product Overview

This industrial fanless mini PC combines sleek dark grey design with robust functionality. Featuring a DC 12V input voltage for easy installation and operation, it carries CE, CCC, FCC Class A, and ROHS certifications ensuring compliance with the highest quality and safety standards.

Built with Gemini Lake Refresh CPU architecture, this fanless system delivers efficient computing power while eliminating the risks associated with traditional fan-cooled systems in harsh industrial environments. Engineered to withstand extreme temperatures, humidity, and vibration, it ensures long-term reliability across demanding applications.

Key Features
  • Product Name: Industrial Mini PC
  • Model: IBOX-1226
  • Memory: Support 1*DDR4 3200MT/s SODIMM, Max 32 GB
  • BIOS: AMI UEFI BIOS
  • Material: High-quality all aluminum, surface hard anodized
  • Processor Core: Onboard Intel Celeron J6412 (quad core, four threads, 2.0GHz, Max to 2.6GHz)
  • Display Chip: Integrated Intel HD Graphics
  • Display Port: 1*HDMI, 1*DP (Support Synchronous/asynchronous display)
  • Storage: 1*M.2 slot (SATA protocol), 1*2.5" SSD/HDD
  • USB: 2* USB2.0
Technical Specifications
Specification Details
Module IBOX-1226
Color Dark grey (color can be customized)
Material High-quality all aluminum, surface hard anodized
Processor Onboard Intel Celeron J6412 (quad core, four threads, 2.0GHz, Max to 2.6GHz)
Memory Support 1*DDR4 3200MT/s SODIMM, Max 32 GB
BIOS AMI UEFI BIOS
Display Chip Integrated Intel HD Graphics
Display Port 1*HDMI, 1*DP (Support Synchronous/asynchronous display)

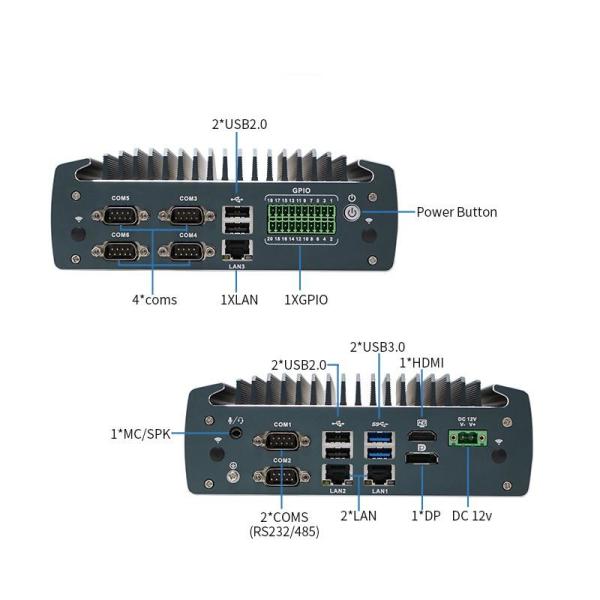

Front I/O 4*COM, 2* USB2.0, 1*Intel 2.5G Lan, 18 bits GPIO Phoenix, 1*Power switch
Rear I/O 2*COM (COM1 and 2, RS232/485 optional) 2*USB2.0, 2*USB3.0, 2*Intel 2.5G Lan, 1*HDMI, 1*DP, 1* 2Pin Phoenix, 1*Audio with Mic and Speaker
Expansion Slot 1*M.2 M-key slot 2280, SATA protocol; 1*M.2 B-key slot 3042/3052 (for 4G/5G module) with SIM slot; 1*MINI PCIE slot (for WIFI&BT); 2*USB2.0 (Extensible ports)
Network 3*Intel i226-V 2.5G Lan
Storage 1*M.2 slot (SATA protocol), 1*2.5" SSD/HDD
Power Supply DC 12V input (DC 9-36V Optional)
Other functions Auto Power-on, Timed power-on, network wake-up, PXE boot, watchdog (level 0-255), TPM2.0 security encryption
Work Temp 0℃ - +50℃ (Commercial HDD), -20℃ to -60℃ (Industrial SSD), Surface air flow
Work Humidity 5% -95% non-condensing
Certificates CE, CCC, FCC Class A, RoHS
Size 186 * 140 * 66 mm
Weight 1.5 kg
Application Industrial automation, Medical, Transportation, Warehousing, E-education etc.
Product Drawing
IBOX-1226 J6412 Industrial Fanless Mini PC with 32GB RAM, 12V DC Input, and Quad Core Processor
Accessories List
Name Quantity Specification
Power Adapter 1 12V 5A
Power Cord 1 US standard, EU standard, etc.
Wall bracket 2 Standard
Order Information

Configuration 1: IBOX-1226 | Intel Celeron J6412 | Standard I/O

Applications
The fanless design makes this system ideal for industrial automation, medical equipment, logistics transportation, warehouse management, electronic education, and similar applications. With no moving parts, it resists dust and contaminants while operating reliably in harsh environments with extreme temperatures, humidity, and vibrations.

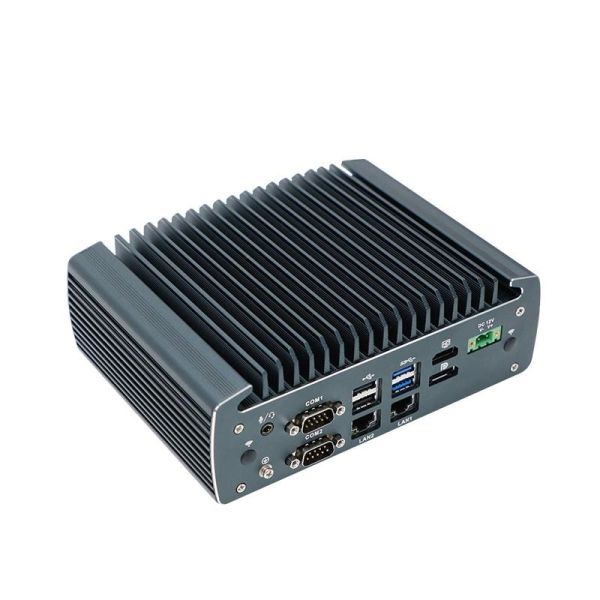

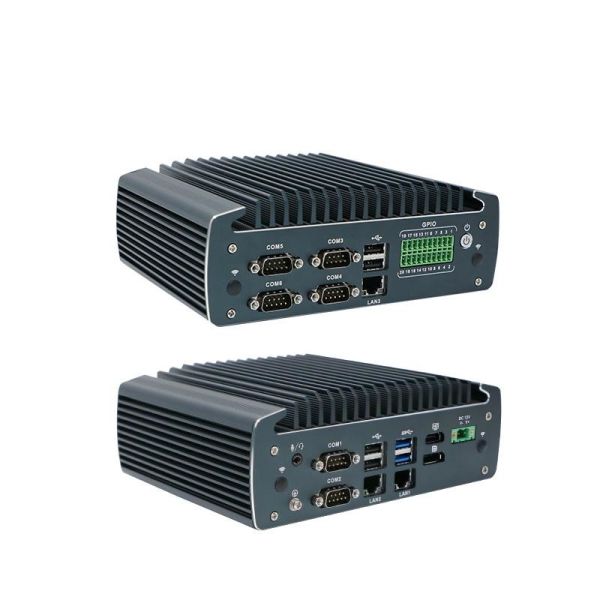

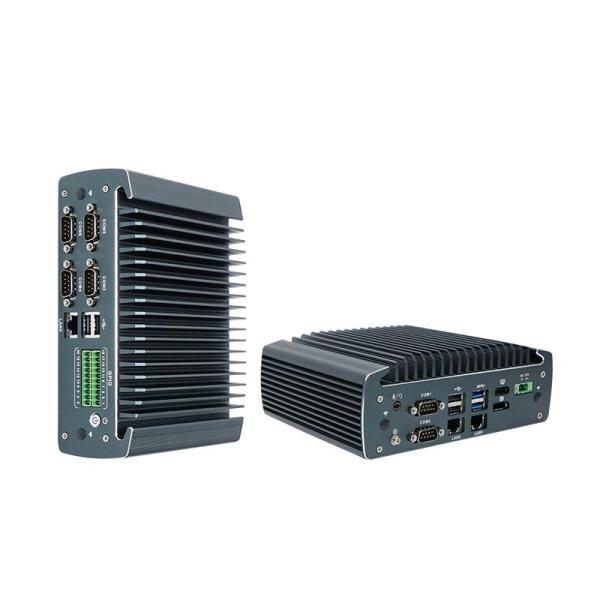

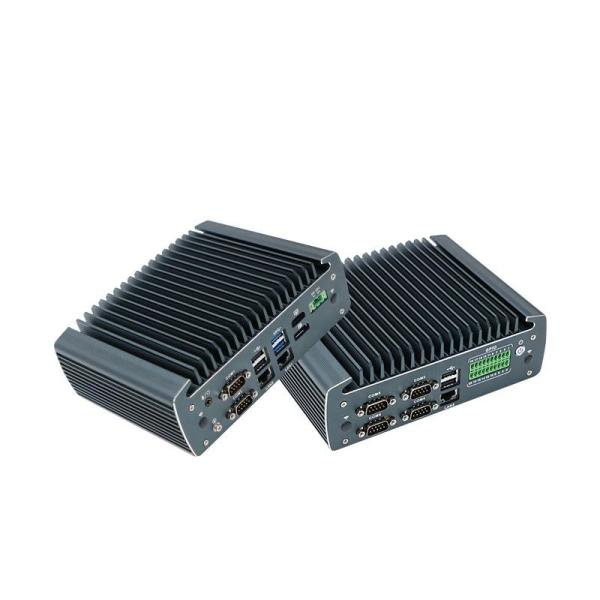

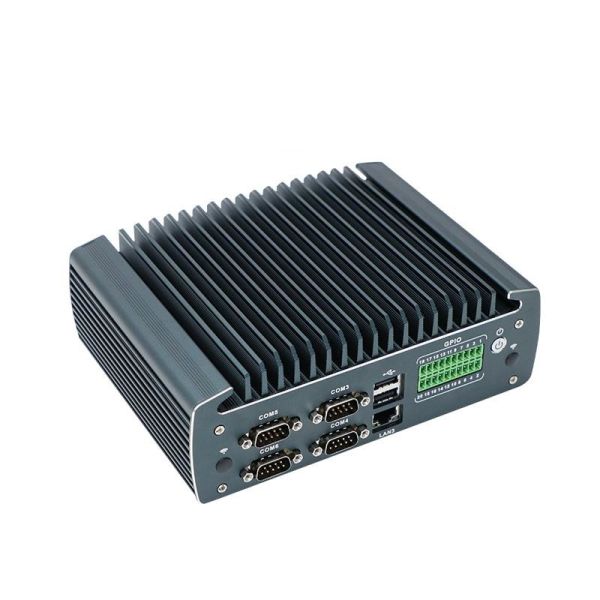

Product Images
IBOX-1226 J6412 Industrial Fanless Mini PC with 32GB RAM, 12V DC Input, and Quad Core Processor IBOX-1226 J6412 Industrial Fanless Mini PC with 32GB RAM, 12V DC Input, and Quad Core Processor IBOX-1226 J6412 Industrial Fanless Mini PC with 32GB RAM, 12V DC Input, and Quad Core Processor IBOX-1226 J6412 Industrial Fanless Mini PC with 32GB RAM, 12V DC Input, and Quad Core Processor IBOX-1226 J6412 Industrial Fanless Mini PC with 32GB RAM, 12V DC Input, and Quad Core Processor IBOX-1226 J6412 Industrial Fanless Mini PC with 32GB RAM, 12V DC Input, and Quad Core Processor IBOX-1226 J6412 Industrial Fanless Mini PC with 32GB RAM, 12V DC Input, and Quad Core Processor IBOX-1226 J6412 Industrial Fanless Mini PC with 32GB RAM, 12V DC Input, and Quad Core Processor IBOX-1226 J6412 Industrial Fanless Mini PC with 32GB RAM, 12V DC Input, and Quad Core Processor
