Specifications
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000 Set
Delivery Time :
7-10 work days
Packaging Details :
Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.
Memory Slot :
1 DDR4 1866/2133 SODIMM
BIOS :
AMI EFI BIOS
USB Ports :
6 USB2.0, 2 USB3.0
Operating Temperature :
0℃ ~ +50℃ (commercial HDD), -20℃ ~ +60℃ (industrial SSD)
Total Weight :
3.6 kg
Display Interface :
1 VGA, 1 HDMI
Working Humidity :
5% to 95% non-condensing
Serial Ports :
4 COM (6 optional)
Input Voltage :
DC 9~36V
Storage Interface :
1 MSATA slot, 1 2.5-inch hard disk slot
Network Interface :
2 Intel i211-AT Gigabit Ethernet
Display Chip :
Intel HD Graphics 610/620
Product Size :
215 * 185 * 115 mm
Brand Name :
MTHGH
Model Number :
IBOX-701
Place of Origin :
China
Certification :
CE/CCC/FCC Class A/ROHS
Expansion Slots :
Mini PCIe, MSATA
Memory Capacity :
Up to 16GB
Processor :
Intel Core I5-7200U
Chassis Material :
High quality aluminum alloy
Hard Drive :
256GB SSD
Description
Intel Core I5 7200U Mini PCIe Industrial Fanless Mini PC IBOX-701Plus
Key Features
  • Onboard Intel Celeron 3865U, 7th generation Core i5/i7 processors
  • Supports DDR4 1866/2133 16G memory
  • Supports 1 MSATA slot, 1 2.5-inch hard disk slot
  • Supports WIFI/3G/4G module (choose one of three)
  • Supports 6 COM ports (2 optional RS232/422/485 mode)
  • Supports DC 9~36V wide voltage input with positive and negative reverse connection protection
Technical Specifications
Machine Type IBOX-701 Plus
Chassis Color Blue + gray (color can be customized)
Chassis Material High quality aluminum alloy, hard anodized surface
Processor Options Onboard Intel Celeron 3865U (dual-core dual-thread, 2MB L3 cache, 1.8 GHz)
Onboard Intel Core i5 7200U (dual-core four-thread, 3MB L3 cache, 2.5GHz, turbo up to 3.1GHz)
Onboard Intel Core i7 7500U (dual-core four-thread, 4MB L3 cache, 2.7GHz, turbo up to 3.5GHz)
Memory 1 DDR4 1866/2133 SODIMM memory slot, up to 16GB
BIOS AMI EFI BIOS
Display Interface 1 VGA interface, 1 HDMI built-in pin (supports synchronous and asynchronous dual display)
Front Panel I/O 2 USB3.0, 2 USB2.0, 2 indicator lights, 1 power switch
Rear Panel I/O 2 USB3.0, 2 Intel Gigabit Ethernet ports, 1 VGA port, 1 3P power supply Phoenix terminal, 1 clear COMS button, 4 COM ports standard (6 COM ports optional)
Network Interface 2 x Intel i211-AT 10/100/1000M Ethernet
Storage Interface 1 MSATA slot, 1 onboard 2.5-inch hard disk slot
Input Voltage DC 9~36V wide voltage input with positive and negative polarity reverse protection
Operating Temperature 0℃ ～ +50℃ (commercial HDD), -20℃ ～ +60℃ (industrial SSD)
Safety Certificates CE, CCC, FCC Class A, ROHS
Product Size 215 * 185 * 115 mm [without wall mount]
Total Weight 3.6 kg [without wall mount]

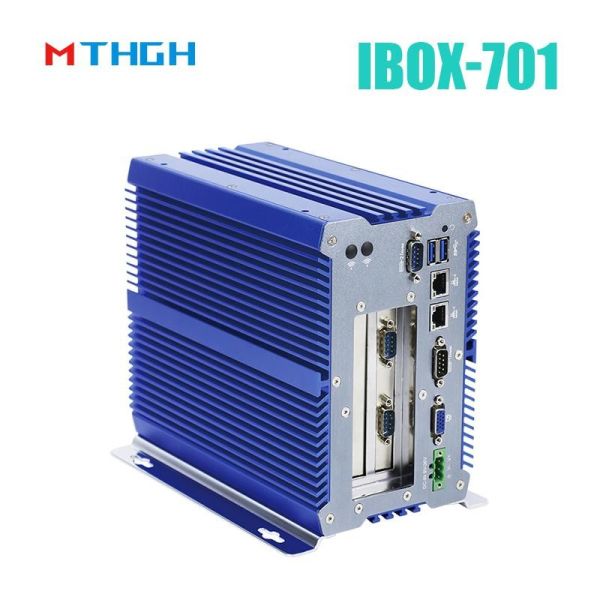

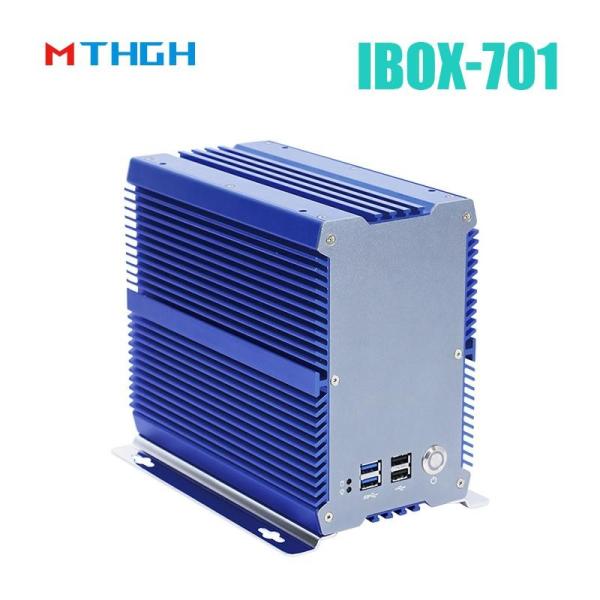

Product Views
Intel Core i5-7200U Industrial Fanless Mini PC with 6 COM Ports and DC 9~36V Wide Voltage Input - IBOX-701Plus
Intel Core i5-7200U Industrial Fanless Mini PC with 6 COM Ports and DC 9~36V Wide Voltage Input - IBOX-701Plus Intel Core i5-7200U Industrial Fanless Mini PC with 6 COM Ports and DC 9~36V Wide Voltage Input - IBOX-701Plus Intel Core i5-7200U Industrial Fanless Mini PC with 6 COM Ports and DC 9~36V Wide Voltage Input - IBOX-701Plus Intel Core i5-7200U Industrial Fanless Mini PC with 6 COM Ports and DC 9~36V Wide Voltage Input - IBOX-701Plus Intel Core i5-7200U Industrial Fanless Mini PC with 6 COM Ports and DC 9~36V Wide Voltage Input - IBOX-701Plus Intel Core i5-7200U Industrial Fanless Mini PC with 6 COM Ports and DC 9~36V Wide Voltage Input - IBOX-701Plus
Application Areas
  • • Industrial automation
  • • Medical equipment
  • • Logistics systems
  • • Transportation
  • • Warehousing
  • • Machine vision
Package Contents
Name Quantity Specification
Adapter 1 Optional 12V 5A/12V 10A
Power Cable 1 Optional national standard, American standard, British standard, etc.
Certificate 1 Yanling logo/neutral
Warranty Card 1 Yanling logo/neutral
Wall Mount 2 Applicable to standard back hanging
Motherboard CD 1 Neutral
Configuration Options
Configuration Model Processor Interface
Configuration 1 IB0X-701 Plus Intel Celeron 3865U Standard Interface, PCIE X4 + PCI
Configuration 2 IB0X-701 Plus Intel Core i5 7200U Standard Interface, PCIE X4 + PCI
Configuration 3 IB0X-701 Plus Intel Core i7 7500U Standard Interface, PCIE X4 + PCI
Configuration 4 IB0X-701 Plus Intel Celeron 3865U Standard Interface, 2 PCI
Configuration 5 IB0X-701 Plus Intel Core i5 7200U Standard Interface, 2 PCI
Configuration 6 IB0X-701 Plus Intel Core i7 7500U Standard Interface, 2 PCI
Configuration 7 IB0X-701 Plus Intel Celeron 3865U Standard Interface, PCIE X4 + PCIE X1
Configuration 8 IB0X-701 Plus Intel Core i5 7200U Standard Interface, PCIE X4 + PCIE X1
Configuration 9 IB0X-701 Plus Intel Core i7 7500U Standard Interface, PCIE X4 + PCIE X1
