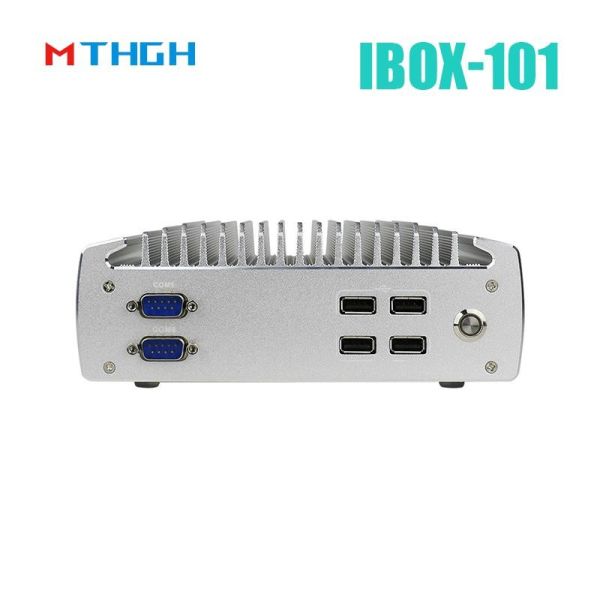

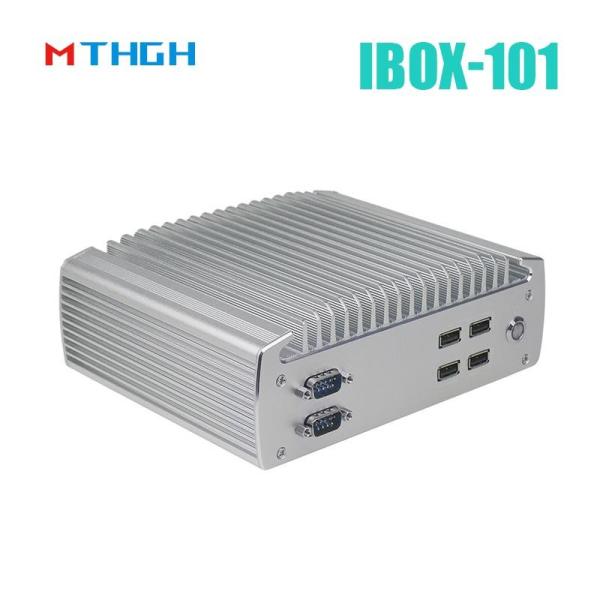

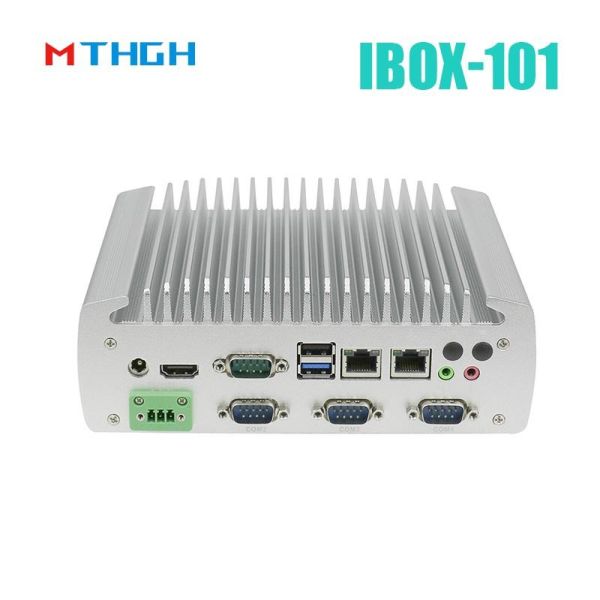

IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support
IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support
IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support
IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support
IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support
IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support
IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support
IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support
IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support
IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support
IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support
IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support
IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support
IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support
IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support
IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support
IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support
IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support
Specifications
RAM :
Max turbo 8GB DDR3L 1333/1600MHz SODIMM
Auto Power :
Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level)
Rear I/O :
1*USB3.0, 1*USB2.0, 4*COM (COM1, COM2 RS232/485 Optional), 1*3PIN Phoenix connector, 2*1000M LAN, 1*HDMI, 1*DC 12V Input, 1*Mic, 1*Line Out
Work Temp :
0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +60℃ (Industrial SSD)
Net Weight :
1.6kg (Not include the brackets)
Front I/O :
4*USB2.0, 2*COM, 1*Power Switch
Work Humidity :
5% ～ 95% non-condensing
Expansion Slot :
1*MINI PCIE Slot (Support MSATA), 1*MINI PCIE Slot (WIFI/3G/4G Optional), Embedded SIM Slot
Input Voltage :
DC 12V Input
BIOS :
AMI UEFI BIOS
Display Port :
1*HDMI, 1*Built-in LVDS (Support synchronous and asynchronous dual display)
Network :
2*Intel i211-AT 1000M LAN
Material :
High-quality all aluminum, surface anodic oxidation
Dimension :
186 * 150 * 66mm (Not include the brackets)
Certification :
CE/CCC/FCC Class A/ROHS
Brand Name :
MTHGH
Model Number :
IBOX-101
Place of Origin :
China
Storage :
1*MSATA Slot, 1*2.5"HDD
Processor :
Onboard Intel Celeron J1900 (Quad core quad threading, 1.99GHz, TDP: 10W)
Support OS :
Windows 7/8/10, Linux
Display Chip :
Integrated Intel HD Graphics
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000 Set
Delivery Time :
5-10 work days
Packaging Details :
Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.
Description
IBOX-101 Plus Industrial Mini PC With HDMI Mini PCIe/MSATA Support Windows/Linux
Industrial Mini PCIBOX-101 Plus

Intel® Celeron® J1900 Quad Core Processor Fanless Industrial PC

Energy saving platform - MTHGH's IBOX-101 is a fanless industrial box computer, perfect for micro applications. This embedded hardware platform adopts Intel® Celeron® J1900 processor design boasting excellent performance and energy efficiency.

Rich and Diverse I/O Interfaces
  • Front: 4×USB 2.0, 2×COM, 1×Power Switch
  • Rear: 1×USB 3.0, 1×USB 2.0, 4×COM (COM1, COM2 RS232/485 Optional), 1×3PIN Phoenix connector
  • 2×1000M LAN, 1×HDMI, 1×DC 12V Input, 1×Mic, 1×Line Out
Fanless, Sturdy Design

IBOX-101 delivers high performance and reliability in harsh environments with noise-free operation, making it ideal for a wide range of industrial applications.

Key Features
  • All aluminum structure, fanless design
  • Support Intel Celeron J1900 quad core processor
  • Maximum support DDR3L 8GB RAM
  • Support 1×MSATA Slot, 1×2.5" HDD
  • Support 1×Mini PCIE Slot
  • Support 6×COM (COM1, COM2 RS232/485 Optional)
  • Operating System Support: Windows, Linux
IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support
Technical Specifications
Model IBOX-101 Plus
Color Silver (Color can be customized)
Material High-quality all aluminum, surface anodic oxidation
Processor Onboard Intel Celeron J1900 (Quad core quad threading, 1.99GHz, TDP: 10W)
RAM Support 1×DDR3L 1333/1600MHz SODIMM RAM Slot, Maximum 8GB
BIOS AMI UEFI BIOS
Display Chip Integrated Intel HD Graphics
Display Port 1×HDMI, 1×Built-in LVDS (Support synchronous and asynchronous dual display)
Front I/O 4×USB 2.0, 2×COM, 1×Power Switch
Rear I/O 1×USB 3.0, 1×USB 2.0, 4×COM (COM1, COM2 RS232/485 Optional), 1×3PIN Phoenix connector, 2×1000M LAN, 1×HDMI, 1×DC 12V Input, 1×Mic, 1×Line Out
Expansion Slot Support 1×MINI PCIE Slot (Support MSATA); Support 1×MINI PCIE Slot (WIFI/3G/4G Optional), Embedded SIM Slot
Network 2×Intel i211-AT 1000M LAN
Storage Support 1×MSATA Slot, 1×2.5" HDD
Input Voltage Support DC 12V Input
Other Functions Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0-255 level) - Standard version doesn't set these functions
Work Temperature 0℃ - +50℃ (Commercial HDD), -20℃ - +60℃ (Industrial SSD), Surface air flow
Work Humidity 5% - 95% non-condensing
Certificates CE, CCC, FCC Class A, ROHS
Dimension 186 × 150 × 66mm (Not including brackets)
Net Weight 1.6kg (Not including brackets)
Application Industrial Automation, Medical, Logistics Transportation, Warehouse, Electronic Education etc.
IBOX-101 Plus Drawing
IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support
Accessories List
Name Quantity Specification
Power Adapter 1 12V 5A
Power Cord 1 Any Plug Optional (China, US, EU, UK etc.)
Bracket 2 Standard (Included)
CD Driver 1 Neutral
HDMI to VGA Cable 1 HDMI to VGA Cable (Included)
Order Information

Configuration 1: IBOX-101 Plus | Intel Celeron J1900 | Standard Port

IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support IBOX-101 Plus Industrial Mini PC with Intel Celeron J1900 Quad Core Fanless Design HDMI and Mini PCIe Support
Please specify which operating system you want to install when placing your order.
