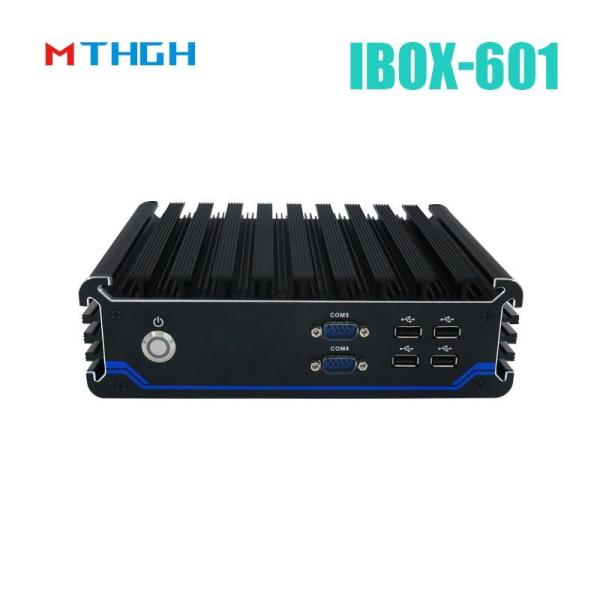

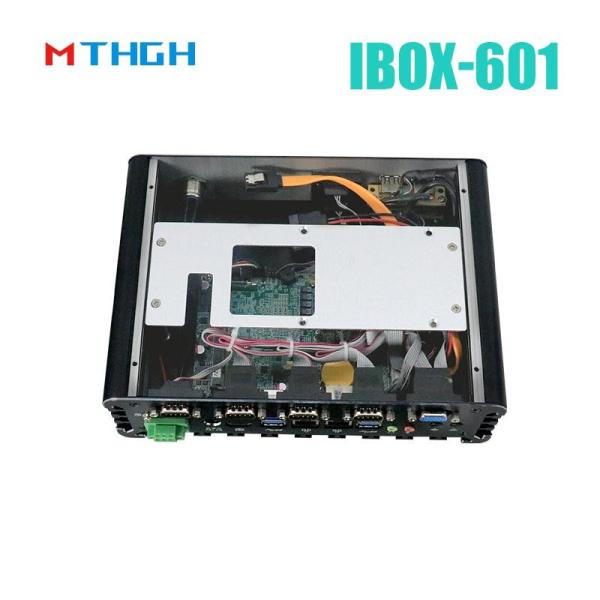

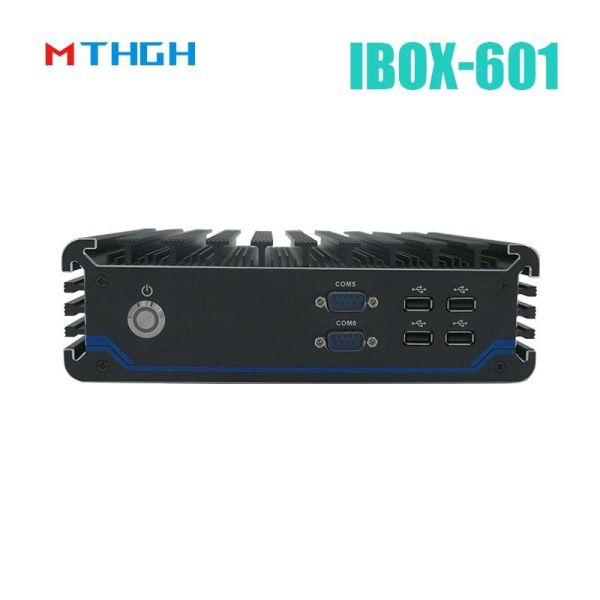

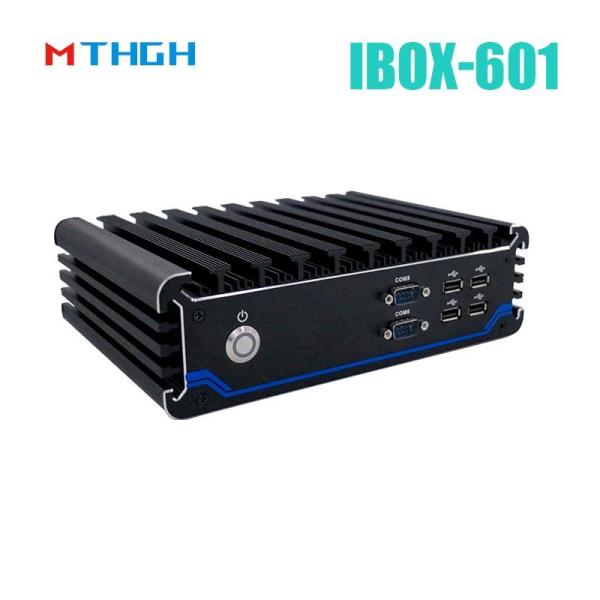

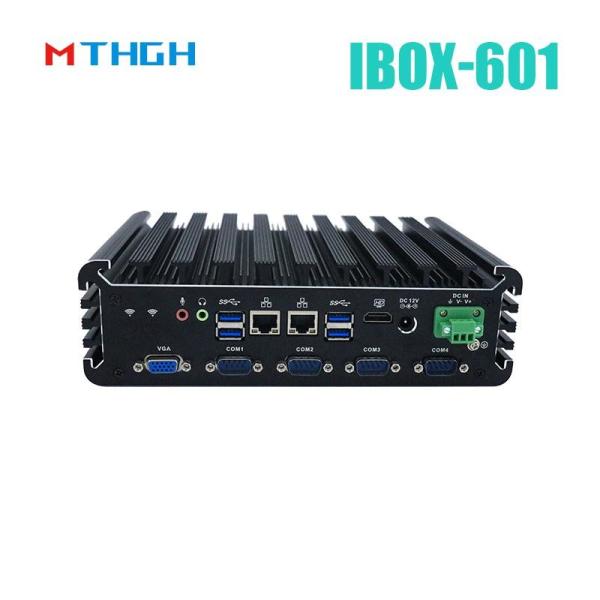

Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal
Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal
Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal
Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal
Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal
Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal
Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal
Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal
Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal
Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal
Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal
Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal
Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal
Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal
Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal
Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal
Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal
Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal
Specifications
CPU Architecture :
Skylake-U / KabyLake-U
Power Adapter :
12V 5A
USB Ports :
4*USB2.0 (Front), 4*USB3.0 (Rear)
Input Voltage :
DC 9～19V (9～36V Optional)
Dimensions :
230 * 166 * 68 mm
Display Ports :
1*VGA, 1*HDMI
Operating Temp :
0℃～+50℃ (Commercial HDD), -20℃～+60℃ (Industrial SSD)
COM Ports :
6*COM (2*RS232/485 Optional)
Storage Options :
1*MSATA Slot, 1*2.5" HDD
Certification :
CE/CCC/FCC Class A/ROHS
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000 Set
Delivery Time :
7-10 work days
Packaging Details :
Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.
Display Chip :
Intel HD Graphics 520/620
LAN Ports :
2*Intel i211-AT 10/100/1000M
Net Weight :
3.0 kg
Humidity Range :
5%～95% non-condensing
Brand Name :
MTHGH
Model Number :
IBOX-601
Place of Origin :
China
Expansion Slots :
1*Mini PCIe (MSATA), 1*Mini PCIe (WIFI/3G/4G)
RAM Slot :
1*DDR4 1866/2133 SODIMM
Processor Options :
Intel Core i3-6100U, i5-7200U, i7-6500U
Material :
All aluminum, surface anodic oxidation
Max RAM :
16GB
Description
Industrial Mini PC IBOX-601 Plus
Intel 6th or 7th Generation Core™ i3/i5/i7 Processor
Fanless Industrial PC
Key Features
  • All aluminum structure, fanless design
  • Onboard Intel 6th or 7th Generation Core i3/i5/i7
  • Support 1×DDR4 Slot, Max. Support 16GB
  • Support 1×MSATA Slot, 1×2.5" HDD
  • Support 6×COM (2×RS232/485 Optional)
  • Support DC 9～19V wide voltage input (DC 9～36V Optional)
  • Operating System Support:
Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal
Technical Specifications
Model IBOX-601 Plus
Color Black (Color can be customized)
Material High-quality all aluminum, surface anodic oxidation
Processor Onboard Intel Core i3 6100U (Dual core quad threading, 2.3GHz, TDP: 15W)
Onboard Intel Core i5 7200U (Dual core quad threading, 2.5GHz, Max turbo 3.1GHz)
Onboard Intel Core i7 6500U (Dual core quad threading, 2.5GHz, Max turbo 3.1GHz)
CPU Architecture Skylake-U / KabyLake-U
RAM Support 1×DDR4 1866/2133 SODIMM RAM Slot, Max. Support 16GB
BIOS AMI EFI BIOS
Display Chip Integrated Intel HD Graphics 520/620
Display Port 1×VGA, 1×HDMI
Front I/O 4×USB2.0, 2×COM, 1×Power Switch
Rear I/O 4×USB3.0, 4×COM (COM4,COM5 RS232/485 Optional), 2×Intel 1000M LAN, 1×VGA, 1×HDMI, 1×DC Input, 1×3PIN Power Supply Phoenix Connector, 1×Mic, 1×Line Out
Expansion Slot Support 1×MINI PCIE Slot (Support MSATA); Support 1×MINI PCIE Slot (WIFI/3G/4G Choose one from three), Embedded SIM Slot; Optional Ports: GPIO, PS/2 (Standard version doesn't include these ports)
Network 2×Intel i211-AT 10/100/1000M LAN
Storage Support 1×MSATA Slot, 1×2.5" HDD
Input Voltage Support DC 9～19V Input (DC 9～36V Optional)
Other Function Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level) (Standard version doesn't set these function)
Work Temp 0℃ ～ +50℃ (Commercial HDD), -20℃ ～ +60℃ (Industrial SSD), Surface air flow
Work Humidity 5% ～ 95% non-condensing
Certificates CE, CCC, FCC Class A, ROHS
Dimension 230 × 166 × 68 mm (Not include bracket)
Net Weight 3.0 kg (Not include bracket)
Application Industrial automation, medical, logistics transportation, warehouse, electronic education etc.
Product Drawings
Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal Fanless Industrial Mini PC with Intel Core i5-7200U Processor and 4 COM Ports for Entry Exit Terminal
Standard Accessories
Name Quantity Specification
Power Adapter 1 12V 5A
Power Cord 1 Any Plug Optional (China, US, EU, UK etc.)
Bracket 2 Standard
CD Driver 1 Neutral
Order Configurations
Configuration Model Processor Ports
Configuration 1 IBOX-601 Plus(i3) Intel Core i3 6100U Standard Port
Configuration 2 Intel Core i3 6100U Support 2×RS485
Configuration 3 IBOX-601 Plus(i5) Intel Core i5 7200U Standard Port
Configuration 4 Intel Core i5 7200U Support 2×RS485
Configuration 5 IBOX-601 Plus(i7) Intel Core i7 6500U Standard Port
Configuration 6 Intel Core i7 6500U Support 2×RS485
