Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Specifications
Operating Temperature :
-20℃ -- +50℃
Dimensions :
134 x 126 x 38.5 mm
Processor Core :
Quad Core
Rear I/O :
1xAudio,2xRJ45 LAN,1*VGA,1*HDMI,1*DC Input
Material :
High-quality all aluminum,surface anodic oxidation
Display Chip :
Intel HD Graphics
Storage Options :
1xMSATA，1x2.5”HDD
RAM Slot :
1*DDR3L 1333/1600MHz SODIMMRAM Slot，Max. 8 GB
Front I/O :
1xPower Switch,1xUSB3.0,5xUSB2.0,1*RS232 COM
Input Voltage :
Support DC 12V Input
Display Ports :
1xVGA，1xHDMI
Processor Speed :
1.99GHz,Pulse frequency 2.42GHZ
Work Humidity :
5% ～ 95% non-condensing
Brand Name :
MTHGH
Model Number :
Nano-N3 Plus
Place of Origin :
China
Network :
2x100/1000M RTL8111E 1000M LAN
BIOS :
AMI UEFI BIOS
Processor Model :
J1900
Net Weight :
0.7kg
Certification :
CE,CCC,FCC Class A,ROHS
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000 Set
Delivery Time :
7-10 work days
Packaging Details :
Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.
USB Ports :
1*USB3.0，5*USB2.0
Description
Nano-N3 Plus J1900 4 Core 8G RAM Industrial Mini PC Support OS Windows/Linux
Product Overview

The Industrial Mini PC features 1x MSATA and 1x 2.5" HDD storage options for large data storage and fast access. Equipped with 1x USB 3.0 and 5x USB 2.0 ports for connecting various peripherals. Designed with 1x VGA and 1x HDMI display ports for flexible display options to suit your application needs.

Built to withstand harsh industrial environments with reliable performance. Perfect solution for industrial applications requiring robust computing power in compact form factor.

Key Features

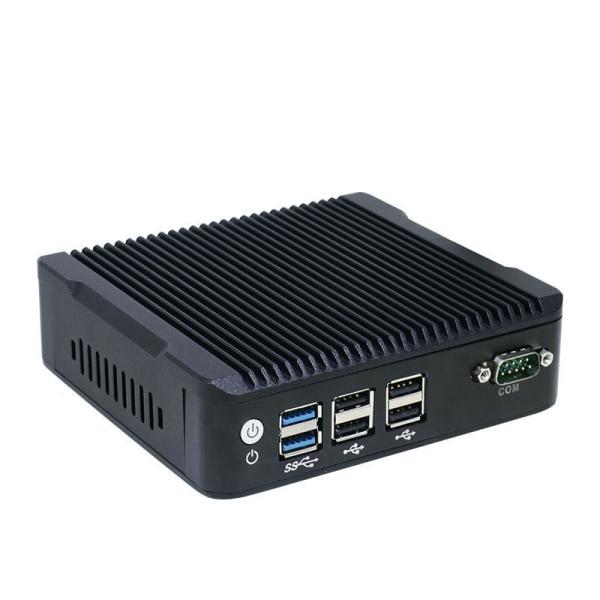

  • All aluminum structure, fanless design
  • Onboard Intel Celeron J1900 quad core processor
  • Support DDR3L Max. 8G RAM
  • Support 1x MSATA, 1x 2.5" HDD
  • Support 2*1000M LAN
  • Support Operating Systems:
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Technical Specifications
Model Nano N3 Plus
Color Black (Color can be customized)
Material High-quality all aluminum, surface anodic oxidation
Processor Intel Celeron J1900 (Quad core quad threading, 1.99GHz, Pulse frequency 2.42GHz)
RAM 1*DDR3L 1333/1600MHz SODIMM RAM slot, Max. 8 GB
BIOS AMI UEFI BIOS
Display Chip Intel HD Graphics
Display Port 1x VGA, 1x HDMI (Support synchronous and asynchronous dual display)
Front I/O 1x Power Switch, 1x USB 3.0, 5x USB 2.0, 1*RS232 COM
Rear I/O 1x Audio, 2x RJ45 LAN, 1*VGA, 1*HDMI, 1*DC Input
Expansion Slot 1x MINI PCIE Slot (WIFI/BT Optional)
1x MINI PCIE Slot (Support MSATA)
Network 2x 100/1000M RTL8111E 1000M LAN
Storage 1x MSATA, 1x 2.5" HDD
Input Voltage Support DC 12V Input
Other Functions Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level)
Work Temperature 0℃--+50℃ (Commercial HDD), -20℃ -- +50℃ (Industrial SSD), Surface air flow
Work Humidity 5% ～ 95% non-condensing
Certificates CE, CCC, FCC Class A, ROHS

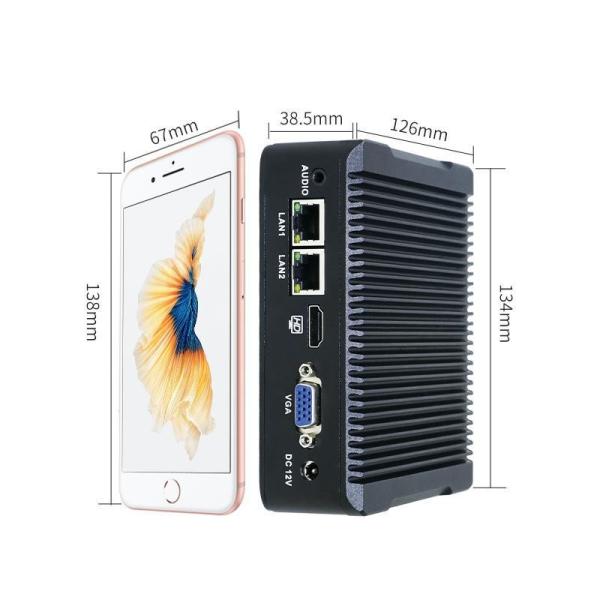

Dimension 134 x 126 x 38.5 mm
Net Weight 0.7kg
Applications

This rugged and durable industrial mini PC is perfect for harsh environments with its fanless design ensuring minimal noise and dust accumulation. Compact form factor allows easy installation in tight spaces with VESA mounting capability.

  • Industrial Automation: Controlling machinery and monitoring production lines
  • Medical: Controlling medical devices and storing patient data
  • Logistics Transportation: Tracking shipments and managing warehouses
  • Warehouse: Managing inventory and tracking orders
  • Electronic Education: Interactive whiteboards and digital signage
Product Images
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
Nano-N3 Plus Industrial Mini PC with Quad Core J1900 Processor, 8GB RAM, and Fanless Design for Harsh Environments
