IBOX-3046 Fanless Industrial Mini PC with 10110U Processor and DC 9V-36V Wide Voltage Input - Quad Core Performance
IBOX-3046 Fanless Industrial Mini PC with 10110U Processor and DC 9V-36V Wide Voltage Input - Quad Core Performance
IBOX-3046 Fanless Industrial Mini PC with 10110U Processor and DC 9V-36V Wide Voltage Input - Quad Core Performance
IBOX-3046 Fanless Industrial Mini PC with 10110U Processor and DC 9V-36V Wide Voltage Input - Quad Core Performance
IBOX-3046 Fanless Industrial Mini PC with 10110U Processor and DC 9V-36V Wide Voltage Input - Quad Core Performance
IBOX-3046 Fanless Industrial Mini PC with 10110U Processor and DC 9V-36V Wide Voltage Input - Quad Core Performance
IBOX-3046 Fanless Industrial Mini PC with 10110U Processor and DC 9V-36V Wide Voltage Input - Quad Core Performance
IBOX-3046 Fanless Industrial Mini PC with 10110U Processor and DC 9V-36V Wide Voltage Input - Quad Core Performance
IBOX-3046 Fanless Industrial Mini PC with 10110U Processor and DC 9V-36V Wide Voltage Input - Quad Core Performance
IBOX-3046 Fanless Industrial Mini PC with 10110U Processor and DC 9V-36V Wide Voltage Input - Quad Core Performance
IBOX-3046 Fanless Industrial Mini PC with 10110U Processor and DC 9V-36V Wide Voltage Input - Quad Core Performance
IBOX-3046 Fanless Industrial Mini PC with 10110U Processor and DC 9V-36V Wide Voltage Input - Quad Core Performance
Specifications
RAM :
1*DDR4 2400/2666 SODIMM, Max 32GB
COM Ports :
2*COM (RS232/RS422/485)
Display Chip :
Intel UHD Graphics
Work Humidity :
5% ~ 95% non-condensing
Material :
Aluminum alloy chassis
Processor Core :
Quad Core
BIOS :
AMI EFI BIOS
Brand Name :
MTHGH
Model Number :
IBOX-3046
Place of Origin :
China
USB Ports :
2*USB2.0, 4*USB3.0
Weight :
1.45 kg
Expansion Slots :
1*M.2 M-Key 2280, 1*MINI PCIE Slot
Storage :
1*M.2 2280 Slot, 1*2.5" HDD, RAID 0/1
Work Temperature :
0℃ ~ +50℃ (Commercial HDD), -20℃ ~ +60℃ (Industrial SSD)
Display Ports :
1*VGA, 1*HDMI
Size :
280 * 143 * 40 mm
Certification :
CE,CCC,FCC Class A,RoHS
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000 Set
Delivery Time :
7-10 work days
Packaging Details :
Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.
Input Voltage :
DC 9V-36V
Processor Model :
10110U,8260U,10810U
Power Adapter :
Optional 12V 5A (7.5A for i7-10810U)
Network :
4*Intel I210/i211-AT 10/100/1000M LAN
Description
IBOX-3046 Fanless Industrial Mini PC 10110U Processor DC 9V-36V Wide Voltage Input
Product Overview

This Industrial Mini PC features a M.2 2280 slot and 2.5" HDD for ample storage capacity, with RAID 0/1 support for data security. Available in titanium gray with customization options, it includes multiple USB ports and compact dimensions of 280 × 143 × 40 mm for space-constrained environments.

Key Features
  • Fanless design for durability in harsh environments
  • Multiple processor options: Celeron 4205U, Core i3-10110U, Core i5-8260U, Core i7-10810U
  • 4× Intel I210/i211-AT Gigabit LAN ports
  • DC 9V-36V wide voltage input with reverse polarity protection
  • Compact size: 280 × 143 × 40 mm
  • Multiple display outputs: VGA and HDMI with dual display support
  • Industrial certifications: CE, CCC, FCC Class A, RoHS
Technical Specifications
Specification Details
Model IBOX-3046
Processor Options Intel Celeron 4205U (Dual core, 1.8GHz)
Intel Core i3-10110U (Dual core, 2.10GHz, Turbo 4.1GHz)
Intel Core i5-8260U (Quad core, 1.6GHz, Turbo 3.9GHz)
Intel Core i7-10810U (Six core, 1.10GHz, Turbo 4.9GHz)
RAM 1× DDR4 2400/2666 SODIMM, up to 32GB
Storage 1× M.2 2280 slot, 1× 2.5" HDD, supports RAID 0/1
Display Ports 1× VGA, 1× HDMI (synchronous/asynchronous dual display)

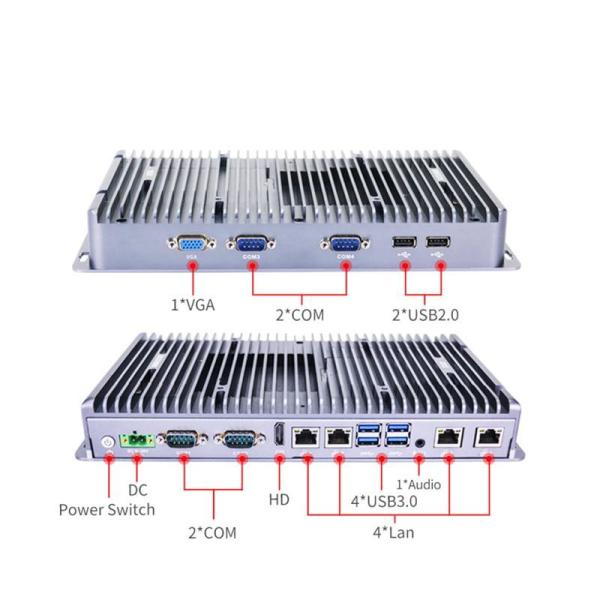

I/O Ports Front: 2× USB 2.0, 2× COM
Rear: 4× USB 3.0, 4× Gigabit LAN, 2× COM, Audio, Power connector
Network 4× Intel i210/i211-AT 10/100/1000M LAN
Input Voltage DC 9V-36V wide voltage input
Operating Temperature 0℃ to +50℃ (Commercial HDD)
-20℃ to +60℃ (Industrial SSD)
Dimensions 280 × 143 × 40 mm
Weight 1.45 kg
Product Drawing
IBOX-3046 Fanless Industrial Mini PC with 10110U Processor and DC 9V-36V Wide Voltage Input - Quad Core Performance

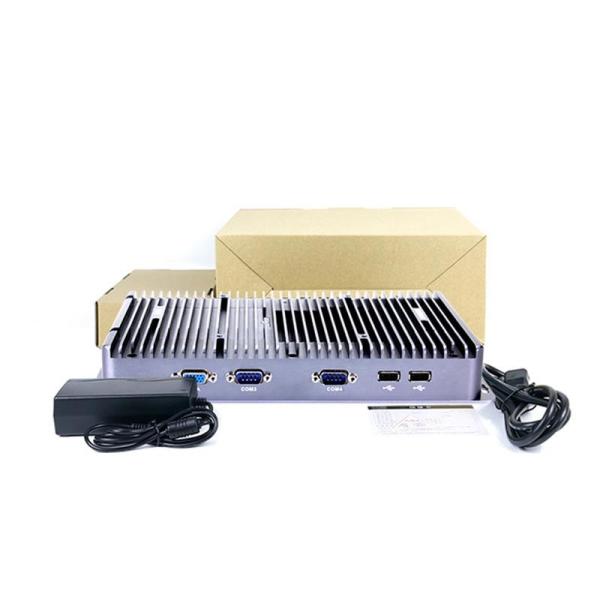

Included Accessories
Name Quantity Specification
Power Adapter 1 Optional 12V 5A (12V 7.5A recommended for i7-10810U)
Power Cord 1 Any plug optional (China, US, EU, UK, etc.)
Order Configurations
Configuration Model Processor Ports
Configuration 1 IBOX-3046 Intel Celeron 4205U Standard Port
Configuration 2 IBOX-3046 Core i3-10110U Standard Port
Configuration 3 IBOX-3046 Intel Core i5-8260U Standard Port
Configuration 4 IBOX-3046 Intel Core i7-10810U Standard Port
Note: Expansion function ports may conflict with standard version ports. Please consult with us if you require expansion function ports.
Applications

The IBOX-3046 is designed for demanding industrial environments including industrial automation, medical equipment, logistics transportation, warehouse management, data acquisition, motion control, and vehicle applications. Its rugged construction and wide operating temperature range make it suitable for harsh conditions.

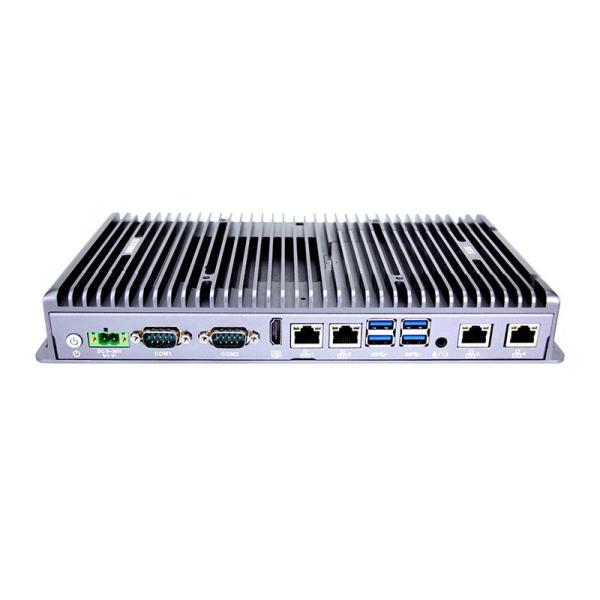

Product Images
IBOX-3046 Fanless Industrial Mini PC with 10110U Processor and DC 9V-36V Wide Voltage Input - Quad Core Performance IBOX-3046 Fanless Industrial Mini PC with 10110U Processor and DC 9V-36V Wide Voltage Input - Quad Core Performance IBOX-3046 Fanless Industrial Mini PC with 10110U Processor and DC 9V-36V Wide Voltage Input - Quad Core Performance IBOX-3046 Fanless Industrial Mini PC with 10110U Processor and DC 9V-36V Wide Voltage Input - Quad Core Performance IBOX-3046 Fanless Industrial Mini PC with 10110U Processor and DC 9V-36V Wide Voltage Input - Quad Core Performance IBOX-3046 Fanless Industrial Mini PC with 10110U Processor and DC 9V-36V Wide Voltage Input - Quad Core Performance IBOX-3046 Fanless Industrial Mini PC with 10110U Processor and DC 9V-36V Wide Voltage Input - Quad Core Performance IBOX-3046 Fanless Industrial Mini PC with 10110U Processor and DC 9V-36V Wide Voltage Input - Quad Core Performance IBOX-3046 Fanless Industrial Mini PC with 10110U Processor and DC 9V-36V Wide Voltage Input - Quad Core Performance IBOX-3046 Fanless Industrial Mini PC with 10110U Processor and DC 9V-36V Wide Voltage Input - Quad Core Performance
