Specifications
Processor Core :
Quad Core
Back I/O :
1*2Pin Phoenix, 1*HDMI, 1*DP, 4*USB3.0, 2*USB2.0, 3*Intel I225-v 2.5G LAN, 1*audio&Mic
Input Voltage :
DC 12V
Work Humidity :
5% ~ 95% Non-condensing
Memory Slot :
1*DDR4 3200MHz SODIMM, Max. 32GB
Expansion Slots :
1*M.2 M-Key 2280, 1*MINI PCIE, 1*M.2 B-key 3042/3052
Network Ports :
3*Intel I225-V 2.5G LAN
Processor Models :
1115G4, 1135G7, 1165G7
Work Temperature :
0℃ ~ +50℃ (business HDD), -20℃ ~ +60℃ (industrial SSD)
Display Chip :
Intel HD Graphics / Intel Iris(R)Xe Graphics
RAM Slot :
1*DDR4 2400/2666 SODIMM, Max. 32GB
Display Ports :
1*HDMI, 1*DP
Front I/O :
1*Power button, 1*16 pins GPIO, 6*COM ports
Certification :
CE、CCC、FCC Class A、RoHS
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000 Set
Delivery Time :
7-10 work days
Packaging Details :
Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.
Weight :
2.4kg
Brand Name :
MTHGH
Model Number :
IBOX-3126
Place of Origin :
China
Storage Options :
1*M.2 NVME, 1*2.5 inch HDD
Size :
230 * 152 * 68 Mm
Chassis Material :
High quality all aluminium alloy with hard anodized surface
USB Ports :
4*USB3.0, 2*USB2.0
Description
Quad Core IBOX-3126 Mini PC 3*Intel I225-V 2.5G LAN Industrial Workstation
Product Overview

The IBOX-3126 Industrial Mini PC supports DC 12V input voltage, making it ideal for industrial settings where stable and reliable power is essential. This compact workstation features comprehensive connectivity options and fanless operation for noise-sensitive environments.

Key Features
  • All-in-One Industrial PC - Industrial Mini PC Design
  • RAM: 1×DDR4 2400/2666 SODIMM Memory Slot, Max. Support 32GB
  • Ports: 4×USB 3.0, 2×USB 2.0, HDMI, VGA
  • Network: 3×Intel I225-V 2.5G LAN
  • Certificates: CE, CCC, FCC Class A, RoHS
  • Processor Models: 1115G4, 1135G7, 1165G7
  • Industrial Fanless Mini PC Operation
Technical Specifications
SpecificationDetails
ModelIBOX-3126
ColorBlack (customizable)
ChassisHigh quality aluminium alloy with hard anodized surface, Fan intelligent heat dissipation
ProcessorOnboard Intel Core i3 1115G4 (Dual core 4 threads, 3.0 GHz, Turbo 4.1GHz)
Onboard Intel Core i5 1135G7 (Quad core 8 threads, 2.4 GHz, Turbo 4.2 GHz, 8MB cache)
Onboard Intel Core i7 1165G7 (Quad core 8 threads, 2.8 GHz, Turbo 4.7 GHz, 12MB cache)
MemorySupport 1×DDR4 3200MHz SODIMM memory slot, Max. 32GB
BIOSAMI UEFI BIOS
Display ChipIntegrated Intel HD Graphics / Intel Iris(R) Xe Graphics
Display Port1×HDMI FHD Display port, 1×DP (Support Synchronous or asynchronous display)
Front I/O1×Power button, 1×16 pins GPIO Phoenix terminal, 6×COM ports (COM1 & COM2 can be option RS232/RS485)
Back I/O1×2Pin Phoenix terminal, 1×HDMI, 1×DP, 4×USB3.0, 2×USB2.0, 3×Intel I225-v 2.5G LAN, 1×audio & Mic
Expansion SlotSupport 1×M.2 M-Key 2280 slot (support NVME)
Support 1×MINI PCIE slot (support WIFI/Bluetooth)
Support 1×M.2 B-key slot 3042/3052 (support 4G), with SIM card slot
Can be expand (standard without): 2×USB2.0
Network3×Intel i225-V 2.5G LAN
StorageSupport 1× M.2 slot (support NVME), 1×2.5 inch HDD
Input VoltageSupport DC 12V input
Additional FunctionsAuto power on, Timing boot, Wake on LAN, PXE boot, Watchdog (0-255 level)
Work Temperature0℃ - +50℃ (business HDD), -20℃ - +60℃ (industrial SSD)
Work Humidity5% - 95% Non-condensing state
CertificationCE, CCC, FCC Class A, RoHS
Dimension230 × 152 × 68 mm
Weight2.4kg (without wall mount)
ApplicationIndustrial automation, medical, logistics transportation, warehouse, E-education, etc.
Product Drawing
Quad Core IBOX-3126 Industrial Mini PC with 3*Intel I225-V 2.5G LAN and Fanless Design for Industrial Automation
Accessories List
NameQuantityNote
Adapter1i3 1115G4 advise 12V 7.5A
Adapter1i5-1135G7 advise 12V 7.5A
Adapter1i7-1165G7 advise 12V 10A
Power cable1Can be option CN, US, UK, EU, etc.
Qualified certification1Yanling logo/Neutral
Warranty card1Yanling logo/Neutral
Wall mount2Used for Standard configuration
Order Information
ConfigurationDetails
Config 1IBOX-3126 | Intel Core i3 1115G4 | Standard I/O
Config 2Intel Core i5 1135G7 | Standard I/O
Config 3Intel Core i7 1165G7 | Standard I/O
Applications

The IBOX-3126 fanless industrial mini PC is designed for various industrial applications including factory automation, machine vision, digital signage, and industrial control systems. Its robust construction and wide operating temperature range make it suitable for demanding environments with high levels of dust, vibration, and shock.

Ideal for: Industrial automation, medical equipment, logistics transportation, warehouse management, E-education, and industrial touch panel applications.

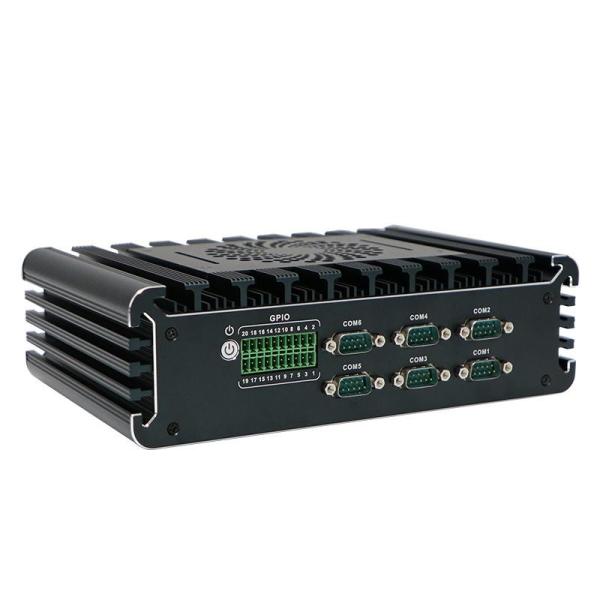

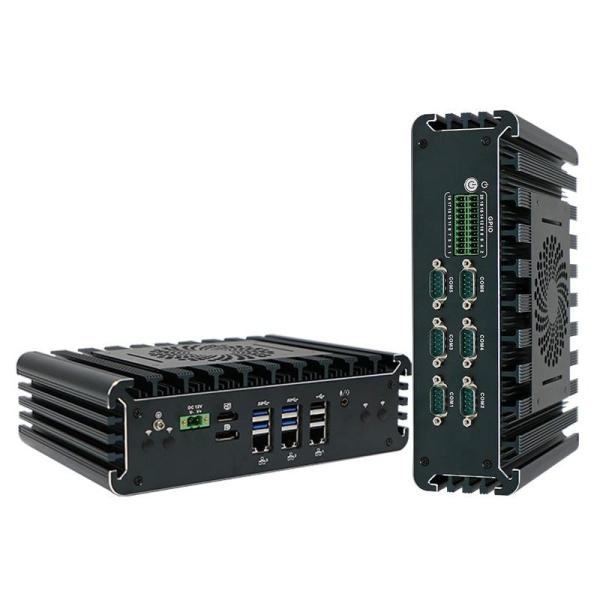

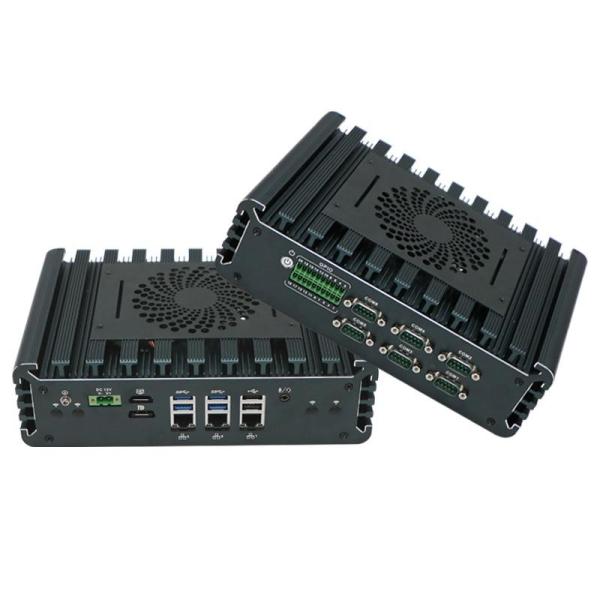

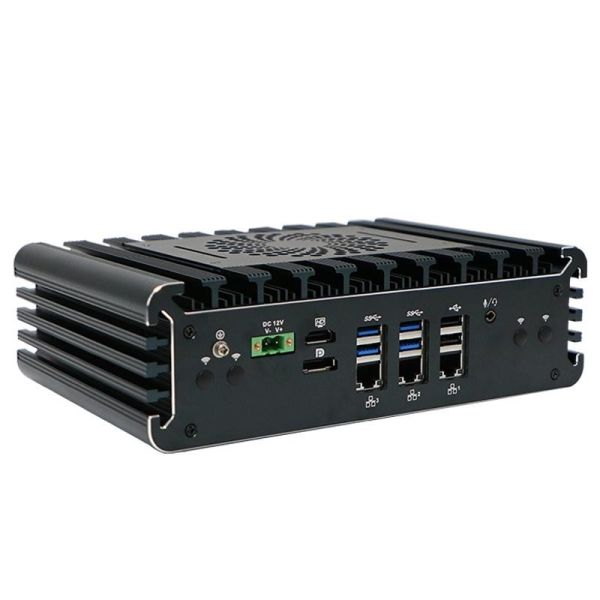

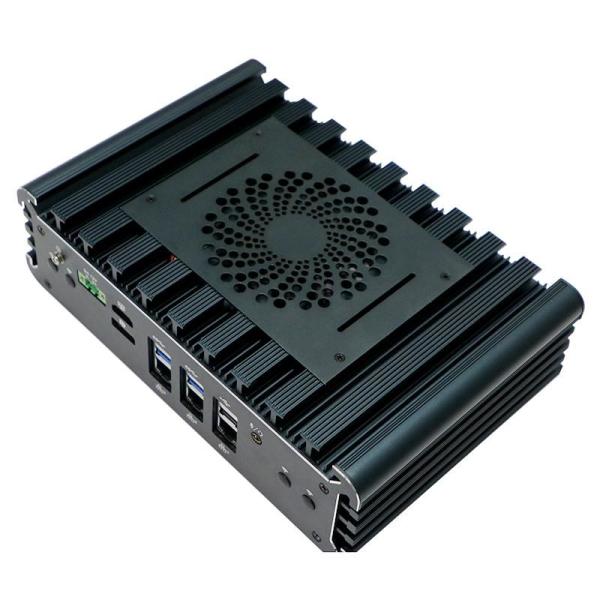

Product Images
