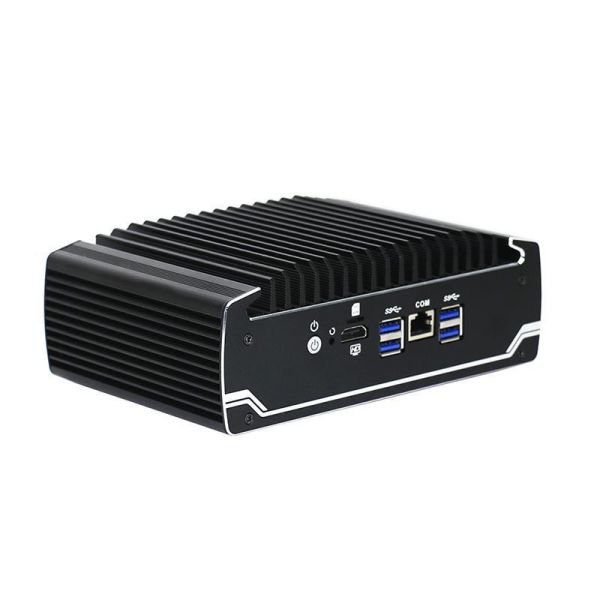

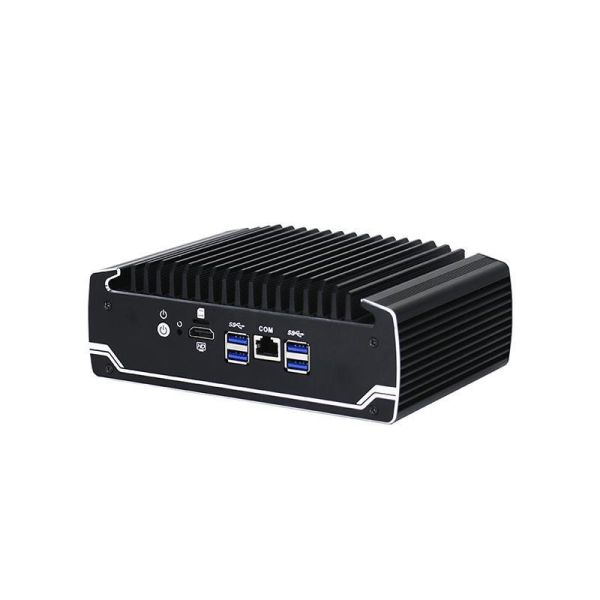

IBOX-501 N18 Fanless Industrial Mini PC Quad Core with 32 GB RAM and MSATA Slot
IBOX-501 N18 Fanless Industrial Mini PC Quad Core with 32 GB RAM and MSATA Slot
IBOX-501 N18 Fanless Industrial Mini PC Quad Core with 32 GB RAM and MSATA Slot
IBOX-501 N18 Fanless Industrial Mini PC Quad Core with 32 GB RAM and MSATA Slot
IBOX-501 N18 Fanless Industrial Mini PC Quad Core with 32 GB RAM and MSATA Slot
IBOX-501 N18 Fanless Industrial Mini PC Quad Core with 32 GB RAM and MSATA Slot
IBOX-501 N18 Fanless Industrial Mini PC Quad Core with 32 GB RAM and MSATA Slot
IBOX-501 N18 Fanless Industrial Mini PC Quad Core with 32 GB RAM and MSATA Slot
IBOX-501 N18 Fanless Industrial Mini PC Quad Core with 32 GB RAM and MSATA Slot
IBOX-501 N18 Fanless Industrial Mini PC Quad Core with 32 GB RAM and MSATA Slot
IBOX-501 N18 Fanless Industrial Mini PC Quad Core with 32 GB RAM and MSATA Slot
IBOX-501 N18 Fanless Industrial Mini PC Quad Core with 32 GB RAM and MSATA Slot
IBOX-501 N18 Fanless Industrial Mini PC Quad Core with 32 GB RAM and MSATA Slot
IBOX-501 N18 Fanless Industrial Mini PC Quad Core with 32 GB RAM and MSATA Slot
IBOX-501 N18 Fanless Industrial Mini PC Quad Core with 32 GB RAM and MSATA Slot
IBOX-501 N18 Fanless Industrial Mini PC Quad Core with 32 GB RAM and MSATA Slot
IBOX-501 N18 Fanless Industrial Mini PC Quad Core with 32 GB RAM and MSATA Slot
IBOX-501 N18 Fanless Industrial Mini PC Quad Core with 32 GB RAM and MSATA Slot
IBOX-501 N18 Fanless Industrial Mini PC Quad Core with 32 GB RAM and MSATA Slot
IBOX-501 N18 Fanless Industrial Mini PC Quad Core with 32 GB RAM and MSATA Slot
IBOX-501 N18 Fanless Industrial Mini PC Quad Core with 32 GB RAM and MSATA Slot
IBOX-501 N18 Fanless Industrial Mini PC Quad Core with 32 GB RAM and MSATA Slot
Specifications
Certification :
CE、CCC、FCC Class A、ROHS
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000 Set
Delivery Time :
7-10 work days
Packaging Details :
Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.
Storage :
1*MSATA Slot,1*2.5” HDD
Processor Core :
Quad Core
Work Humidity :
0% ～ 95% non-condensing
Expansion Slots :
1* half height MINI PCIE slot,1* Full height MINI PCIE slot
Brand Name :
MTHGH
Model Number :
Nano-N18
Place of Origin :
China
Network Ports :
6*Intel I211-AT / I210-AT 10/100/1000M LAN
Dimension :
186*126.5*66 mm
RAM Type :
DDR4 2133/2400 MHz SODIMM
Weight :
1.3 kg
Front I/O :
4*USB3.0,1*Power Switch,1*RJ45 COM,1* HDMI
Input Voltage :
DC 12V
RAM :
32 GB
Rear I/O :
6*RJ45 1000M Lan, 1*DC
Operating Temp :
-20℃ ～ +50℃
Display Chip :
Integrated Intel UHD Graphics 620
Display Port :
1*VGA,1*HDMI
Processor Model :
3867U,8250U,8550U
RAM Slots :
2
USB Ports :
1*USB3.0,4*USB2.0
Description
IBOX-501 N18 Fanless Industrial Mini PC Quad Core 32 GB Storage With MSATA
Product Overview

The IBOX-501 N18 is a powerful fanless industrial mini PC designed for demanding industrial applications. Featuring multiple USB ports, six Gigabit LAN ports, and dual display outputs, this system provides reliable performance in harsh environments while operating silently and efficiently.

Key Features
  • 6× Intel I211-AT/I210-AT 10/100/1000M LAN ports
  • 1× USB 3.0 and 4× USB 2.0 ports
  • 1× VGA and 1× HDMI display outputs
  • Fanless design with advanced cooling technology
  • Multiple processor options: Celeron 3867U, Core i5-8250U, or Core i7-8550U
  • Up to 32GB DDR4 RAM support
  • 1× mSATA slot and 1× 2.5" HDD storage
  • Industrial-grade construction with all-aluminum chassis
Technical Specifications
Model IBOX-501 N18
Color Black (customizable)
Material High-quality all aluminum with surface anodic oxidation
Processor Options Intel Celeron 3867U (Dual core, 1.8GHz, 2MB Cache)
Intel Core i5 8250U (Quad core, 1.6GHz, Turbo 3.4GHz, 6MB Cache)
Intel Core i7 8550U (Quad core, 1.8GHz, Turbo 4.0GHz, 8MB Cache)
RAM 2× DDR4 2133/2400 MHz SODIMM slots, Max. 32GB
Display Chip Integrated Intel UHD Graphics 620
Display Ports 1× HDMI (no sound output), 1× VGA
Front I/O 4× USB 3.0, Power Switch, RJ45 COM (Console), HDMI
Rear I/O 6× RJ45 1000M LAN, DC Input
Expansion 1× half-height Mini PCIe (WiFi/BT optional)
1× full-height Mini PCIe (mSATA/4G support with Nano-SIM slot)
Storage 1× mSATA slot, 1× 2.5" HDD
Input Voltage DC 12V
Additional Functions Auto power-on, Timing boot, Wake on LAN, PXE boot, Watchdog (0-255 level)
Operating Temperature 0℃ to +50℃ (Commercial HDD), -20℃ to +50℃ (Industrial SSD)
Operating Humidity 0% to 95% non-condensing
Certifications CE, CCC, FCC Class A, ROHS
Dimensions 186 × 126.5 × 66 mm
Net Weight 1.3 kg
Applications Firewall, VPN, Network server, Network security, Router
Product Drawing
IBOX-501 N18 Fanless Industrial Mini PC Quad Core with 32 GB RAM and MSATA Slot
Included Accessories
Name Quantity Specification
Power Adapter 1 i5-8250U: 12V 5A
i7-8550U: 12V 7.5A
Power Cord 1 Any plug optional (China, US, EU, UK, etc.)
Certificate of Approval 1 Neutral
Warranty Card 1 Neutral
VESA Bracket 1 Standard
Order Configurations
Configuration Model Processor Ports
Configuration 1 N18 Intel Celeron 3867U Standard Port
Configuration 2 N18 Intel Core i5 8250U Standard Port
Configuration 3 N18 Intel Core i7 8550U Standard Port
Applications

The IBOX-501 N18 industrial mini PC is engineered for reliable performance in various demanding scenarios. Its robust construction and industrial-grade components make it suitable for firewall, VPN, network server, network security, and router applications. The system withstands extreme temperatures, vibrations, and shocks, ensuring continuous operation in harsh industrial environments.
