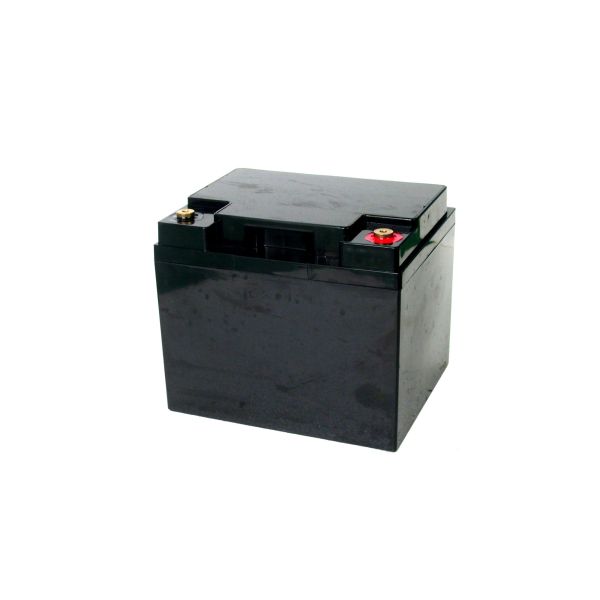

12V 40AH AGM Gel Battery Maintenance Free Long Life High Cycling Ability for Solar UPS Systems
12V 40AH AGM Gel Battery Maintenance Free Long Life High Cycling Ability for Solar UPS Systems
Specifications
Nominal Voltage :
12Volt
Approx Weight :
14KG
Application :
Solar System UPS Systems
Screw Hole Size :
M6
Brand Name :
FBATTERY
Rated Capacity :
40AH
Dimension :
197(mm)×165(mm)×172(mm)
Battery Case :
ABS
Type :
AGM Gel Battery
Model Number :
6GFM-40G
Certification :
CE UL ISO9001 ISO14001 OHSAS18001
Place of Origin :
Wuhan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T L/C,D/A,D/P
Supply Ability :
10000PCS/30Days
Delivery Time :
30DAYS
Packaging Details :
Carton and Wooden Pallet
Description
12V 40AH AGM Gel Battery For Solar System UPS Systems
Product Overview

High-performance 12V 40AH AGM Gel Battery designed for solar systems, UPS systems, and various industrial applications. Featuring advanced AGM technology for reliable power storage and long service life.

Key Advantages
  • Higher cycle charging capacity with extended service life
  • Superior capacitance stability throughout entire life cycle
  • Reliable low-temperature performance
  • Reduced accident and environmental pollution risks due to 100% acid sealing
  • Simple maintenance with reduced deep discharge requirements
Structure & Working Principle
  • Positive Plate: Thick high Sn low Ca grid minimizes corrosion and prolongs life
  • Negative Plate: Balanced Pb-Ca grid for improved recombination efficiency
  • Separator: Advanced AGM separator for ultra low float current
  • Electrolyte: Dilute high purity sulphuric acid with nano gel
  • Battery Container and Cover: ABS material
  • Pillar Seal: 100% factory tested, proven two layers epoxy resin seal
  • Relief Valve: Complete with integrated flame arrestor
Technical Specifications
TypeAGM Gel Battery
Nominal Voltage12V
Rated Capacity40Ah (10 Hr, 10.8V, 25℃)
Approx Dimensions197mm × 165mm × 172mm
Battery Designed Life10 years
Approx Weight12.8kg
Applicable Temperature-40℃ to 60℃
Optimum Temperature20℃ to 25℃
Self-discharge<0.1% per day (20℃)
Container MaterialABS
Screw Hole SizeM6
Constant Current Discharge Ratings
F.V/Time5min10min15min30min1h2h3h4h5h6h7h8h9h10h20h
1.6V128.087.970.648.533.314.410.58.47.06.15.44.94.54.12.4
1.65V118.582.766.647.432.614.110.48.37.06.15.44.94.44.12.4
1.7V109.077.562.746.331.813.810.38.27.06.15.44.94.44.12.4
1.75V99.672.358.745.231.113.410.18.16.96.05.44.84.44.12.4
1.8V90.167.154.744.130.313.110.08.06.96.05.44.84.44.12.4
Constant Power Discharge Ratings
F.V/Time5min10min15min30min1h2h3h4h5h6h7h8h9h10h20h
1.6V218.8151.2127.891.763.327.420.216.113.812.010.79.78.88.14.7
1.65V202.7142.3120.689.661.926.819.915.913.712.010.69.68.88.14.7
1.70V186.5133.3113.487.560.426.119.715.713.711.910.69.68.88.14.7
1.75V170.3124.4106.285.459.025.519.415.513.611.910.69.68.78.14.7
1.8V154.1115.499.083.357.624.919.215.313.511.810.69.68.78.04.7
Application Fields

Solar Power Systems, Wind Energy Storage Systems, UPS systems, switchgear, CATV and telecommunication systems, electric wheelchairs, medical equipment, washing machines, and various industrial applications.

Performance Advantages
Long Life

VRLA gel type battery uses high-tin alloy positive grids and thick plates with special additives. 40% DOD cycle life exceeds 3000 cycles per IEC 60896-22-2004 standards.

Super Overdischarge Tolerance

After 5 over-discharge cycles causing short circuits, battery capacity restoration exceeds 95%.

High Cycling Ability

Special gel electrolyte additives and high-temperature curing process delay active material softening, improving deep cycle endurance and anti-passivation capability.

Excellent High-current Performance

Tight assembly design reduces plate distance, enhancing high current discharge performance.

Safety

Corrosion-resistant rubber O-rings and special adhesive seal terminals, ensuring no acid leakage and reliable operation.

Maintenance Free

Low liquid design with gas recombination eliminates need for water or acid addition.

Various Installation Types

Special AGM separator absorbs electrolyte, allowing both vertical and horizontal mounting positions.
