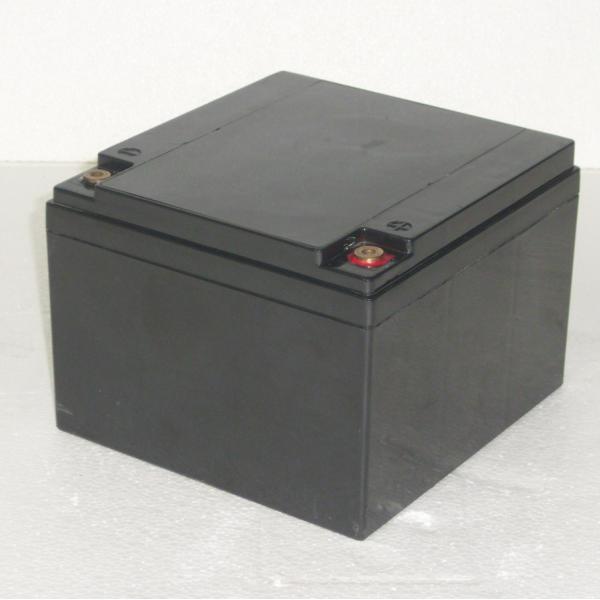

12V24AH AGM Gel Battery with 15 Years Design Life, 24AH Rated Capacity and Female Copper Insert M5 Terminal
12V24AH AGM Gel Battery with 15 Years Design Life, 24AH Rated Capacity and Female Copper Insert M5 Terminal
Specifications
Rated Capacity :
24Ah(10 Hr,10.8V,25℃)
Nominal Voltage :
12V
Model Number :
6GFM-24G
Certification :
CE UL ISO9001 ISO14001 OHASA18001
Place of Origin :
WUHAN
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T,D/P,L/C
Supply Ability :
10000PCS/Week
Delivery Time :
30Days
Packaging Details :
Carton and Wooden Pallet
Terminal Type :
Female Copper Insert M5
Dimensions :
L166×W175×H125mm
Battery Case :
ABS
Approx Weight :
8.0kg
Description
12V24AH AGM Gel Battery Female Copper Insert M5 12V Series SLA Gel Battery
Product Overview

12V24AH VRLA Deep Cycle Battery AGM Gel Battery Battery 12V Series SLA Gel Battery

By combining newly developed nano gel electrolyte with advanced AGM structures, we created the innovative AGM gel battery (G type). This type offers 15 years design life with very high deep cycling capability.

This series is highly suited to telecom outdoor applications, renewable energy systems, and other harsh environment applications.

Product Structure and Working Principle
  • Positive plate: Thick high Sn low Ca grid minimizes corrosion and prolongs life
  • Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
  • Separator: Advanced AGM separator for ultra low float current
  • Electrolyte: Dilute high purity sulphuric acid with nano gel
  • Battery container and cover: ABS material
  • Pillar seal: 100% factory tested, proven two layers epoxy resin seal
  • Relief valve: Complete with integrated flame arrestor
Specifications
Type
AGM Gel Battery
Nominal Voltage
12V
Rated Capacity
24Ah (10 Hr, 10.8V, 25℃)
Approx Dimensions (mm)
L166 × W175 × H125mm
Cycle Life
≥ 3 years
Approx Weight
8.0kg
Applicable Temperature
-40℃ ~ 60℃
Optimum Temperature
20℃ ~ 25℃
Self-discharge
Self-discharge rate < 0.1% per day (20℃)
Materials for Battery Containers and Covers
ABS
Screw Hole Size
M5
Constant Current Discharge Ratings - Amperes at 25°C
F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 6h 7h 8h 9h 10h 20h
1.6V73.048.438.025.216.78.26.14.94.23.73.32.92.72.51.5
1.65V67.645.535.924.616.38.16.04.94.23.63.22.92.72.51.5
1.7V62.242.633.724.115.97.96.04.84.13.63.22.92.72.51.5
1.75V56.839.831.623.515.67.75.94.84.13.63.22.92.72.51.5
1.8V51.436.929.522.915.27.55.84.74.13.63.22.92.72.51.5
Constant Power Discharge Ratings - Watts at 25°C
F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 6h 7h 8h 9h 10h 20h
1.6V124.883.268.847.631.715.711.79.58.27.26.45.85.45.03.0
1.65V115.678.365.046.531.015.311.69.48.17.26.45.85.34.93.0
1.70V106.373.461.145.530.314.911.49.28.17.16.45.85.34.93.0
1.75V97.168.457.244.429.614.611.39.18.17.16.45.85.34.93.0
1.8V87.963.553.443.328.814.211.29.08.07.06.45.85.34.92.9
Application Fields

This series is highly suited for very unreliable power applications requiring the batteries to provide extra cyclic life performance such as outdoor applications, small renewable energy systems, and electric vehicles.

Advantages
  • Long Life: VRLA gel type battery uses high-tin alloy positive grids and thick plates to reduce utilization of active material. It has special additives. Its 40% DOD cycle life can reach over 3000 times as per IEC 60896-22-2004 requirements.
  • Super Overdischarge Tolerance: After 5 times of over-discharges which cause short circuit, battery capacity restoration can reach more than 95%.
  • High Cycling Ability: Special gel electrolyte additives, curing process at high temperature and high humidity delay softening of active material, improving deep cycle endurance and anti-passivation capability of positive plates.
  • Excellent High-current Performance: Tight assembly design reduces distance of battery plates, improving high current discharge performance.
  • Safety: Rubber O-ring with strong corrosion resistance and special adhesive seal battery terminals, ensuring no acid leakage and safe, reliable operation.
  • Maintenance Free: Low liquid type design recombines generated gases into water; no need to add water or acid.
  • Various Installation Types: Special AGM separator absorbs electrolyte with no free acid inside, allowing both vertical and horizontal mounting positions.
