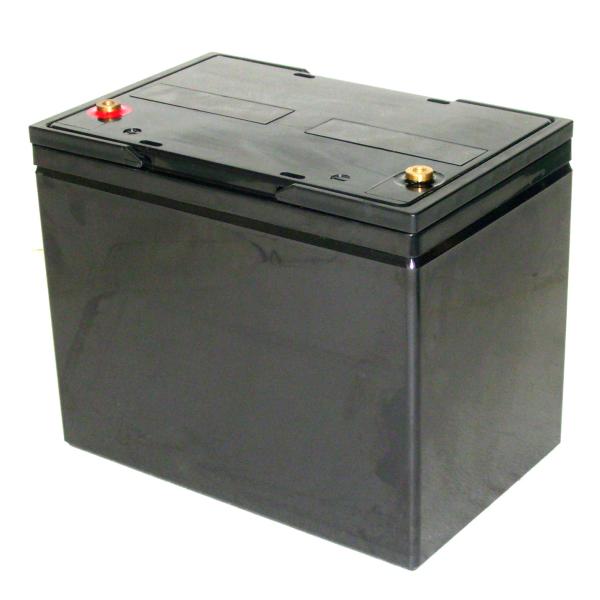

AGM Gel Battery 12V80AH Rechargeable Gel Battery with 15 Years Design Life and High Cycling Capability
AGM Gel Battery 12V80AH Rechargeable Gel Battery with 15 Years Design Life and High Cycling Capability
Specifications
Approx Weight :
28.5 Kg
Nominal Voltage :
12V
Battery Designed Life :
15 Years
Terminal Type :
Female Copper Insert M6
Dimension :
L259mm x W168mm x H213mm
Model Number :
6GFM-80G
Certification :
CE UL ISO9001 ISO14001 OHASA18001
Place of Origin :
WUHAN
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T,D/P,L/C
Supply Ability :
10000PCS/Week
Delivery Time :
30Days
Packaging Details :
Carton and Wooden Pallet
Rated Capacity :
80AH
Applicaton :
Small RE Systems, Electric Vehicles, Telecom Outdoor Applications
Battery Case :
ABS
Type :
AGM Gel Battery
Brand Name :
FBATTERY
Description
AGM 12V80AH Rechargeable Gel Battery
High Cycling Capability Battery, 28.5kg
Product Overview
12V80AH Rechargeable Gel Battery AGM Gel Battery with Long Life
By combining newly developed nano gel electrolyte with advanced AGM structures, we created the innovative AGM gel battery (G type) offering 15 years design life with exceptional deep cycling capability.
This series is highly suited for telecom outdoor applications, renewable energy systems, and other harsh environment applications.
Product Structure & Working Principle
  • Positive plate: Thick high Sn low Ca grid minimizes corrosion and prolongs life
  • Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
  • Separator: Advanced AGM separator for ultra low float current
  • Electrolyte: Dilute high purity sulphuric acid with nano gel
  • Battery container and cover: ABS material
  • Pillar seal: 100% factory tested, proven two layers epoxy resin seal
  • Relief valve: Complete with integrated flame arrestor
Specifications
TypeAGM Gel Battery
Nominal Voltage12V
Rated Capacity80Ah (10 Hr, 10.8V, 25℃)
Approx Dimensions (mm)L259 × W168 × H213
Cycle Life≥3 years
Approx Weight28.5kg
Applicable Temperature-40℃ to 60℃
Optimum Temperature20℃ to 25℃
Self-discharge<0.1% per day (20℃)
Container MaterialABS
Screw Hole SizeM6
Constant Current Discharge Ratings (Amperes at 25°C)
F.V/Time5min10min15min30min1h2h3h4h5h6h7h8h9h10h20h
1.6V280.9176.3134.384.352.929.221.016.613.912.010.69.58.67.94.5
1.65V260.2165.9126.782.451.728.520.816.413.811.910.59.48.67.94.5
1.7V239.4155.5119.280.550.527.920.516.213.711.810.59.48.67.94.5
1.75V218.6145.0111.778.649.327.220.316.013.711.810.59.48.57.84.5
1.8V197.8134.6104.176.648.126.520.015.813.611.710.49.48.57.84.5
Constant Power Discharge Ratings (Watts at 25°C)
F.V/Time5min10min15min30min1h2h3h4h5h6h7h8h9h10h20h
1.6V480.4303.3243.1159.3100.555.540.331.927.223.620.818.717.015.69.0
1.65V444.9285.4229.4155.798.354.239.831.527.123.420.718.717.015.68.9
1.70V409.3267.4215.8152.196.052.939.431.226.923.320.718.717.015.68.9
1.75V373.8249.5202.1148.593.751.738.930.826.823.220.618.616.915.58.9
1.8V338.3231.5188.4144.891.450.438.430.426.723.120.618.616.915.58.9
Application Fields
This series is highly suited for unreliable power applications requiring extra cyclic life performance such as outdoor applications, small renewable energy systems, and electric vehicles.
Key Advantages
  • Long Life: VRLA gel type battery uses high-tin alloy positive grids and thick plates. 40% DOD cycle life can reach over 3000 times as per IEC 60896-22-2004.
  • Super Overdischarge Tolerance: After 5 over-discharges causing short circuit, battery capacity restoration reaches over 95%.
  • High Cycling Ability: Special gel electrolyte additives and curing process delay active material softening, improving deep cycle endurance.
  • Excellent High-current Performance: Tight assembly design reduces plate distance, improving high current discharge performance.
  • Safety: Corrosion-resistant rubber O-ring and special adhesive ensure no acid leakage from terminals.
  • Maintenance Free: Low liquid design recombines gases into water; no need to add water or acid.
  • Various Installation Types: Special AGM separator absorbs electrolyte, allowing both vertical and horizontal mounting positions.
