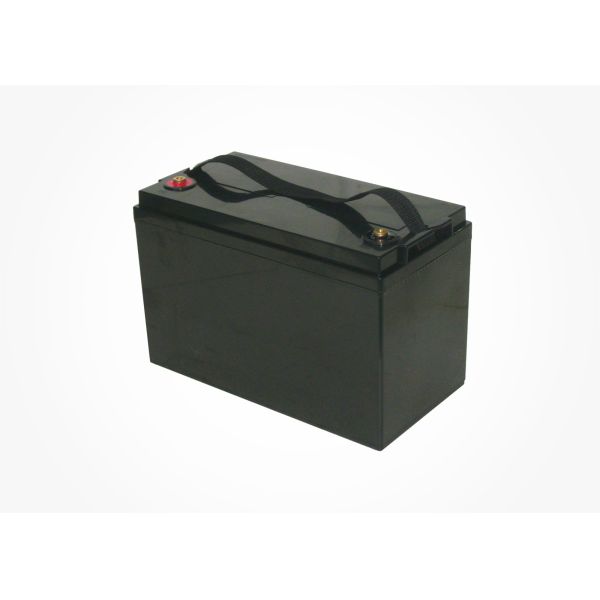

Long Life 15 Years Design Life Solar Deep Cycle Battery with Super Overdischarge Tolerance and 100AH Rated Capacity
Long Life 15 Years Design Life Solar Deep Cycle Battery with Super Overdischarge Tolerance and 100AH Rated Capacity
Specifications
Approx Weight :
30 Kg
Nominal Voltage :
12V
Dimension :
L330mm x W171mm x H220mm
Brand Name :
FBATTERY
Battery Designed Life :
15 Years
Terminal Type :
Female Copper Insert M6 (torque:6~7N.m)
Model Number :
6GFM-100G
Applicaton :
Solar Power System Wind Energy Storage System UPS System Telecom etc.
Battery Case :
ABS
Rated Capacity :
100AH
Type :
Gel Deep Cycle Battery
Certification :
CE UL ISO9001 ISO14001 OHASA18001
Place of Origin :
WUHAN
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T,D/P,L/C
Supply Ability :
10000PCS/Week
Delivery Time :
30Days
Packaging Details :
Carton and Wooden Pallet
Description
Long Life Solar Deep Cycle Battery 12V100AH Sealed Super Overdischarge Tolerance
Product Overview

12V100AH Sealed Maintenance-free Battery AGM Gel Battery Solar Deep Cycle Battery

By combining newly developed nano gel electrolyte with advanced AGM structures, we created the innovative AGM gel battery (G type). This type offers 15 years design life with exceptional deep cycling capability.

This series is highly suited for telecom outdoor applications, renewable energy systems, and other harsh environment applications.

Product Structure & Working Principle
  • Positive plate: Thick high Sn low Ca grid minimizes corrosion and prolongs life
  • Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
  • Separator: Advanced AGM separator for ultra low float current
  • Electrolyte: Dilute high purity sulphuric acid with nano gel
  • Battery container and cover: ABS material
  • Pillar seal: 100% factory tested, proven two layers epoxy resin seal
  • Relief valve: Complete with integrated flame arrestor
Technical Specifications
Type Gel Deep Cycle Battery
Nominal Voltage 12V
Rated Capacity 100Ah (10 Hr, 10.8V, 25℃)
Dimensions (L×W×H) 330mm × 171mm × 220mm
Cycle Life ≥ 3 years
Weight 30kg
Operating Temperature -40℃ to 60℃
Optimum Temperature 20℃ to 25℃
Self-discharge Rate < 0.1% per day (20℃)
Container Material ABS
Screw Hole Size M6
Constant Current Discharge Ratings (Amperes at 25°C)
F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 6h 7h 8h 9h 10h 20h
1.6V332.9214.6166.0107.069.036.126.421.117.815.413.712.411.310.46.1
1.65V308.3201.9156.7104.667.435.326.120.917.715.413.712.311.310.46.1
1.7V283.7189.2147.3102.165.834.525.820.617.615.313.612.311.210.36.1
1.75V259.1176.5138.099.764.333.725.520.417.515.213.612.311.210.36.0
1.8V234.4163.8128.797.362.732.825.120.117.415.113.612.211.210.36.0
Constant Power Discharge Ratings (Watts at 25°C)
F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 6h 7h 8h 9h 10h 20h
1.6V569.3369.1300.4202.2131.168.650.740.634.930.427.024.522.320.612.1
1.65V527.2347.3283.6197.6128.167.150.140.134.730.326.924.422.320.512.1
1.70V485.1325.4266.7193.0125.165.549.539.634.530.126.924.422.220.512.0
1.75V443.0303.6249.8188.4122.164.048.939.134.330.026.824.322.220.412.0
1.8V400.9281.8232.9183.8119.162.448.338.634.229.826.724.222.120.412.0
Application Fields

Solar Power Systems, Wind Energy Storage Systems, UPS systems, switchgear, CATV and telecommunication systems applications, electric wheelchairs, medical equipment, washing machines, and more.

Key Advantages
1. Long Life

VRLA gel type battery uses high-tin alloy positive grids and thick plates to reduce active material utilization. With special additives, its 40% DOD cycle life can reach over 3000 times as per IEC 60896-22-2004 requirements.

2. Super Overdischarge Tolerance

After 5 over-discharges causing short circuits, battery capacity restoration reaches more than 95%.

3. High Cycling Ability

Special gel electrolyte additives and curing processes delay active material softening, effectively improving deep cycle endurance and anti-passivation capability during small load discharge.

4. Excellent High-current Performance

Tight assembly design reduces plate distance, improving high current discharge performance.

5. Safety

Corrosion-resistant rubber O-ring and special adhesive seal terminals, ensuring no acid leakage and safe, reliable operation.

6. Maintenance Free

Low liquid design recombines generated gases into water; no need to add water or acid.

7. Various Installation Types

Special AGM separator absorbs electrolyte with no free acid inside, allowing both vertical and horizontal mounting positions.
