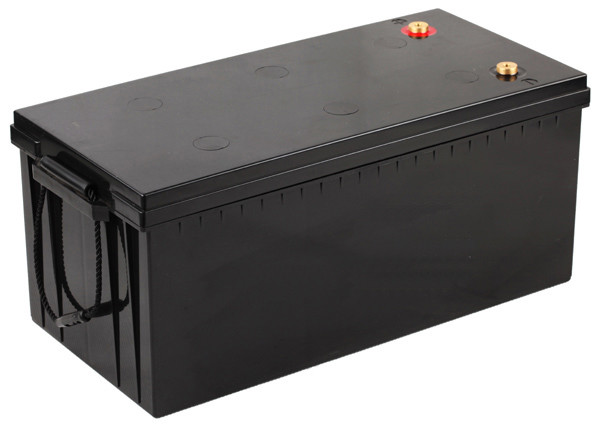

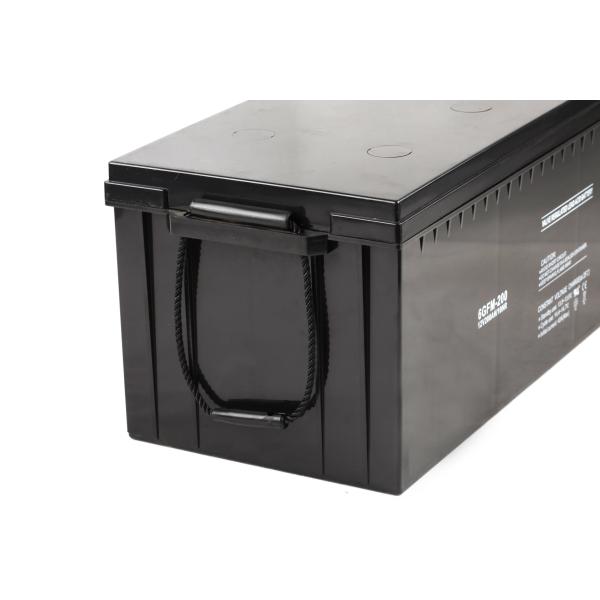

12V 200AH AGM Gel Battery with 15 Years Design Life and High Current Performance for Deep Cycle Applications
12V 200AH AGM Gel Battery with 15 Years Design Life and High Current Performance for Deep Cycle Applications
12V 200AH AGM Gel Battery with 15 Years Design Life and High Current Performance for Deep Cycle Applications
12V 200AH AGM Gel Battery with 15 Years Design Life and High Current Performance for Deep Cycle Applications
Specifications
Approx Weight :
62.5 Kg
Nominal Voltage :
12V
Battery Designed Life :
15 Years
Terminal Type :
Female Copper Insert M8 (torque:6~7N.m)
Dimension :
L330mm x W171mm x H220mm
Model Number :
6GFM-200G
Certification :
CE UL ISO9001 ISO14001 OHASA18001
Place of Origin :
WUHAN
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T,D/P,L/C
Supply Ability :
10000PCS/Week
Delivery Time :
30Days
Packaging Details :
Carton and Wooden Pallet
Rated Capacity :
200AH
Applicaton :
Solar and Wind Power System, Electric Power Vehicles, Wheel Chairs, Power Tools.
Battery Case :
ABS
Type :
AGM Gel Battery
Description
Black Color 12V200AH AGM Gel Battery High Current Performance Deep Cycle Battery
Product Overview

12V200AH Nano Gel Battery AGM Gel Battery Deep Cycle Battery for Renewable Energy System

By combining newly developed nano gel electrolyte with advanced AGM structures, we created the innovative AGM gel battery (G type). This type offers 15 years design life with exceptional deep cycling capability.

This series is highly suited for telecom outdoor applications, renewable energy systems, and other harsh environment applications.

Product Structure & Working Principle
  • Positive plate: Thick high Sn low Ca grid minimizes corrosion and prolongs life
  • Negative plate: Balanced Pb-Ca grid for improved recombination efficiency
  • Separator: Advanced AGM separator for ultra low float current
  • Electrolyte: Dilute high purity sulphuric acid with nano gel
  • Battery container and cover: ABS material
  • Pillar seal: 100% factory tested, proven two layers epoxy resin seal
  • Relief valve: Complete with integrated flame arrestor
Technical Specifications
Type Gel Deep Cycle Battery
Nominal Voltage 12V
Rated Capacity 200Ah (10 Hr, 10.8V, 25℃)
Approx Dimensions (mm) L520mm × W240mm × H219mm × H224mm
Cycle Life ≥ 3 years
Approx Weight 62.5kg
Applicable Temperature -40℃ ～ 60℃
Optimum Temperature 20℃ ～ 25℃
Self-discharge Self-discharge rate ＜ 0.1% per day (20℃)
Materials for Battery Containers and Covers ABS
Screw Hole Size (mm) M8
Constant Current Discharge Ratings - Amperes at 25°C
F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 6h 7h 8h 9h 10h 20h
1.6V601.9396.8311.0205.0135.168.850.540.634.229.826.523.921.920.211.9
1.65V557.4373.3293.5200.3132.167.249.940.134.129.726.423.921.820.211.9
1.7V512.8349.8276.0195.7129.065.649.339.633.929.526.423.821.820.111.9
1.75V468.3326.4258.5191.0125.964.148.739.133.729.426.323.821.720.111.8
1.8V423.8302.9241.1186.4122.962.548.138.633.629.226.223.721.720.011.8
Constant Power Discharge Ratings - Watts at 25°C
F.V/Time 5min 10min 15min 30min 1h 2h 3h 4h 5h 6h 7h 8h 9h 10h 20h
1.6V1029.2682.5562.8387.5256.8130.697.077.967.158.752.247.443.340.023.7
1.65V953.1642.1531.2378.6250.9127.795.877.066.858.452.147.343.239.923.7
1.70V877.0601.7499.6369.8245.1124.794.776.066.458.151.947.243.139.823.6
1.75V800.9561.3467.9361.0239.3121.793.575.166.157.851.847.043.039.723.5
1.8V724.8521.0436.3352.2233.4118.892.374.265.857.651.746.942.939.623.5
Application Fields

Solar power systems, wind energy storage systems, UPS systems, switchgear, CATV and telecommunication systems applications, electric wheelchairs, medical equipment, washing machines, and more.

Key Advantages
  • Long Life: VRLA gel type battery uses high-tin alloy positive grids and thick plates to reduce active material utilization. 40% DOD cycle life can reach over 3000 times as per IEC 60896-22-2004.
  • Super Overdischarge Tolerance: After 5 over-discharges causing short circuits, battery capacity restoration reaches over 95%.
  • High Cycling Ability: Special gel electrolyte additives and curing process delay active material softening, improving deep cycle endurance and anti-passivation capability.
  • Excellent High-current Performance: Tight assembly design reduces plate distance, improving high current discharge performance.
  • Safety: Corrosion-resistant rubber O-ring and special adhesive seal terminals, ensuring no acid leakage and reliable operation.
  • Maintenance Free: Low liquid design recombines generated gases into water; no need to add water or acid.
  • Various Installation Types: Special AGM separator absorbs electrolyte, allowing both vertical and horizontal mounting positions.
