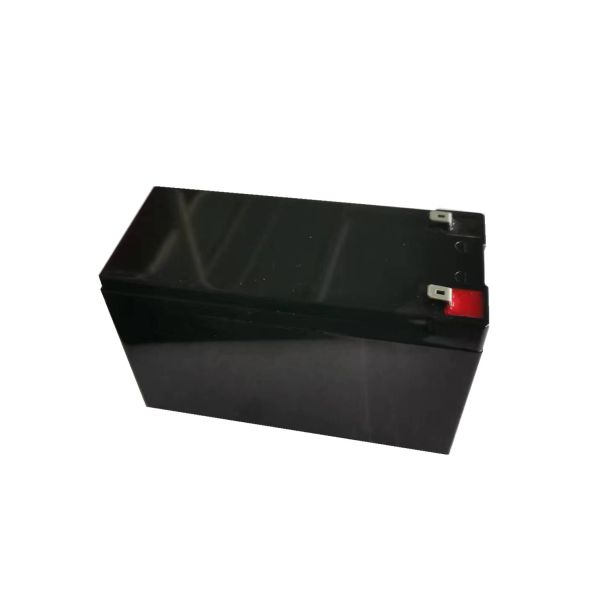

LiFePO4 Lithium Battery 12V 9Ah Longer Life Lightweight 0.95kg Replacement for Lead Acid
LiFePO4 Lithium Battery 12V 9Ah Longer Life Lightweight 0.95kg Replacement for Lead Acid
Specifications
Operating Temperature :
Charging 0~45℃
Capacity :
9Ah
Storage Temperature :
-10℃-40℃ Recommend（25±5℃）
Charge Voltage :
14.6V±0.05V
Brand Name :
FBATTERY
Model Number :
FB-1209
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Size :
L*W*H=151*65*93mm
Certification :
CE,UL,ROHS
Payment Terms :
L/C,D/A,D/P,T/T in advance
Supply Ability :
10000PCS/30Days
Delivery Time :
20Days
Packaging Details :
Carton
Weight approx :
0.95kg
Impedance :
80mΩ
Rating Voltage :
12V
Description
LiFePO4 Lithium Battery Replacement Lead Acid 12V 9Ah Longer Life Powerful Reliable
High-performance LiFePO4 lithium battery designed as a direct replacement for lead acid batteries. Features extended lifespan, reliable power delivery, and superior performance characteristics.
Technical Specifications
No Item Parameter Remark
1 Rating Voltage 12V
2 Capacity 9Ah 1C discharge after full charge
Minimum Capacity 8.6Ah
3 Charge Voltage 14.6V±0.05V
4 Impedance 80mΩ(Max)
5 Charging Mode C.C/C.V. Constant Current / Constant Voltage
6 Charging Method Standard Charging Charging Current 2A
Fast Charging Charging Current 5A
7 Charging Time Standard Charging 5.5 Hours
Fast Charging 2.5 Hours
9 Overcharge Voltage 3.65±0.05V
10 Over Discharge Cut Off Voltage 2.2V±0.1V
11 Over Current 25-40A
12 Short Circuit
13 Operating Consumption Current 50uA(MAX)
14 Operating Temperature Charging 0~45℃
Discharging -10~60℃
15 Storage Temperature -10℃-40℃ Recommend(25±5℃) Storage capacity should be 40%~50% full charge capacity
16 NTC Resistor /
17 ESD Test ±4KV
18 Discharge Current ≤10A
19 The factory voltage 12.8-13.6V The open circuit state
20 Weight Approx 0.95kg
Storage Guidelines
The battery storage shall be in the clean and dry ventilation room at the temperature of -5～35℃ and shall keep out of fire or heat and avoid touching corrosion elements. The batteries shall be charged every 3 months during storage. Both the stored cells in the process of the battery and the batteries in delivery shall be "first come, first use". The battery storage period is 24 months when into the warehouse. Batteries expired must have a thorough check. Only the applicable batteries can be dispatched to the purchaser; the inapplicable ones shall be rechecked, if it remains, the purchaser shall have the right to dispose bad ones.
