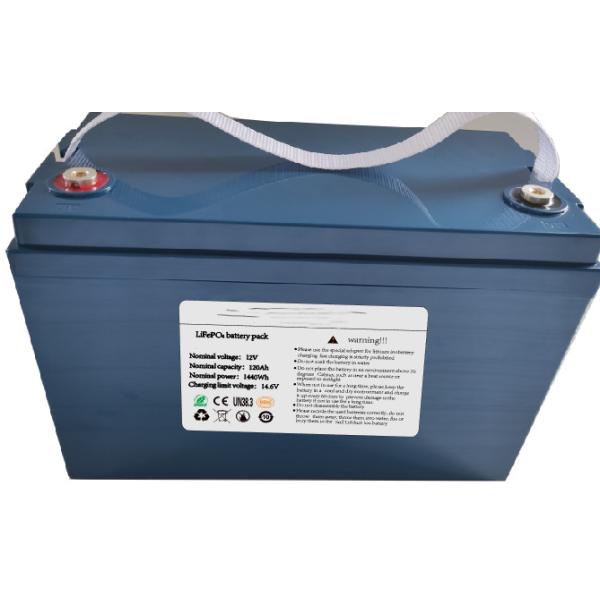

Deep Discharge Recovery 12V 120Ah LiFePO4 Lithium Iron Phosphate Battery Replacement for Lead Acid
Deep Discharge Recovery 12V 120Ah LiFePO4 Lithium Iron Phosphate Battery Replacement for Lead Acid
Specifications
Rating Voltage :
12.8V
Brand Name :
FBATTERY
Model Number :
FB-12120
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Impedance :
15mΩ（Max）
Weight approx :
12.6kg
Operating Temperature :
Charging 0~45℃
Capacity :
120Ah
Certification :
CE,UL,ROHS
Payment Terms :
L/C,D/A,D/P,T/T in advance
Supply Ability :
10000PCS/30Days
Delivery Time :
20Days
Packaging Details :
Carton
Size :
L*W*H=330*174*214mm
Storage Temperature :
-10℃-40℃ Recommend（25±5℃）
Charge Voltage :
14.6V±0.05V
Cell Type :
LiFePO₄
Description
Deep Discharge Recovery LiFePO4 Lithium Battery Replacement Lead Acid 12V 120Ah
Deep Discharge Recovery High Power Density Replacement For Lead Acid Battery 12V 120Ah
Specifications
No Item Parameter Remark
1 Rating Voltage 12.8V
2 Capacity 120Ah 0.5C discharge after full charge
Minimum Capacity 115Ah
3 Charge Voltage 14.6V±0.05V
4 Impedance 15mΩ(Max)
5 Charging Mode C.C/C.V. Constant Current / Constant Voltage
6 Charging Method Standard Charging Charging Current 18A
Fast Charging Charging Current 60A
7 Charging Time Standard Charging 8 Hours
Fast Charging 2.6 Hours
9 Overcharge Voltage 3.65±0.05V
10 Over Discharge Cut Off Voltage 2.2V±0.1V
11 Over Current 250-400A
12 Short Circuit
13 Operating Consumption Current 50uA(MAX)
14 Operating Temperature Charging: 0~45℃
Discharging: -10~60℃
15 Storage Temperature -10℃-40℃ Recommend(25±5℃) Storage capacity should be 40%~50% full charge capacity
16 NTC Resistor /
17 ESD Test ±4KV
18 Discharge Current ≤120A
19 Factory Voltage 12.8-14V The open circuit state
20 Weight Approx 12.6 kg
Storage Guidelines
The battery storage shall be in the clean and dry ventilation room at the temperature of -5～35℃ and shall keep out of fire or heat and avoid touching corrosion elements. The batteries shall be charged every 3 months during storage. Both the stored cells in the process of the battery and the batteries in delivery shall be "first come, first use". The battery storage period is 24 months when into the warehouse. Batteries expired must have a thorough check. Only the applicable batteries can be dispatched to the purchaser; the inapplicable ones shall be rechecked, if it remains, the purchaser shall have the right to dispose bad ones.
