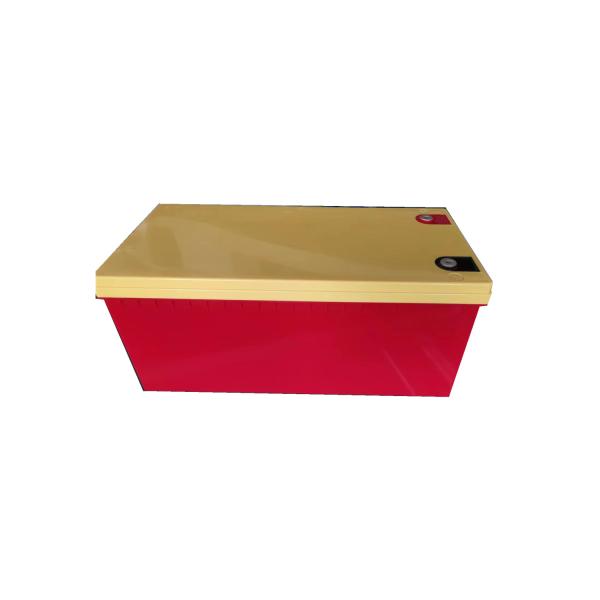

High Capacity 12V 300Ah LiFePO4 Lithium Replacement Battery for Lead Acid
High Capacity 12V 300Ah LiFePO4 Lithium Replacement Battery for Lead Acid
Specifications
Brand Name :
FBATTERY
Model Number :
FB-12300
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Certification :
CE,UL,ROHS
Payment Terms :
L/C,D/A,D/P,T/T in advance
Supply Ability :
10000PCS/30Days
Delivery Time :
20Days
Packaging Details :
Carton
Operating Temperature :
Charging 0~45℃
Capacity :
300Ah
Size :
L*W*H=523*238*218mm
Storage Temperature :
-10℃-40℃ Recommend（25±5℃）
Charge Voltage :
14.6V±0.05V
Rating Voltage :
12.8V
Weight approx :
27kg
Impedance :
15mΩ（Max）
Description
High Capacity Powerful LiFePO4 Lithium Replacement Lead Acid Battery 12V 300Ah
This high-capacity LiFePO4 battery provides a powerful 12V 300Ah solution as a direct replacement for lead acid batteries, offering superior performance and reliability for industrial applications.
Technical Specifications
No Item Parameter Remark
1 Rating Voltage 12.8V
2 Capacity 300Ah 0.5C discharge after full charge
Minimum Capacity 290Ah
3 Charge Voltage 14.6V±0.05V
4 Impedance 15mΩ(Max)
5 Charging Mode C.C/C.V. Constant Current / Constant Voltage
6 Charging Method Standard Charging Charging Current 40A
Fast Charging Charging Current 100A
7 Charging Time Standard Charging 8 Hours
Fast Charging 4.2 Hours
9 Overcharge Voltage 3.65±0.05V
10 Over Discharge Cut Off Voltage 2.2V±0.1V
11 Over Current 400-600A
12 Short Circuit
13 Operating Consumption Current 50uA(MAX)
14 Operating Temperature Charging: 0~45℃
Discharging: -10~60℃
15 Storage Temperature -10℃-40℃ Recommend(25±5℃) Storage capacity should be 40%~50% full charge capacity
16 NTC Resistor /
17 ESD Test ±4KV
18 Discharge Current ≤250A
19 Factory Voltage 12.8-13.6V The open circuit state
20 Weight Approx 27KG
