200kg To 2000kg High Precision Load Cell Weight Sensor For Platform Scales Hopper Scales
200kg To 2000kg High Precision Load Cell Weight Sensor For Platform Scales Hopper Scales
Specifications
Temperature Range Or Use :
-30～+65℃
Supply Ability :
1,000 units per month
Delivery Time :
20 days
Model Number :
LMD0745
Material :
Stainless Steel
Product :
Load Cell
Brand Name :
Linmindu
Place of Origin :
China
Cable Length :
2.5m
Packaging Details :
carton packaging
Payment Terms :
Payment before delivery
Protection Level :
IP68
Sealing Method :
Laser Welding Sealing
Description

High strength and stable LMD0745 load cell with 200 to 2000kg capacity, widely applied in platform scales hopper scales and various medium capacity weighing equipment.

LMD0745 is a high-performance and high-precision cantilever beam weighing sensor designed for industrial platform scales, hopper scales, tank weighing, and various automated weighing systems. The product adopts high-quality alloy structural steel and fully sealed welding technology, balancing measurement accuracy, long-term stability, and adaptability to harsh environments, meeting the high-precision measurement needs of industries such as chemical, food, pharmaceutical, and building materials.

Product Features

  • Compact structure, low installation height
  • High comprehensive accuracy, up to C6
  • Stainless steel material, laser welded seal, protection level IP68
  • Suitable for platform scales, material tank weighing, etc

Specifications

Project

Parameters

Rated Range

200 / 300 / 500 / 1000 / 1500 / 2000kg

Accuracy Class

C3

C6

Maximum Calibration Division number

3000

6000

Minimum Calibration Scale

Emax/5000g

Emax/10000g

Zero Temperature

±0.0028%of Emax /℃

±0.0014%of Emax /℃

Sensitivity Output

2.0mV/V

Sensitivity Output Error

±0.1% of Emax

Zero Point Output

±1.0% of Emax

Sensitivity Temperature Coefficient

+20℃~+40℃

±0.00175% of AL/℃

±0.00087% of AL/℃

Sensitivity Temperature Coefficient

-10℃~+20℃

±0.00117% of AL/℃

±0.00058% of AL/℃

Lag

±0.0167% of Emax

±0.0083% of Emax

Nonlinear

±0.0167% of Emax

±0.0083% of Emax

Creep

±0.0167% of AL

±0.0083% of AL

Input Impedance

350±3Ω

Output Impedance

350±3Ω

Insulation Resistance

＞5000MΩ

Suggested Excitation Voltage

10V AC/DC

Maximum Excitation Voltage

15V AC/DC

Temperature Compensation Range

-10～+40℃

Temperature Range For Use

-30～+65℃

Storage Temperature Range

-40～+80℃

Safety Overload

150% %of Emax

Extreme Overload

300% %of Emax

Protection Level

IP68

Sealing Method

Laser welding sealing

Material

Stainless steel

Explosion-proof Certificate

Ex ia IIC T4 Ga / Ex ia IIIC T135℃ Da

Cable Length

2.5m

Recommended Installation Torque

98N.m

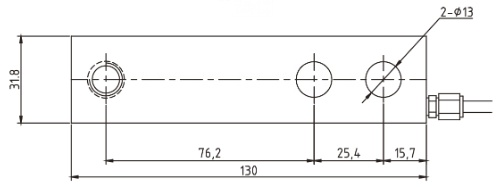

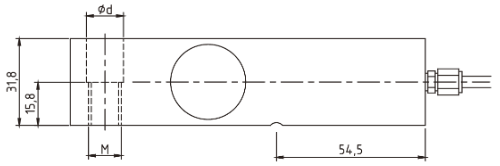

Overall dimensions

200kg To 2000kg High Precision Load Cell Weight Sensor For Platform Scales Hopper Scales

200kg To 2000kg High Precision Load Cell Weight Sensor For Platform Scales Hopper Scales

Cable Color

Color Code (four core wire)

Red

+Excitation(+EXC)

Green

+Signal(+SIG)

Black

-Excitation(-EXC)

White

-Signal(-SIG)

Capacity(kg)

A

B

5-200

8.2

8.2

300-500

10.5

11.1
