10kg To 500kg Wireless Load Cell High Precision Load Cell For Small Machinery
10kg To 500kg Wireless Load Cell High Precision Load Cell For Small Machinery
Specifications
Upper Limit Of Excitation Voltage :
20V (DCIAC)
Packaging Details :
carton packaging
Place of Origin :
China
Input Impedance :
385±10Ω
Product :
Load Cell
Protection Level :
IP68
Brand Name :
Linmindu
Payment Terms :
Payment before delivery
Model Number :
LMD701
Material :
Stainless Steel
Delivery Time :
20 days
Cable Length :
3m
Supply Ability :
1,000 units per month
Description

Compact structure and high precision LMD701 Load Cell with 10kg to 500kg range, widely used in packing scales, small machinery and industrial precision weighing equipment.

LMD701 is a high-precision corrugated tube weighing sensor specially designed for industrial weighing scenarios with a range of 10~500kg. The product adopts the principle of resistance strain measurement, integrates high-quality stainless steel material and laser welding sealing technology, and has high-precision measurement, super strong protection and explosion-proof adaptability. At the same time, it optimizes cost-effectiveness and installation convenience, widely adapts to the dynamic and static weighing needs of multiple industries such as chemical, pharmaceutical, and food, and provides stable and reliable weighing solutions for small and medium-sized reaction vessels, hopper scales, packaging machines and other equipment.

Product Features

  • The load cell features a stainless steel laser-welded sealed design with an IP68 protection rating, enabling use in various harsh environments
  • Spherical connectors, tapered connectors, and rocker pin connectors are optional.
  • Support bolts prevent the equipment from tipping over
  • Easy and quick installation, convenient maintenance
  • Stainless Steel and Alloy Steel Module Structural Components
  • Suitable for ingredient weighing of small and medium-sized reaction vessels in chemical, pharmaceutical, food and other industries
  • Suitable for dynamic and static load weighing modules, with optional pull rod
  • Explosion-proof rating: Ex ia IIC T4 Ga; Explosion-proof iaD 20 T13

Specifications

Project

Parameters

Rated Capacity

10, 20, 30, 50, 75, 100, 200, 300

500

10, 20, 30, 50, 75, 100, 200, 300

500

Sensitivity

 2±0.002mVV

2±0.002mVV
Accuracy Class C3 C6
Repeatability Error ≤0.01%R.C. ≤0.01%R.C.
Lag ≤0.02%R.C. ≤0.01%R.C.
Nonlinear ≤0.018%R.C. ≤0.01%R.C.
Creep (30 minutes) ≤0.0167%R.C. ≤0.01%R.C.
Zero Output ≤1%R.C. ≤1%R.C.
Temperature Compensation Range -10~+40℃ -10~+40℃
Temperature Range For Use -40~+65℃ -40~+65℃
Sensitivity Temperature Coefficient ≤0.0009%R.C./℃ ≤0.0005%R.C./℃
Zero Temperature ≤0.002%R.C./℃ ≤0.0013%R.C./℃
Input Impedance 385±10Ω 385±10Ω
Output Impedance 350±1Ω 350±1Ω
Insulation Resistance ≥5000 (100V DC)MΩ ≥5000 (100V DC)MΩ
Suggested Excitation Voltage 5~15V (DCIAC) 5~15V (DCIAC)
Upper Limit Of Excitation Voltage 20V (DCIAC) 20V (DCIAC)
Safe Overload 150%R.C. 150%R.C.
Ultimate Overload 300%R.C. 300%R.C.
Protection Level IP68 IP68
Cable Length 3m 3m
Tightening Torque 26Nm 54Nm 26Nm 54Nm

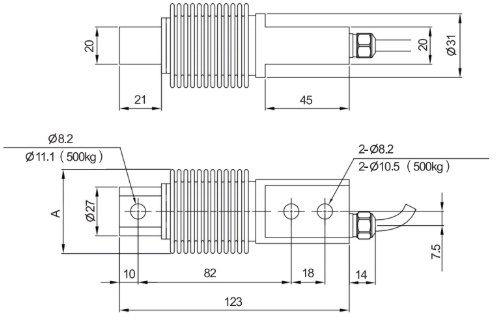

Overall dimensions

10kg To 500kg Wireless Load Cell High Precision Load Cell For Small Machinery

Capacity(kg)

A

10

Ф45

20-500

Ф42

Cable color Color code (six core wire)
Green +EXC
Black -EXC
Yellow +SEN
Blue -SEN
White +SIG

Red

-SIG
Yellow(Long) SHLD
