Compact High Stability Load Cell For Weighing Digital 30kg To 250kg Range
Compact High Stability Load Cell For Weighing Digital 30kg To 250kg Range
Specifications
Cable Length :
3m
Product :
Load Cell
Sensitivity :
2±0.2mVV
Brand Name :
Linmindu
Accuracy Class :
C3/C6
Supply Ability :
1,000 units per month
Temperature Range For Use :
-40~+65℃
Model Number :
LMD1260
Place of Origin :
China
Payment Terms :
Payment before delivery
Packaging Details :
carton packaging
Protection Level :
IP67
Delivery Time :
20 days
Description

Compact size and high stability LMD1260 Load Cell with 30kg to 250kg range, widely used in platform scales, packaging machinery and industrial precision weighing equipment.

LMD1260 is a high-precision single point weighing sensor specially designed for medium precision weighing scenarios with a range of 30kg~250kg. The product adopts the principle of resistance strain measurement, integrates high-quality aluminum alloy material and sealing and gluing process, and combines high-precision measurement, reliable protection and convenient installation characteristics. At the same time, it optimizes cost-effectiveness and scene adaptability, widely adapts to the static weighing needs of multiple industries such as commercial scales, light industry manufacturing, and automated packaging, and provides stable and reliable weighing solutions for electronic platform scales, batching machines, small hopper scales and other equipment.

Product Features

  • Single point weighing sensor
  • aluminum alloy
  • Protection level IP67
  • Explosion proof classification: Ex ia IIC T4 Ga; Ex iaD 20 T135
  • Suitable for platform scales, bagging scales, counting scales, pricing scales, and process weighing equipment.

Specifications

Project

Parameters

Rated Capacity

30,50,100,150,200,250

30,50,100,150,200,250

Sensitivity

2±0.2mVV

2±0.2mVV

Accuracy Class

C3

C6

Repeatability Error

≤0.01%R.C.

≤0.01%R.C.

Lag

≤0.02%R.C.

≤0.01%R.C.

Nonlinear

≤0.02%R.C.

≤0.01%R.C.

Creep (30 minutes)

≤0.02%R.C.

≤0.01%R.C.

Zero Output

≤10%R.C.

≤10%R.C.

Temperature Compensation Range

-10~+40℃

-10~+40℃

Temperature Range For Use

-40~+65℃

-40~+65℃

Sensitivity Temperature Coefficient

≤0.0009%R.C./℃

≤0.0005%R.C./℃

Zero Temperature

≤0.0023%R.C./℃

≤0.0013%R.C./℃

Input Impedance

410±10Ω

410±10Ω

Output Impedance

350±4Ω

350±4Ω

Insulation Resistance

≥5000 (100V DC)MΩ

≥5000 (100V DC)MΩ

Suggested Excitation Voltage

5~15V (DCIAC)

5~15V (DCIAC)

Upper Limit Of Excitation Voltage

20V (DCIAC)

20V (DCIAC)

Safe Overload

150%R.C.

150%R.C.

Ultimate Overload

300%R.C.

300%R.C.

Protection Level

IP67

IP67

Cable Length

2m

2m

Upper Limit Of Tabletop Size

400×400mm

400×400mm

Recommended Bolts

Bolt Size

M6

M6

Strength Grade

Grade 8.8 or above

Grade 8.8 or above

Tightening Torque

20Nm

20Nm

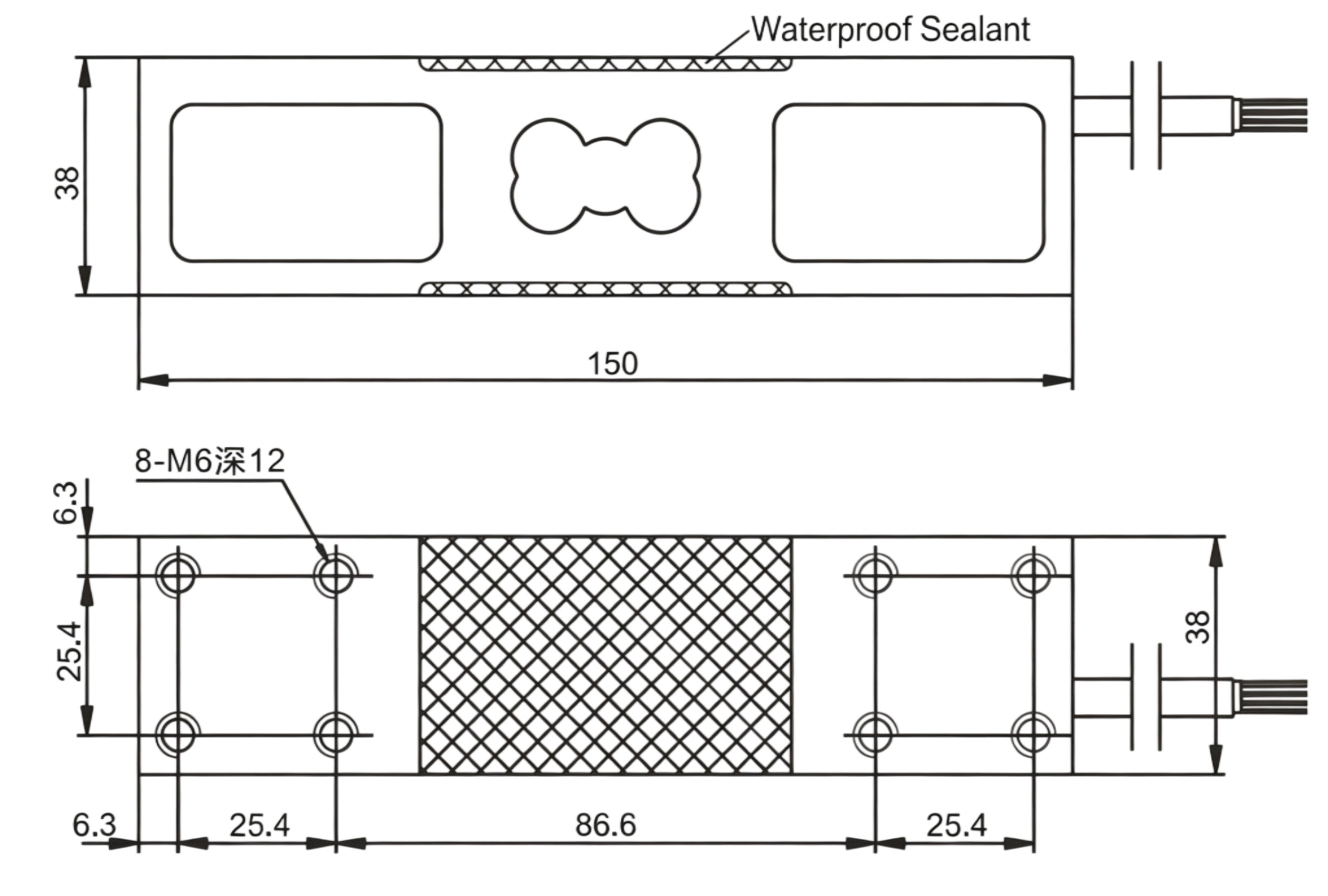

Overall dimensions

Compact High Stability Load Cell For Weighing Digital 30kg To 250kg Range

Cable color Color code (six core wire)
Green +EXC
Black -EXC
Blue +SEN
Brown -SEN
Red +SIG
White

-SIG
Yellow(Long) SHLD
