30kg To 500kg Industrial Load Cell Light Duty Weighing Load Cell Transmitter
30kg To 500kg Industrial Load Cell Light Duty Weighing Load Cell Transmitter
Specifications
Material :
Aluminum Alloy
Payment Terms :
Payment before delivery
Delivery Time :
20 days
Place of Origin :
China
Protection Level :
IP65
Product :
Load Cell
Model Number :
LMD1241
Brand Name :
Linmindu
Sealing Method :
Silicone Seal
Sensitivity Output :
2.0mV/V
Suggested Excitation Voltage :
10V AC/DC
Packaging Details :
carton packaging
Supply Ability :
1,000 units per month
Description

High accuracy and reliable LMD1241 load cell with 30 to 500kg capacity, ideal for small platform scales packing scales and various light duty weighing applications.

The LMD1241 is a standard, optimized, high-precision single-point load cell specifically designed for medium to high-accuracy weighing applications with a capacity range of 30~500kg. Constructed from premium aluminum alloy and featuring a single-point design, it delivers exceptional resistance to off-center loading, rapid response, and long-term stability. It is widely compatible with electronic bench scales, counting scales, packaging machines, and automated batching systems, meeting precise measurement requirements for commercial and light industrial applications.

Product Features

  • Compact beam sensor, sealed with high-quality silicone
  • High quality aluminum alloy material, fast response and high precision
  • High comprehensive accuracy, up to C6
  • Protection level IP65
  • Suitable for high-precision weighing of platform scales, filling and packaging machines, etc

Specifications

Project

Parameters

Rated Range

30/50/100/150/200/250/300/500kg

Accuracy Class

C3

C6

Maximum Calibration Division number

3000

6000

Minimum Calibration Scale

Emax/5000g

Emax/10000g

Zero Temperature

±0.0028%of Emax /℃

±0.0014%of Emax /℃

Sensitivity Output

2.0mV/V

Sensitivity Output Erro

±10% of Emax

Zero Point Output

±2.0% of Emax

Sensitivity Temperature Coefficient

+20℃~+40℃

±0.00175% of AL/℃

±0.00087% of AL/℃

Sensitivity Temperature Coefficient

-10℃~+20℃

±0.00117% of AL/℃

±0.00058% of AL/℃

Lag

±0.0167% of Emax

±0.0083% of Emax

Nonlinear

±0.0167% of Emax

±0.0083% of Emax

Creep

±0.0167% of AL

±0.0083% of AL

Input Impedance

404±10Ω

Output Impedance

350±3Ω

Insulation Resistance

＞5000MΩ

Suggested Excitation Voltage

10V AC/DC

Maximum Excitation Voltage

15V AC/DC

Temperature Compensation Range

-10～+40℃

Temperature Range For Use

-10～+50℃

Storage Temperature Range

-40～+70℃

Safety Overload

150%% of Emax

Extreme Overload

300%% of Emax

Protection Level

IP65

Sealing Method

Silicone Seal

Material

Aluminum Alloy

Explosion-proof Certificate

Ex ia IIC T4 Ga / Ex ia IIIC T135℃ Da

Cable Length

2.5m

Maximum Scale Size

500*500mm

Recommended Installation Torque

Thread Specification M6

10(≤100kg)；14(＞100kg)N.m

Thread Specification M8

25(≤300kg)；30(＞300kg)N.m

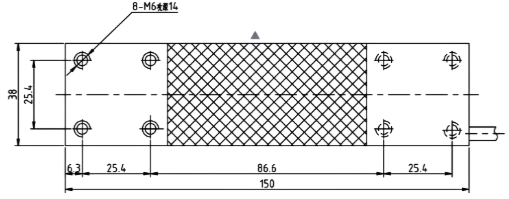

Overall dimensions

30kg To 500kg Industrial Load Cell Light Duty Weighing Load Cell Transmitter

30kg To 500kg Industrial Load Cell Light Duty Weighing Load Cell Transmitter

Cable Color

Color Code (four core wire)

Red

+Excitation(+EXC)

Green

+Signal(+SIG)

Black

-Excitation(-EXC)

White

-Signal(-SIG)
