High Accuracy Load Cell Sensor 0.25t To 5t For Industrial Platform Scales
High Accuracy Load Cell Sensor 0.25t To 5t For Industrial Platform Scales
Specifications
Cable Length :
3.5～6m
Product :
Load Cell
Temperature Compensation Range :
-10~+40℃
Brand Name :
Linmindu
Packaging Details :
carton packaging
Zero Output :
≤1%R.C.
Delivery Time :
20 days
Upper Limit Of Excitation Voltage :
20V (DCIAC)
Payment Terms :
Payment before delivery
Repeatability Error :
≤0.01%R.C.
Supply Ability :
1,000 units per month
Model Number :
LMD702
Place of Origin :
China
Description

High accuracy and strong durability LMD702 Load Cell with 0.25t to 5t range, ideal for industrial platform scales, hopper weighing and mechanical precision weighing devices.

LMD702 is a high-precision corrugated tube weighing sensor specially designed for industrial weighing scenarios with a range of 0.25t~5t. The product adopts the principle of resistance strain measurement, integrates high-quality stainless steel material and laser welding sealing technology, and combines high-precision measurement, super strong protection and stable adaptation characteristics. At the same time, it optimizes cost-effectiveness and installation convenience, widely adapts to the dynamic and static weighing needs of multiple industries such as chemical, pharmaceutical, building materials, and warehousing, and provides stable and reliable weighing solutions for medium-sized reaction vessels, hopper scales, platform scales, belt scales and other equipment.

Product Features

  • Alloy steel material weighing sensor
  • Flip protection, overload protection
  • 360 ° circular horizontal limit protection
  • Configuring a horizontal pull rod can stabilize equipment shaking
  • Suitable for dynamic and static weighing applications
  • Stainless steel and alloy steel module structural components
  • Suitable for tank ingredient weighing and various process weighing
  • Explosion proof grade: Ex ia IIC T4 Ga; Explosion proof iaD 20 T135

Specifications

Project

Parameters

Rated Capacity

250

500

1000

2000

3000,5000

250

500

1000

2000

3000

5000

Sensitivity

2±0.2mVV

2±0.2mVV

Accuracy Class

C3

C6

Repeatability Error

≤0.01%R.C.

≤0.01%R.C.

Lag

≤0.02%R.C.

≤0.01%R.C.

Nonlinear

≤0.018%R.C.

≤0.01%R.C.

Creep (30 minutes)

≤0.0167%R.C.

≤0.01%R.C.

Zero Output

≤1%R.C.

≤1%R.C.

Temperature Compensation Range

-10~+40℃

-10~+40℃

Temperature Range For Use

-40~+65℃

-40~+65℃

Sensitivity Temperature Coefficient

≤0.0009%R.C./℃

≤0.0005%R.C./℃

Zero Temperature

≤0.002%R.C./℃

≤0.0013%R.C./℃

Input Impedance

385±10Ω

385±10Ω

Output Impedance

350±1Ω

350±1Ω

Insulation Resistance

≥5000 (100V DC)MΩ

≥5000 (100V DC)MΩ

Suggested Excitation Voltage

5~15V (DCIAC)

5~15V (DCIAC)

Upper Limit Of Excitation Voltage

20V (DCIAC)

20V (DCIAC)

Safe Overload

150%R.C.

150%R.C.

Ultimate Overload

300%R.C.

300%R.C.

Protection Level

IP68

IP68

Cable Length

3.5m

6m

3.5m

6m

Recommended Bolts

Bolt Size

M12

M14

M18

M12

M14

M18

Strength Grade

A2-70/Level 8.8 or above

A2-70/Level 8.8 or above

Tightening Torque

120Nm

196Nm

300Nm

120Nm

196Nm

300Nm

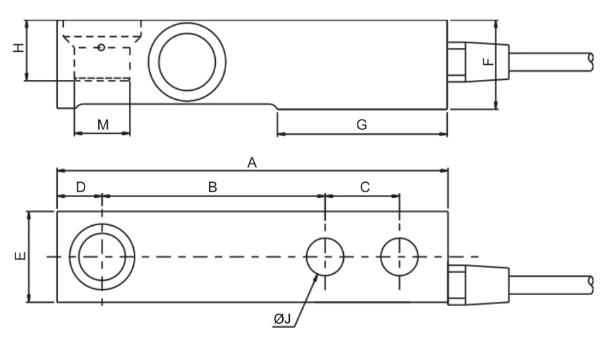

Overall dimensions

High Accuracy Load Cell Sensor 0.25t To 5t For Industrial Platform Scales

Cap (t)

A

B

C

D

E

F

G

H

J

M

0.25~1

133.4

76.2

25.4

15.4

30.7

30.2

57.7

17

13

φ15.9

2

136.6

76.2

25.4

18.4

36.8

36.6

57.9

23

13

φ15.9

3

139.7

79.2

25.4

18.4

39

36.6

57.9

23

15

φ159

5

171.5

95.2

38.1

21.5

42.9

42.9

73.8

29.3

19

φ22.2

Cable color Color code (Four core wire)
Green +EXC
Black -EXC
White +SIG
Red

-SIG
Yellow(Long) SHLD
