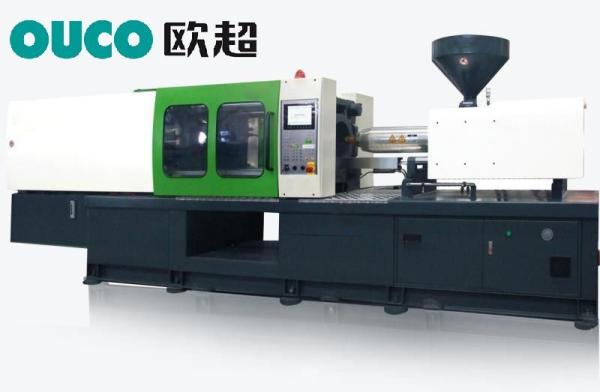

800T Hydraulic Injection Moulding Machine Spin Bar Plastic Cup Making Machine
800T Hydraulic Injection Moulding Machine Spin Bar Plastic Cup Making Machine
800T Hydraulic Injection Moulding Machine Spin Bar Plastic Cup Making Machine
800T Hydraulic Injection Moulding Machine Spin Bar Plastic Cup Making Machine
800T Hydraulic Injection Moulding Machine Spin Bar Plastic Cup Making Machine
800T Hydraulic Injection Moulding Machine Spin Bar Plastic Cup Making Machine
800T Hydraulic Injection Moulding Machine Spin Bar Plastic Cup Making Machine
800T Hydraulic Injection Moulding Machine Spin Bar Plastic Cup Making Machine
800T Hydraulic Injection Moulding Machine Spin Bar Plastic Cup Making Machine
800T Hydraulic Injection Moulding Machine Spin Bar Plastic Cup Making Machine
Specifications
Brand Name :
OUCO
Model Number :
OUCO-800T
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
2500 Set/Sets per Year
Delivery Time :
35 work days
Price :
Negotiable
Packaging Details :
shipping container
Product Name :
New Spin Bar Plastic Cup Making Machine Price Hot Sales
Ejector Stroke( :
270 mm
Ejector Force :
166 kN
Theoretical Shot Volume :
4717 cm³
Screw diameter :
105 mm
Open Stroke :
1050 mm
Warranty of core components: :
1 Year
Stable Performance :
Short Cycle Time
Description

800T New Spin Bar Plastic Cup Making Machine Price Hot Sales

OUCO Provide Leading technology and performance plastic cup making machine, China unique producer, central locking toggle.
Injection molding compounds (CIML) fill the blanks in Asia. Electro-hydraulic hybrid 2 platen machines are special for plastic cups industry with the leading level.

Product Parameters

Plastic Processed: PP Weight (KG): 28000
Condition: New Open Stroke: 1050 mm
Style: Horizontal Power : 40.9 kW
Distance between Tie Bars(Width): 955 mm Warranty: 1 Year
Distance between Tie Bars(Height): 1055 mm Key Selling Points: Energy saving
After-sales Service Provided: Engineers available to service machinery overseas, Field maintenance and repair service Applicable Industries: Food & Beverage Factory, Home Use
Ejector Stroke: 270 mm Showroom Location: United States, Germany, India, South Africa
Ejector Force: 166 kN Machinery Test Report: Provided
Theoretical Shot Volum: 4717 cm Video outgoing-inspection: Not Available
Injection Rate : 686 g/s Warranty of core components: 1 Year
Machine Type: Hydraulic Core Components: Motor, Pump
Injection Weight : 4339 g Color: White+Red
Screw diameter : 105 mm Clamping Force (kN): 8000
Screw L/D Ratio: 23 Automatic: Yes

800T Hydraulic Injection Moulding Machine Spin Bar Plastic Cup Making Machine

800T Hydraulic Injection Moulding Machine Spin Bar Plastic Cup Making Machine800T Hydraulic Injection Moulding Machine Spin Bar Plastic Cup Making Machine

Main Features

Big: Bigger one size than other brand machines.
Precision: Products higher precision.
Save: Help customer save 2- 5% material.

ouco centre clamping structure

100% clamping force use.

Less possibility of flash, save flash trim work.

Save 2% - 5% material.

Offer good protection to mould, platens and tie bars.

Opening stroke 10 - 20% longer.

Traditional structure

With heavy clamping force waste, only 80 - 85% efficiency.

Moving platen with obvious deformation, cause flashes, wsaste of material and labor of trim the flashes.

Certifications
Detailed Images

1, Fully optimized hydraulic system, efficiency 10% higher than last series( Standard EK) .
2, Hydraulic parts from famous international manufacturers, ensure machine with reliable performance.
3, Conform to GB, CE, UL, KCS or other safety standard.

1, Optimized electrical cabinet design, conform to GB, CE, UL, KCS or other safety standard.

2, Electrical parts from famous ithernational manufacturers, ensure machine with reliable performance.

3, Advanced PLC( KEBA, BECKHOFF, etc. ) , available as opption.

1, World leading screw plasticizing set design with technology from Europe.

2, Srew for special purposes ( PC, PMMA, POM, etc. ) available as option.

3, Customized plasticizing set available for special application.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
