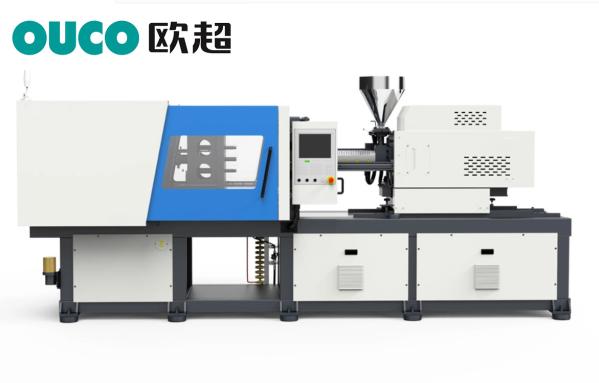

530 T Hydraulic Injection Moulding Machine SGS Small Injection Molding Machine
530 T Hydraulic Injection Moulding Machine SGS Small Injection Molding Machine
530 T Hydraulic Injection Moulding Machine SGS Small Injection Molding Machine
530 T Hydraulic Injection Moulding Machine SGS Small Injection Molding Machine
530 T Hydraulic Injection Moulding Machine SGS Small Injection Molding Machine
530 T Hydraulic Injection Moulding Machine SGS Small Injection Molding Machine
Specifications
Brand Name :
OUCO
Model Number :
OUCO-O530T
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
530 T Advanced Small Scale Injection Molding Machine With Robot Arm
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

530 T Advanced Small Scale Injection Molding Machine With Robot Arm

Optimized functions

1.Expanded motor and pump system, optimized hydraulic system for high performance and faster cycles. Like crate (less than 2kg) cycle time 20s;

Spray paint bucket (780-800g) cycle time 20s.

2. Specially designed screw and barrel structure for faster plasticization and shorter loading cycle.

Optional bimetallic screw and barrel to be compatible with the recycled material of the box.

3. Optional automation equipment is available to improve production efficiency.

The above translation results are from Youdao Neural Network Translation (YNMT) - General Domain

Sentence-by-sentence comparison

Product Parameters

TECHNICAL PARAMETER TABLE
INJECTION UNIT SCREW DIAMETER mm 100
SCREW L/D RATIO L/D 19
INJECTION CAPACITY IN THEORY cm3 3298
INJECTION WEIGHT(PS) g 3000
INJECTION PRESSURE MPa 134
INJECTION RATE g/s 663
PLASTICIZING CAPACITY g/s 100
SCREW SPEED rpm 137
CLAMPING UNIT CLAMPING FORCE KN 5300
MOVING MOULD-PLATE STROKE mm 830
MAX. MOULD HEIGHT mm 990
MIN. MOULD HEIGHT mm 330
SPACE BWTWEEN TIE-BARS (W×H) mm 880x810
HYDRAULIC EJECTOR FORCE mm 181
HYDRAULIC EJECTOR STROKE KN 230
EJECTOR NUMBER n 17
OTHERS PUMP PRESSURE MPa 16
MOTOR /DRIVING POWER KW 55
HEATING CAPACITY KW 30
MACHINE DIMENSION (L×W×H) m 8.5*2.14*2.43
MACHINE WEIGHT t 20.5
OIL TANK CAPACITY L 1150
