Specifications
Brand Name :
OUCO
Model Number :
OUCO-CWI-220GB
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
OUCO Plastic Box Making Machine With High Response Motor and Full Hydraulic Drive
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

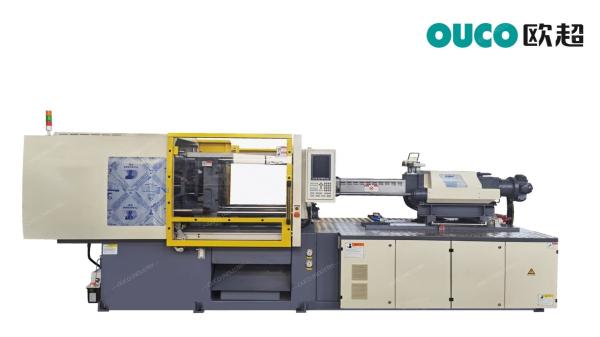

OUCO Plastic Box Making Machine With High Response Motor and Full Hydraulic Drive

OUCO plastic machine is fully hydraulic driven and adopts the world class Speed control program, which improves the repeat positioning accuracy of the injection molding machine to 0.1mm and controls the injection accuracy to 0.1mm.
There are no major restrictions on the materials that can be used for 220GB, such as PE, PP, PS, ABS, PVC, PA, PET, PC, PPO

Product Advantages
We select the most suitable parts
- Korea LS Three-phase circuit breakersingle-pole circuit breakerThree-pole circuit breaker adopt
- Taiwan FOTEK Solid relaysfast fuse breaker therom rolay -French Schineider gefran Contactorihermo-relaystroke switch -Italy Gefran Linear transducer
- Korea Autonics Proximity switchphotosensor
- Taiwan MW Switching power

Parameters

MODEL CWI-220GB

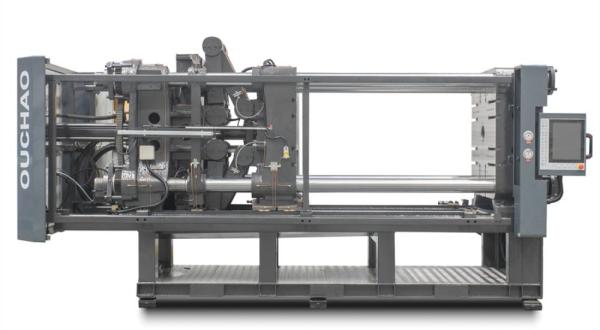

CLAMPING UNIT clamping force (kN) 2200
Tie bar distance W×L (mm) 570*570
Max.Daylight(mm) 550
Max. mold thickness (mm) 600
Min. mold thickness(mm) 220
Platen Dimensions W×L (mm) 830X830
Ejector Stroke(mm) 170
Ejector Force(Kn) 80
Ejector Quantily 9

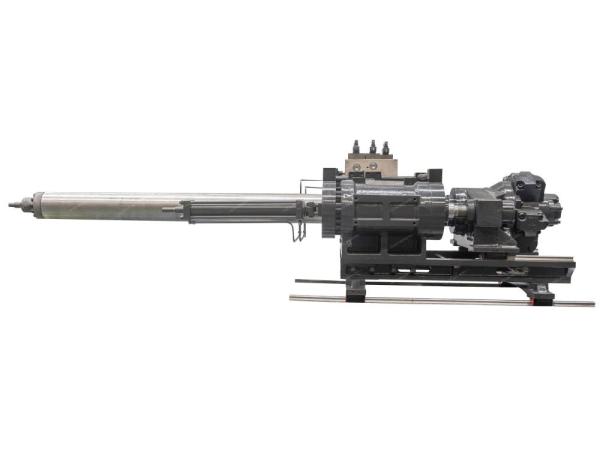

Injection unit 860D 1100D
Injection Unit Screw Diameter(mm) 45 50 50 55
Screw L/D ratio 23.3 21 23.1 21
Theoretical injection volume (cm3) 358 442 487 589
Shot Weight (PS) g 329 406 448 542
Injection Pressure(MPa) 256 207 225 186
Injection Speed (mm/s) 126 101
Injection Rate (cm3/s) 200 247 198 240
Screw Speed (rpm) 245 185
Other Motor Power (Kw) 34
pump capacity(L/min) 176
Heater Power (Kw) 13..3 15.9
Machine Weight (kg) 7.5
Machine size L×W×H (mm) 5830x1640x1870
