Specifications
Brand Name :
OUCO
Model Number :
OUCO-230EKII
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
35 work days
Price :
Negotiable
Supply Ability :
500 sets per year
Packaging Details :
shipping container
Product Name :
PVC Hydraulic Injection Molding Machine Companies In China, Crate and Storage Box
Type :
Preform Injection
Clamping Force :
2300KN
Injection Weight :
480-588g
Opening Stroke :
530mm
Injection Rate :
163-202cm3
Power :
132kW
Motor :
Servo Energy Saving
Description

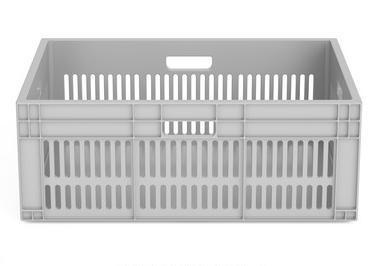

PVC Hydraulic Injection Molding Machine Companies In China, Crate and Storage Box

PVC special efficient plasticizing screws( designed by Germany). Forced cooled charge pipe( fan/ air compression).

The central clamping structure honor invention patent of China. Enlarge plasticizing motor.

Widen safety gate. Multiple options of core- pulling modes. Independent R& D for super- energy servo system with high efficiency.


Main Features
1, 5 points vertical double toggle mechanism.

2, Dual- cylinder balance injection system.

3, Multi- stage pressure & speed injection.

4, Back- pressure adjustment device.

5, Low- pressure mold protection( Optional).

6, Multiple hydraulic ejector knock- outs.

7, Mechanical and electrical safety devices.

8, Concentrate and electical safety devices.

9, Hydraulic proportional control.

10, Mechanical leveling pad.

11, Optimized composition hydraulic of the famous brands control.

12, Hydraulic safety device.

13, Linear transducer control.

14, Multiple options of computer CPU systems.

Product Parameters

Model 700T 900T 1000T
Screw Specifications A B C A B C A B C
Screwdi ameter mm 85 90 100 90 100 110 100 100 120
Screw L/Dratio 22 22 22 22 22 22 22 22 22
Theoretical injection volume cm3 2552 2861 3533 3147 3886 4702 4329 4329 6104
Shot weight (PS) g 2348 2632 3250 2896 3575 4326 3900 3900 5616
injection rate(Ps) g/S 788 883 1091 975 1204 1457 920 920 1325
Injection pressure MPa 209 187 151 214 173 143 204 204 142
Inject on stroke mm 450 495 540
Max. injection speed mm/s 147 146 137
Screw speed r/min 0-180 0-180 0-180
Sys. Pressure MPa 16 16 16
Pump Motor(Min-Max) kW 114 141 151
Displacement ml/r 160+160 125+125+125 160+125+125
number of Motors PC 2 3 3
Heater power kW 52 59 61
Number oftemp. control zones 5+1 5+1
Clamping force kN 7000 9000 10000
Opening stroke mm 1300 1500 1700
Tie bar distance W×L mm*mm 1020x920 1120x1030 1210x1060
Min. mold thickness mm 450 450 500
Max. mold thickness mm 1050 1150 1200
Ejector stroke mm 210 270 300
Ejector force forward kN 113 152 196
Number of ejector bar PC 1+12 1+16 1+16
Oil tank capacity L 1020 1190 1300
Machine dimensions(LxWxH) m*m*m 9.7x2.2x2.4 10.2x2.2x2.5 10.7x2.4x2.8
Machine weight Ton 25 39 44

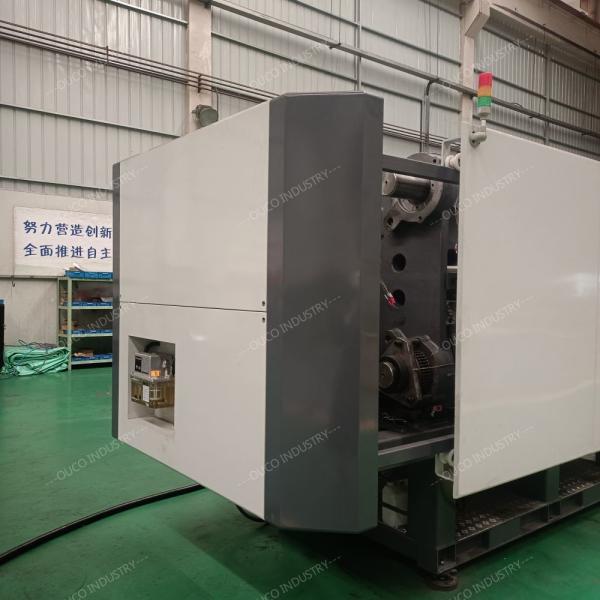

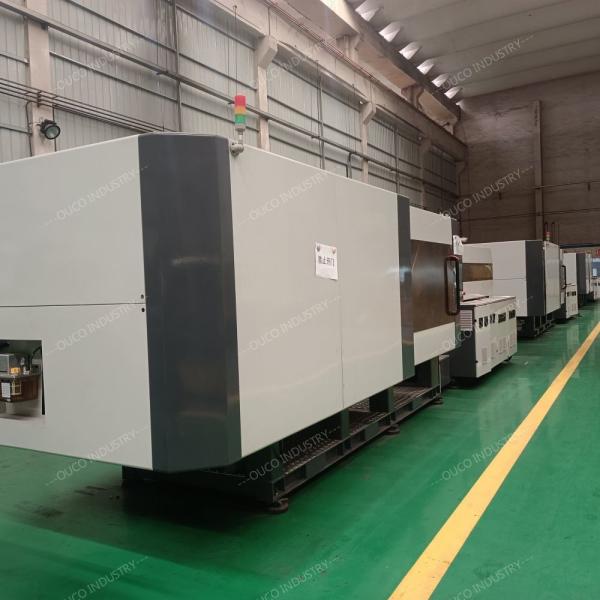

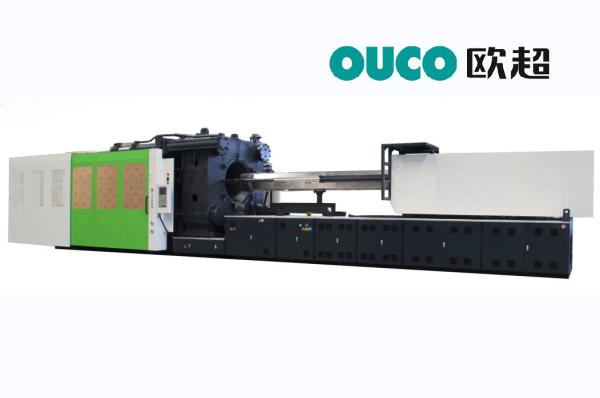

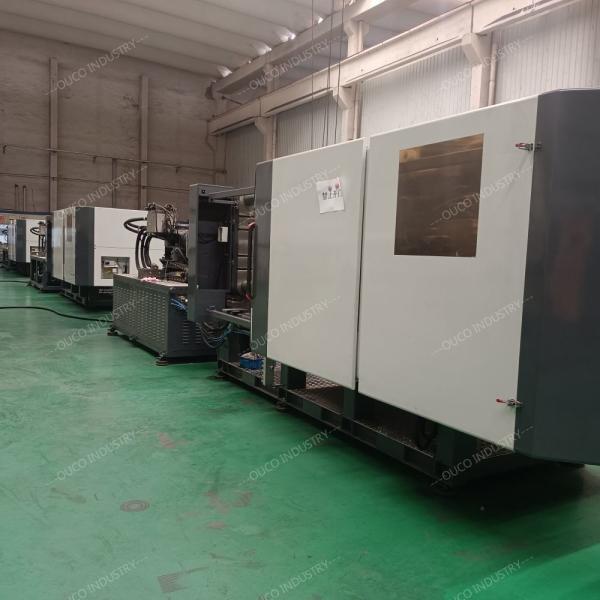

Detailed Pictures
