410 T Optimized Hydraulic Injection Moulding Machine For Home Servo Energy Saving
410 T Optimized Hydraulic Injection Moulding Machine For Home Servo Energy Saving
410 T Optimized Hydraulic Injection Moulding Machine For Home Servo Energy Saving
410 T Optimized Hydraulic Injection Moulding Machine For Home Servo Energy Saving
410 T Optimized Hydraulic Injection Moulding Machine For Home Servo Energy Saving
410 T Optimized Hydraulic Injection Moulding Machine For Home Servo Energy Saving
Specifications
Brand Name :
OUCO
Model Number :
OUCO-410T
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
410 T Optimized Plastic Injection Molding Machine For Home
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

410 T Optimized Plastic Injection Molding Machine For Home

Optimized Functions

OUCO provides small injection molding machines suitable for home use

1.Expanded motor and pump system, optimized hydraulic system for high performance and faster cycles. Like crate (less than 2kg) cycle time 20s;Spray paint bucket (780-800g) cycle time 20s.

2. Specially designed screw and barrel structure for faster plasticization and shorter loading cycle.

Optional bimetallic screw and barrel to be compatible with the recycled material of the box.

3. Optional automation equipment is available to improve production efficiency.

Product Parameters

TECHNICAL PARAMETER TABLE
INJECTION UNIT SCREW DIAMETER mm 90
SCREW L/D RATIO L/D 19
INJECTION CAPACITY IN THEORY cm3 2353
INJECTION WEIGHT(PS) g 2141
INJECTION PRESSURE MPa 135
INJECTION RATE g/s 549
PLASTICIZING CAPACITY g/s 95
SCREW SPEED rpm 196
CLAMPING UNIT CLAMPING FORCE KN 4100
MOVING MOULD-PLATE STROKE mm 710
MAX. MOULD HEIGHT mm 800
MIN. MOULD HEIGHT mm 280
SPACE BWTWEEN TIE-BARS (W×H) mm 770x720
HYDRAULIC EJECTOR FORCE mm 125
HYDRAULIC EJECTOR STROKE KN 180
EJECTOR NUMBER n 13
OTHERS PUMP PRESSURE MPa 16
MOTOR /DRIVING POWER KW 45
HEATING CAPACITY KW 25
MACHINE DIMENSION (L×W×H) m 7.7*1.96*2.35
MACHINE WEIGHT t 14
OIL TANK CAPACITY L 680

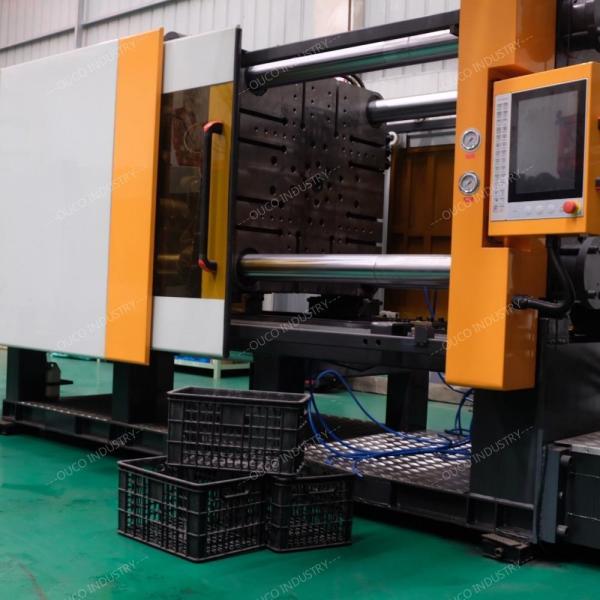

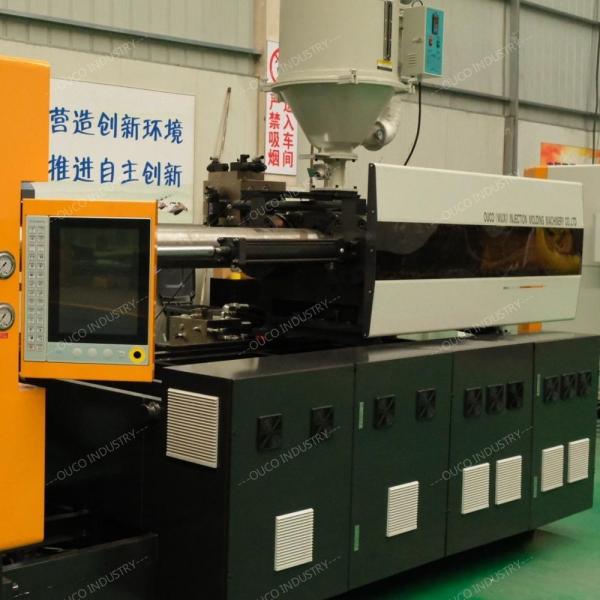

Detail Pictures

410 T Optimized Hydraulic Injection Moulding Machine For Home Servo Energy Saving

410 T Optimized Hydraulic Injection Moulding Machine For Home Servo Energy Saving

410 T Optimized Hydraulic Injection Moulding Machine For Home Servo Energy Saving410 T Optimized Hydraulic Injection Moulding Machine For Home Servo Energy Saving
