Effective Bucket Injection Moulding Machine Plastic Injection Molding Machine
Effective Bucket Injection Moulding Machine Plastic Injection Molding Machine
Effective Bucket Injection Moulding Machine Plastic Injection Molding Machine
Effective Bucket Injection Moulding Machine Plastic Injection Molding Machine
Effective Bucket Injection Moulding Machine Plastic Injection Molding Machine
Effective Bucket Injection Moulding Machine Plastic Injection Molding Machine
Effective Bucket Injection Moulding Machine Plastic Injection Molding Machine
Effective Bucket Injection Moulding Machine Plastic Injection Molding Machine
Effective Bucket Injection Moulding Machine Plastic Injection Molding Machine
Effective Bucket Injection Moulding Machine Plastic Injection Molding Machine
Specifications
Brand Name :
OUCO
Model Number :
OUCO-HS-500T/650T
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
Cost-Effective Yet Reliable Fruit Plastic Basket Injection Molding Machine
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

Cost-effective Yet Reliable Fruit Plastic Basket Injection Molding Machine

The series hybrid injection molding machine is based on all-electric injection molding machine (injection rate: 500mm/s; put into production in 2009) and high-speed machine (put into production in 2012). It combines with the clamping parts of the high-speed machine and the injection parts of the all-electric machine, taking into account the need for energy saving and environmental protection. It meets the requirements of this product for large clamping force and high performance injection unit. (Mold opening and filling are performed simultaneously.)
Product Description
1. Modular injection unit with excellent acceleration performance
2. High-speed machine tool high stiffness clamping unit.
3. High response and low noise hydraulic system.
4. Optimized control system with good response and accuracy for hybrid motors

Product Parameters

Model 500T 600T 70 0T
A B C A B C A B C
Screwdi ameter mm 70 75 85 75 85 90 85 90 100
Screw L/Dratio 22 22 22 22 22 22 22 22 22
Theoretical injection volume cm3 1481 1700 2184 1788 2297 2575 2552 2861 3533
Shot weight (PS) g 1377 1581 2031 1645 2113 2369 2348 2632 3250
injection rate(Ps) g/S G03 693 890 G13 788 884 788 883 1091
Injection pressure MPa 209 182 142 204 159 142 209 187 151
Inject on stroke mm 385 405 450
Max. injection speed mm/s 166 157 147
Screw speed r/min 0-200 0-200 0-180
Sys. Pressure MPa 16 16 16
Pump Motor(Min-Max) kW 94 101 114
Displacement ml/r 125+125 160+125 160+160
number of Motors PC 2 2 2
Heater power kW 41 47 52
Number oftemp. control zones 5+1 5+1 5+1
Clamping force kN 5000 6000 7000
Opening stroke mm 1000 1150 1300
Tie bar distance W×L mmxmm 860x760 960x860 1020x920
Min. mold thickness mm 300 350 450
Max. mold thickness mm 800 920 1050
Ejector stroke mm 210 210 210
Ejector force forward kN 110 113 113
Number of ejector bar PC 1+12 1+12 1+12
Oil tank capacity L 850 940 1020
Machine dimensions(LxWxH) mxmxm 87x2.0x2.1 9.3x2.1x2.3 9.7x2.2x2.4
Machine weight Ton 19 23 25

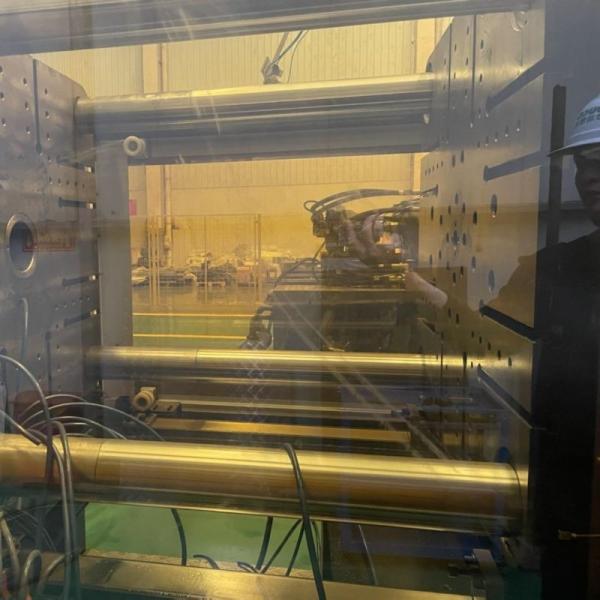

Detail Pictures

Effective Bucket Injection Moulding Machine Plastic Injection Molding Machine

Effective Bucket Injection Moulding Machine Plastic Injection Molding Machine

Company Profile

Effective Bucket Injection Moulding Machine Plastic Injection Molding Machine

Effective Bucket Injection Moulding Machine Plastic Injection Molding Machine

Effective Bucket Injection Moulding Machine Plastic Injection Molding Machine
