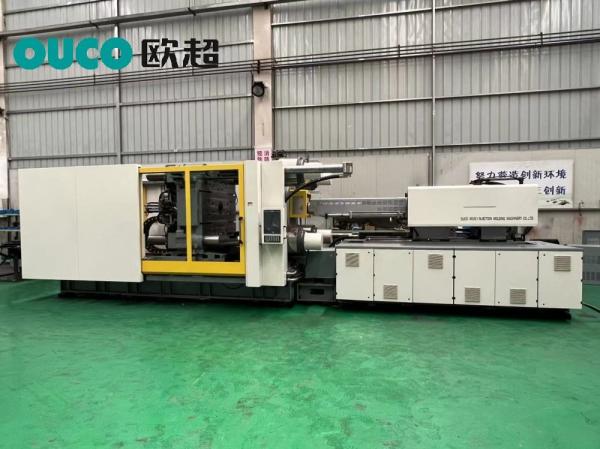

630 Ton Hybrid PVC Injection Molding Machine Recyclable Material
630 Ton Hybrid PVC Injection Molding Machine Recyclable Material
630 Ton Hybrid PVC Injection Molding Machine Recyclable Material
630 Ton Hybrid PVC Injection Molding Machine Recyclable Material
630 Ton Hybrid PVC Injection Molding Machine Recyclable Material
630 Ton Hybrid PVC Injection Molding Machine Recyclable Material
630 Ton Hybrid PVC Injection Molding Machine Recyclable Material
630 Ton Hybrid PVC Injection Molding Machine Recyclable Material
Specifications
Brand Name :
OUCO
Model Number :
OUCO-PV630T
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
Wuxi,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
630 Ton Hybrid High-speed PVC Injection Molding Machine For Recyclable Material
Plastic Processed :
PP,PC,PVC
Applicable :
Manufacturing Plant,Food&Beverage
Type :
Automation
Warranty :
1 Year
Machinery :
Provided
Selling Points :
Competitive Price
Video Outgoing-inspection :
Provided
Machine Style :
Horizontal
Condition :
New
Lead Time :
About 50 Days
Description

630 Ton Hybrid High-speed PVC Injection Molding Machine For Recyclable Material

Product Details
1. PVC material with special screw + barrel design and added fan for cooling barrel to avoid material overheating and coking;

2. Add a larger grade of oil motor to facilitate the plasticization and molding of PVC material;

3. Extended security door width for better installation of PVC parts molds, suitable for easy installation of PVC parts molds (core extraction barrels);

4. Provide special technical solutions for PVC injection molding, not only for the modification of screw and barrel, but also for the complete hydraulic system and special solutions for injection device.

Product Paraments

TECHNICAL PARAMETER TABLE
Injection Unit
Screw diameter mm 80
Screw L/D ratio L/D 21.3
Injection capacity in theory cm³ 2110
Injection weight(PVC) g 2532
Injection pressure MPa 168
Injection rate g/s 558
Plasticizing capacity g/s 74
Screw speed rpm 130
Clamping Unit
Clamping force KN 6300
Moving mould-plate stroke mm 870
Max.Mould height mm 900
Min.Mould height mm 350
Space between tie-bars mm 900x850
Hydraulic ejector force KN 200
Hydraulic ejector stroke mm 260
Ejector number n 17
Other
Pump pressure MPa 16
Motor/Driving power KW 30x2
Heating capacity KW 28.85
Machine dimension m 9.22x2.87x2.61
Machine weight t 28.2
Oil tank capacity L 1156

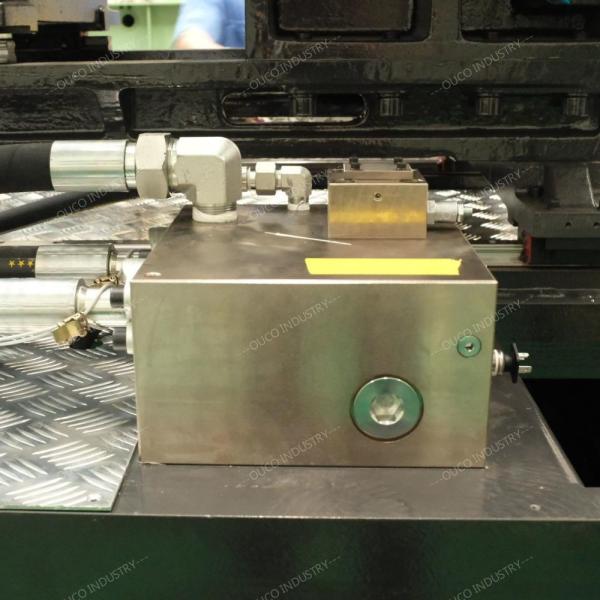

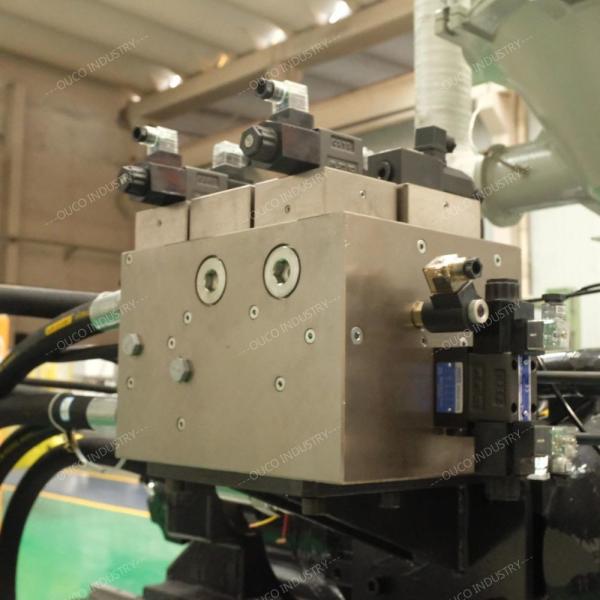

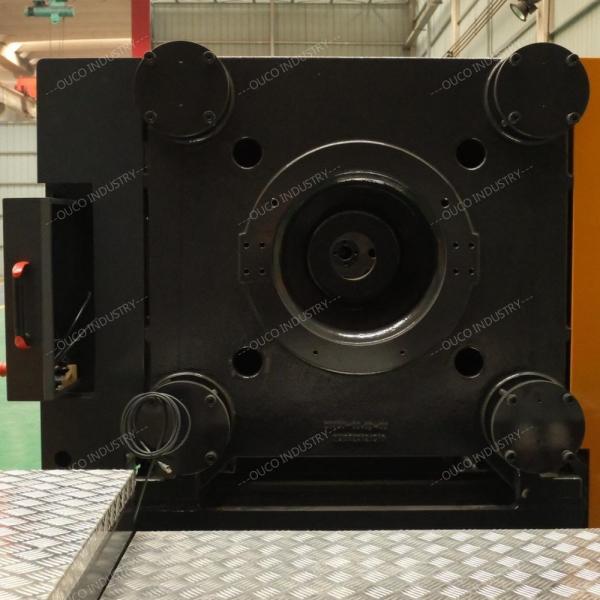

Detail Pictures

630 Ton Hybrid PVC Injection Molding Machine Recyclable Material

630 Ton Hybrid PVC Injection Molding Machine Recyclable Material

630 Ton Hybrid PVC Injection Molding Machine Recyclable Material

630 Ton Hybrid PVC Injection Molding Machine Recyclable Material
